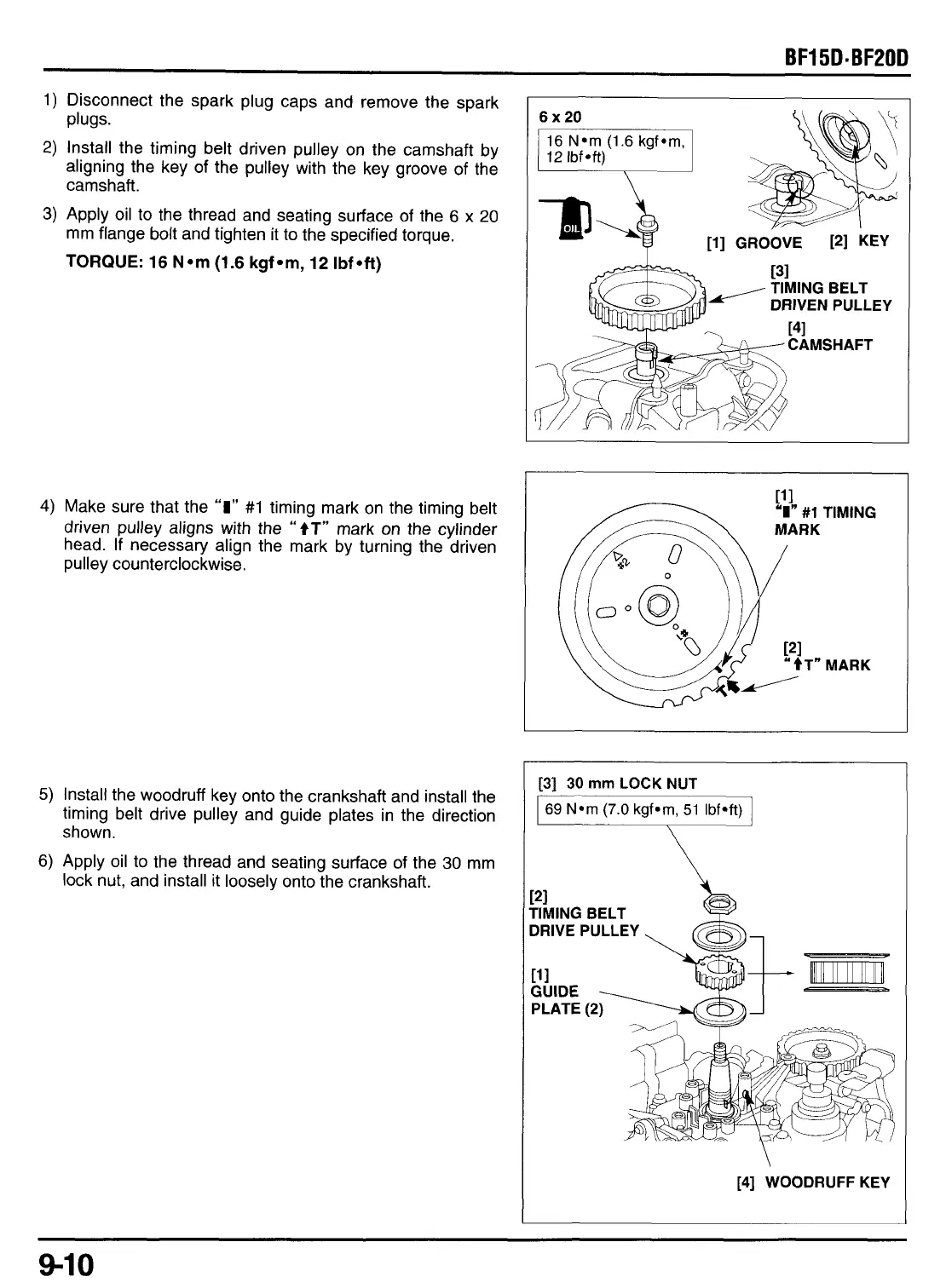

BF15DmBF20D
1)
Disconnect the spark plug caps and remove the spark
2)
Install the timing belt driven pulley on the camshaft by
aligning the key of the pulley with the key groove of the
camshaft.
3)
Apply oil to the thread and seating surface of the 6
x
20
mm flange bolt and tighten it to the specified torque.
TORQUE:
16
N*m
(1.6
kgfom,
12
Ibfoft)
plugs.
4)
Make sure that the
“I”
#1
timing mark on the timing belt
driven pulley aligns with the
‘‘
+T”
mark on the cylinder
head.
If
necessary align the mark by turning the driven
pulley counterclockwise.
5)
Install the woodruff key onto the crankshaft and install the
timing belt drive pulley and guide plates in the direction
shown.
6)
Apply oil to the thread and seating surface of the
30
mm
lock nut, and install it loosely onto the crankshaft.
16 N-m (1.6 kgf-m,
12
Ibf-ft)
[l]
GROOVE 121 KEY
DRIVEN PULLEY
[3]
30
mm
LOCK
NUT
69
N-m
(7.0
kgf-m, 51
Ibf-ft)
w
[21
TIMING BELT
DRIVE PULLEY
[4] WOODRUFF KEY
