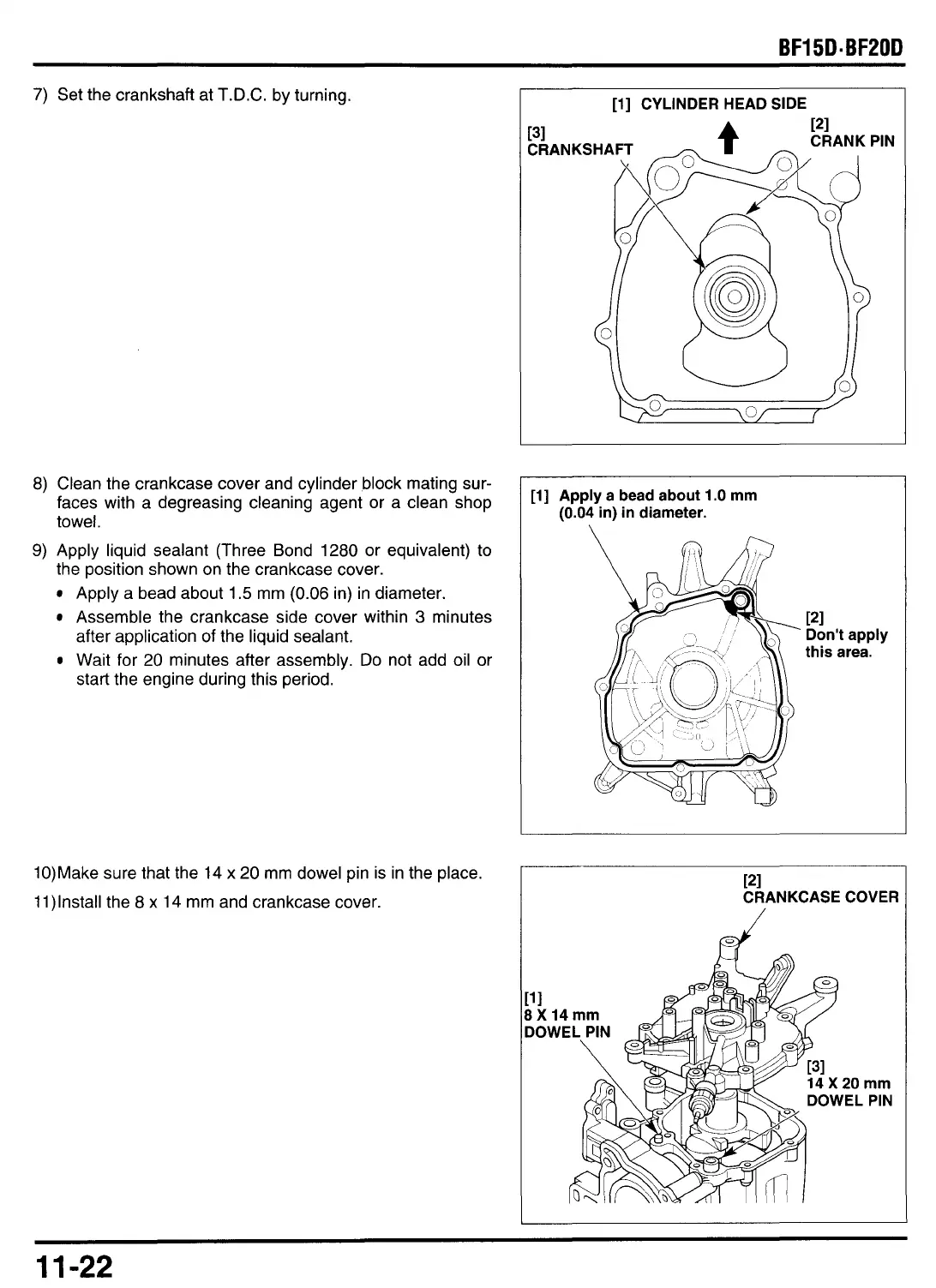

Set the crankshaft at T.D.C. by turning
8) Clean the crankcase cover and cylinder block mating sur-
faces with a degreasing cleaning agent or a clean shop
towel.
9)
Apply liquid sealant (Three Bond 1280 or equivalent) to
the position shown on the crankcase cover.
Apply a bead about
1.5
mm
(0.06
in) in diameter.
Assemble the crankcase side cover within
3
minutes
after application
of
the liquid sealant.
Wait for
20
minutes after assembly.
Do
not add oil or
start the engine during this period.
10)Make sure that the 14
x
20 mm dowel pin is in the place.
1l)lnstall the 8
x
14 mm and crankcase cover.
I
[l]
CYLINDER HEAD SIDE
[l]
Apply a bead about
1
.O
mm
(0.04
in) in diameter.
\
PI
Don't apply
this area.
121
CRANKCASE COVER
11
-22
