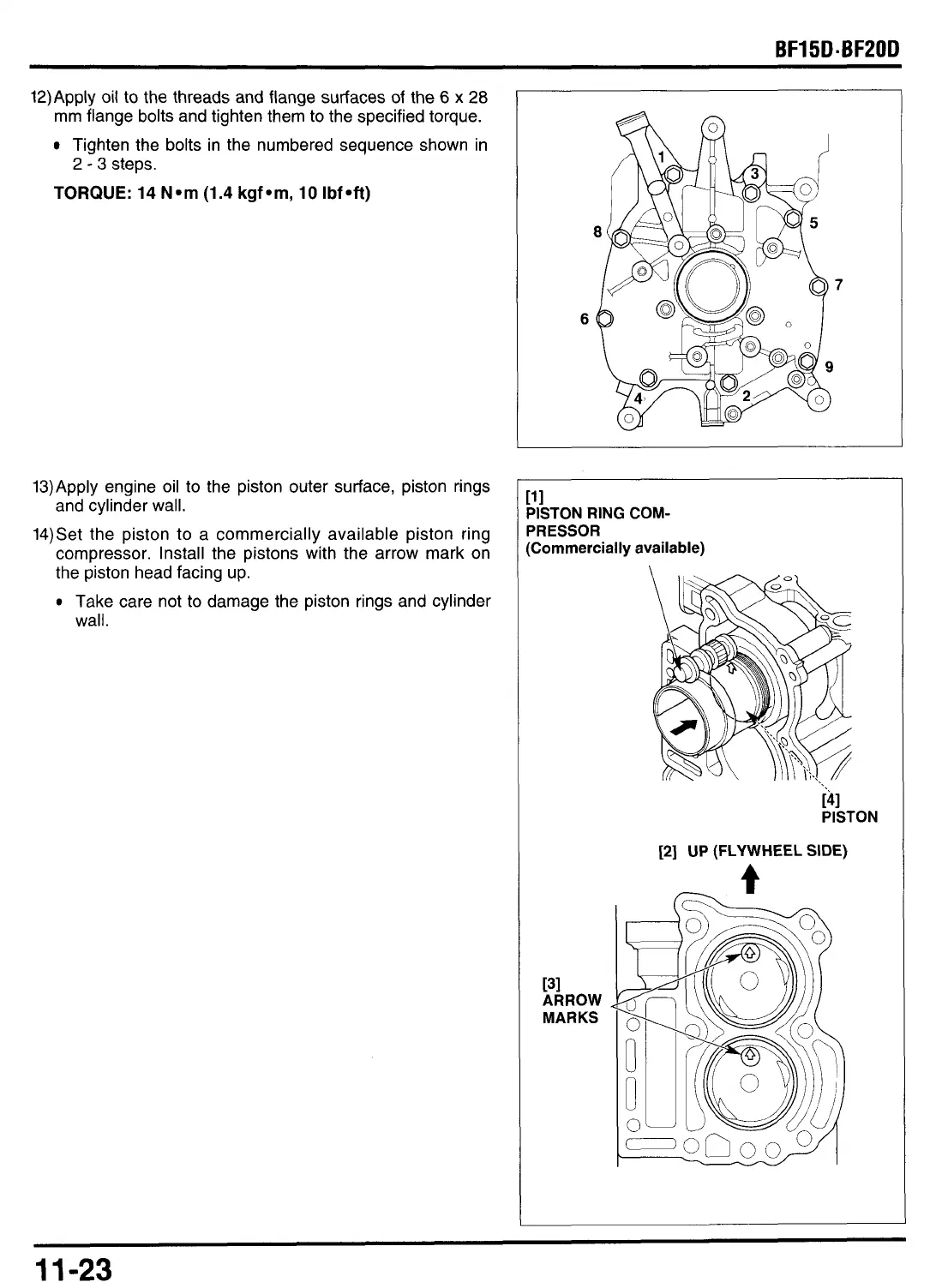

12)Apply oil to the threads and flange surfaces
of
the
6
x
28
mm flange bolts and tighten them to the specified torque.
Tighten the bolts in the numbered sequence shown in
2
-
3
steps.
TORQUE:
14 Nmm (1.4 kgfmm, 10 Ibfmft)
13)Apply engine oil
to
the piston outer surface, piston rings
and cylinder wall.
14 Set the piston
to
a commercially available piston ring
compressor. Install the pistons with the arrow mark on
the piston head facing up.
Take care not
to
damage the piston rings and cylinder
wall.
PI
PISTON RING
COM-
PRESSOR
(Commercially available)
(41
PISTON
[2]
UP
(FLYWHEEL
SIDE)
131
ARROW
MARKS
