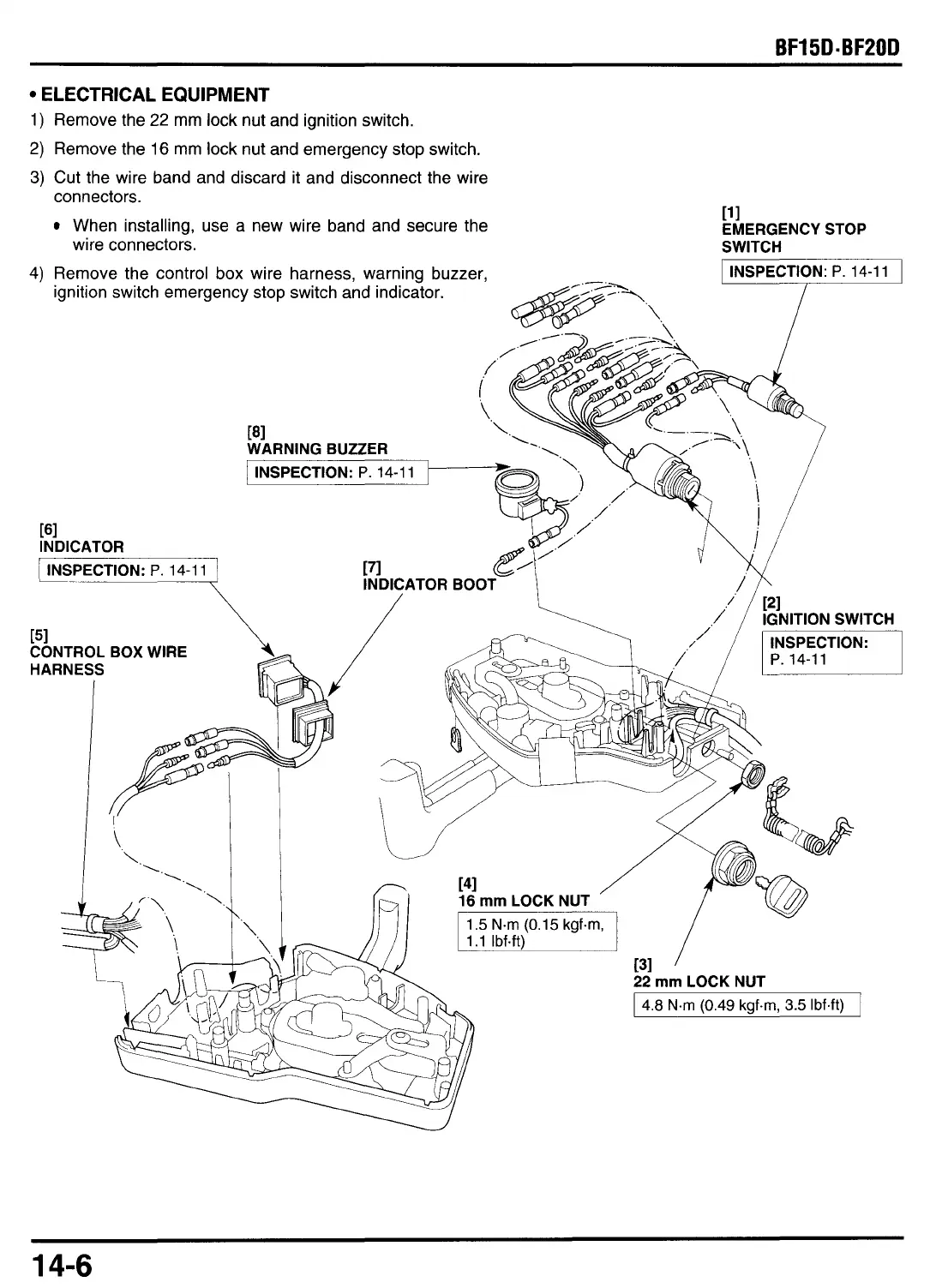

ELECTRICAL EQUIPMENT
Remove the
22
mm lock nut and ignition switch.
Remove the
16
mm lock nut and emergency
stop
switch.
Cut the wire band and discard it and disconnect the wire
connectors.
When installing, use a new wire band and secure the
wire connectors.
[11
EMERGENCY STOP
SWITCH
INSPECTION:
P.
14-1
1
r
Remove the control box wire harness, warning buzzer,
ignition switch emergency
stop
switch and indicator.
\.,
161
INDICATOR
i
INSPECTION:
P.
14-1
1
I
[81
WARNING BUZZER
171
INDICATOR BOOT
[51
CONTROL BOX
WIRE
HARNESS
4.8
N.m
(0.49
kgf.m,
3.5
Ibf.ft)
14-6
