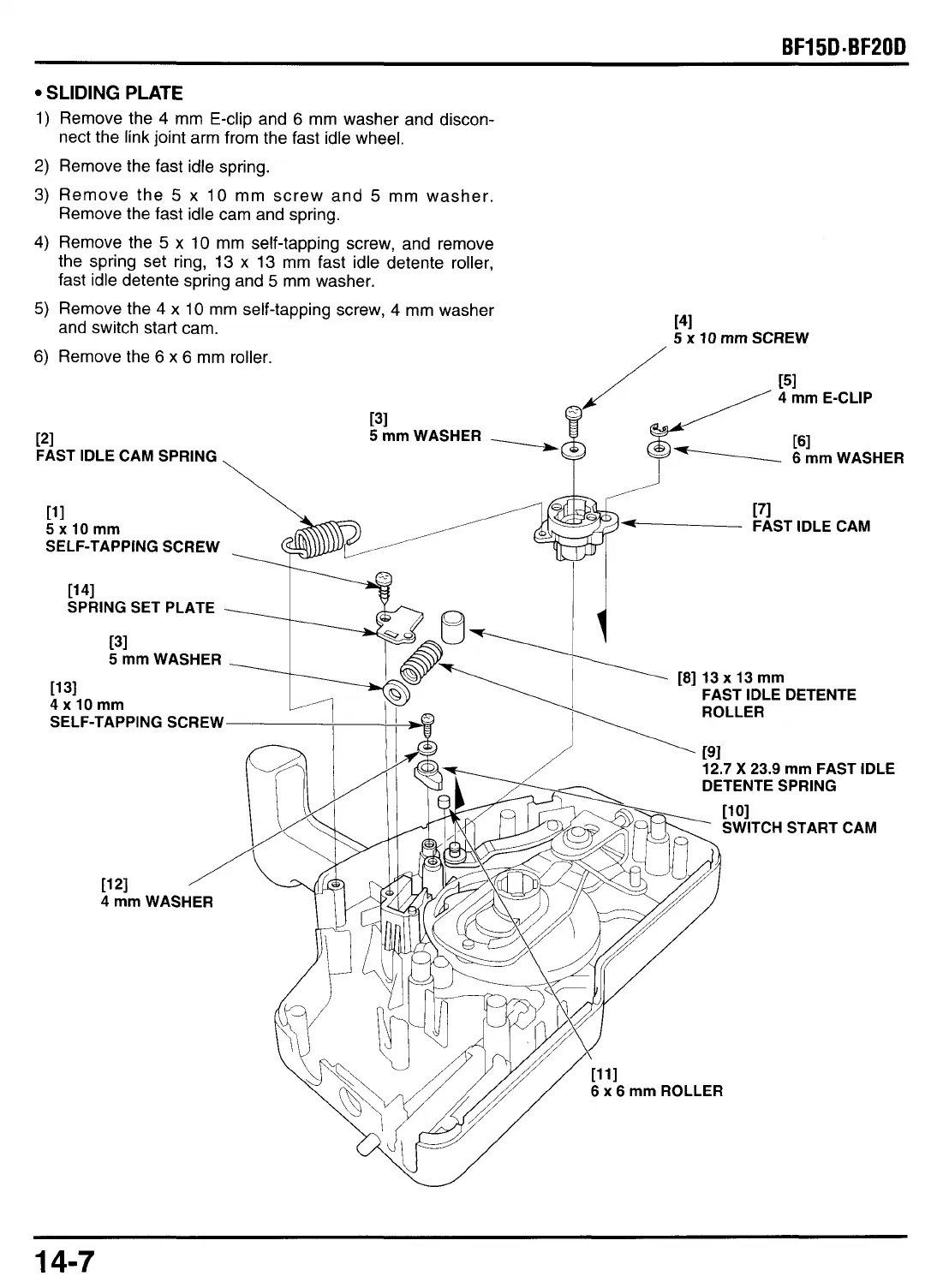

SLIDING
PLATE
Remove the
4
mm E-clip and
6
mm washer and discon-
nect the link joint arm from the fast idle wheel.
Remove the fast idle spring.
Remove the
5
x
10 mm screw and
5
mm washer.
Remove the fast idle cam and spring.
Remove the
5
x
10 mm self-tapping screw, and remove
the spring set ring, 13
x
13 mm fast idle detente roller,
fast idle detente spring and
5
mm washer.
Remove the
4
x
10 mm self-tapping screw,
4
mm washer
and switch start cam.
141
5
x
10
mm SCREW
Remove the
6
x
6
mm roller.
161
5
mm WASHER
~
121
FAST IDLE CAM SPRING
6 mm WASHER
f-------_
FAST
IDLE
CAM
11
1
SELF-TAPPING SCREW
5xlOmm
~41
SPRING SET PLATE
[31
5
mm WASHER
11 31 FAST IDLE DETENTE
4xlOmm
SELF-TAPPING SCREW
.7
X
23.9 mm FAST IDLE
ETENTE SPRING
SWITCH START CAM
[I21
4
mm WAS
6 x 6 mm ROLLER
14-7
