BF15DmBF20D

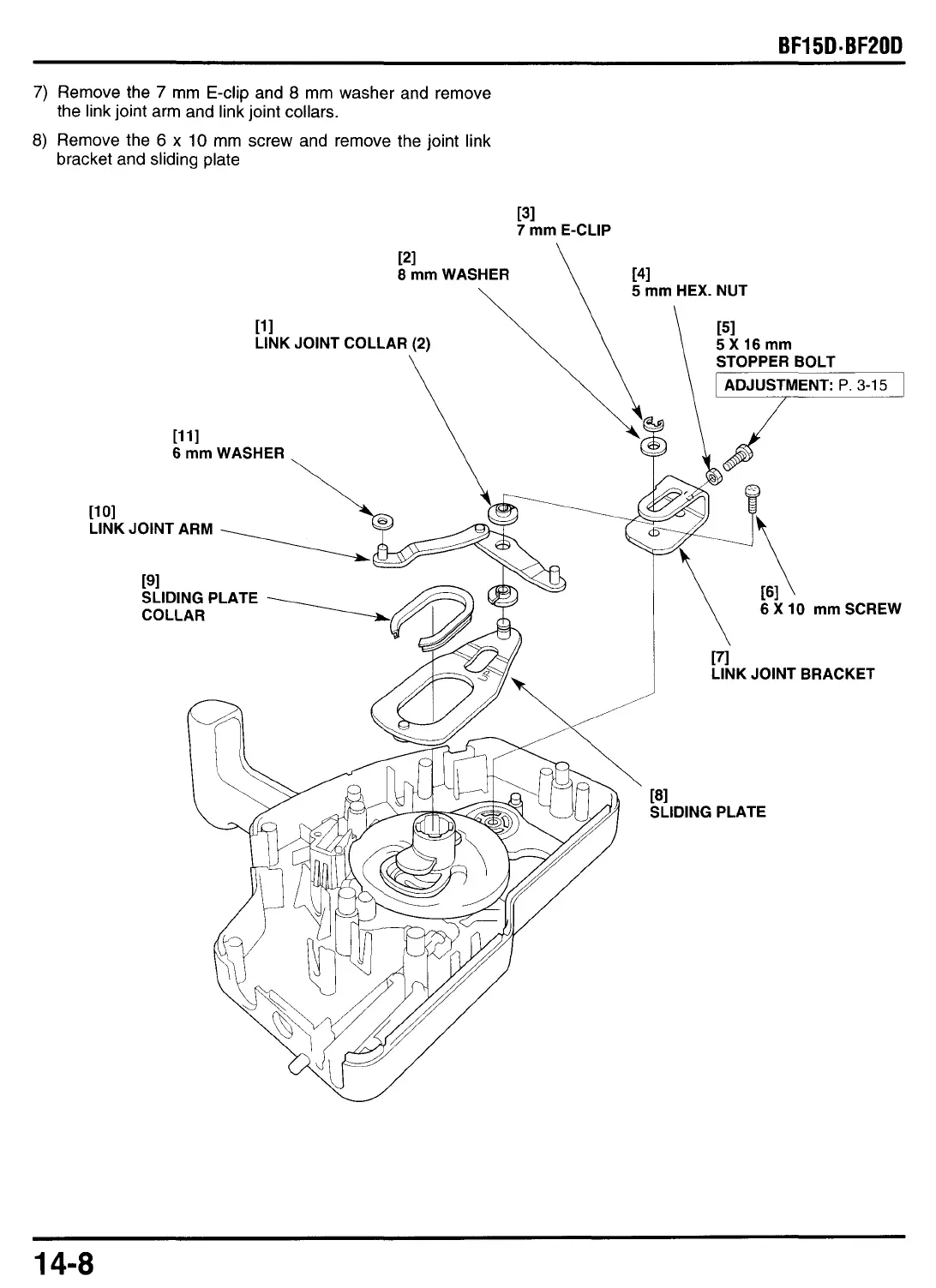

7) Remove the 7 mm E-clip and 8 mm washer and remove
8) Remove the 6 x 10 mm screw and remove the joint link
the link joint arm and link joint collars.
bracket and sliding plate
131
7 mm E-CLIP
11 01
LINK
PI
8 mm WASHER
\
\ \
11 1
LINK JOINT COLLAR (2)
\
141
5 mm HEX. NUT
STOPPER BOLT
14-8
