Honda BF15D - Page 243

BF15DSBF20D

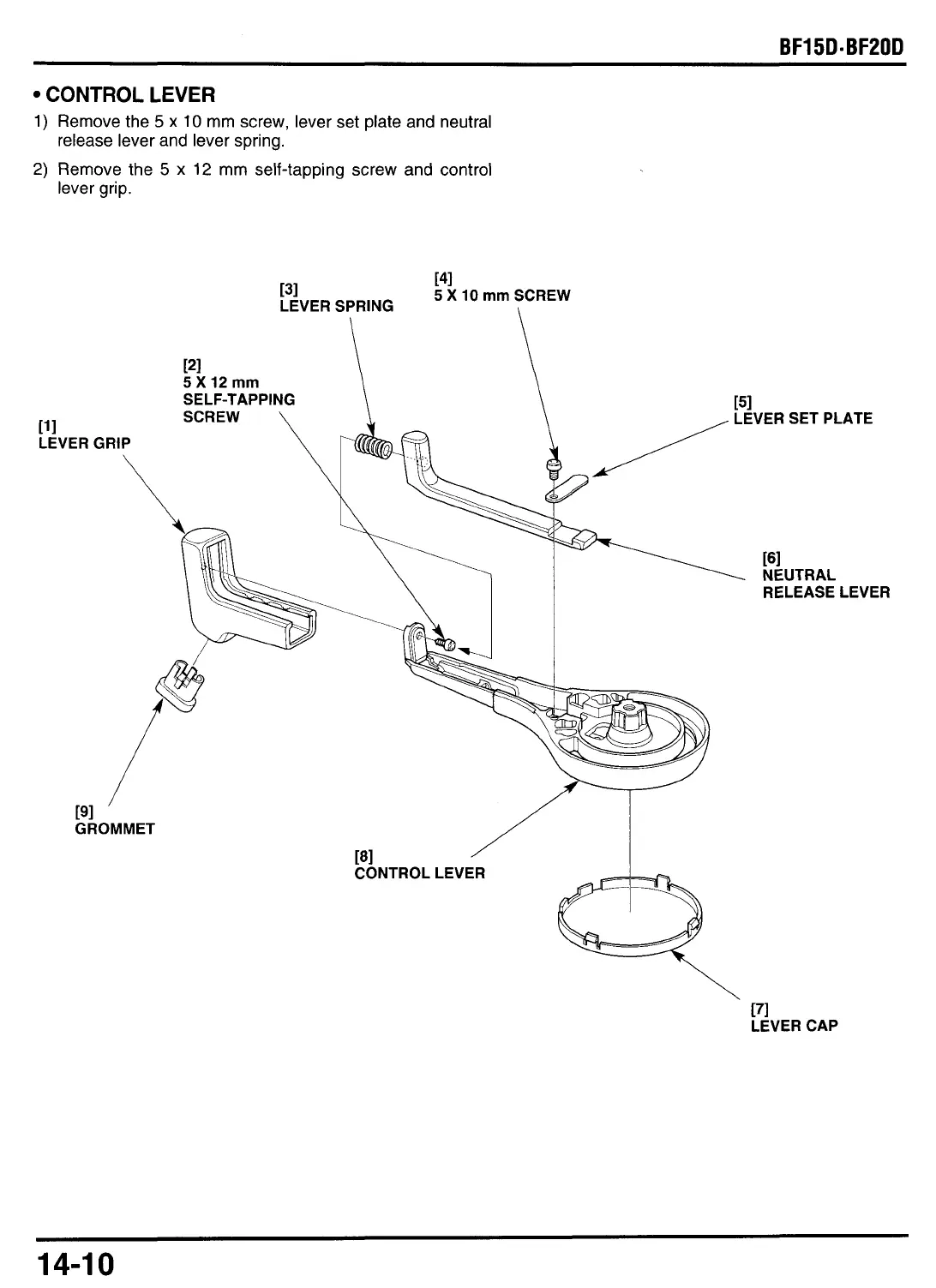

CONTROL LEVER
1) Remove the 5 x 10 mm screw, lever set plate and neutral
2) Remove the 5 x 12 mm self-tapping screw and control
release lever and lever spring.
lever grip.
[41
[31
LEVER SPRING
5 X 10 mm SCREW
RELEASELEVER
[71
LEVER CAP
14-1 0
