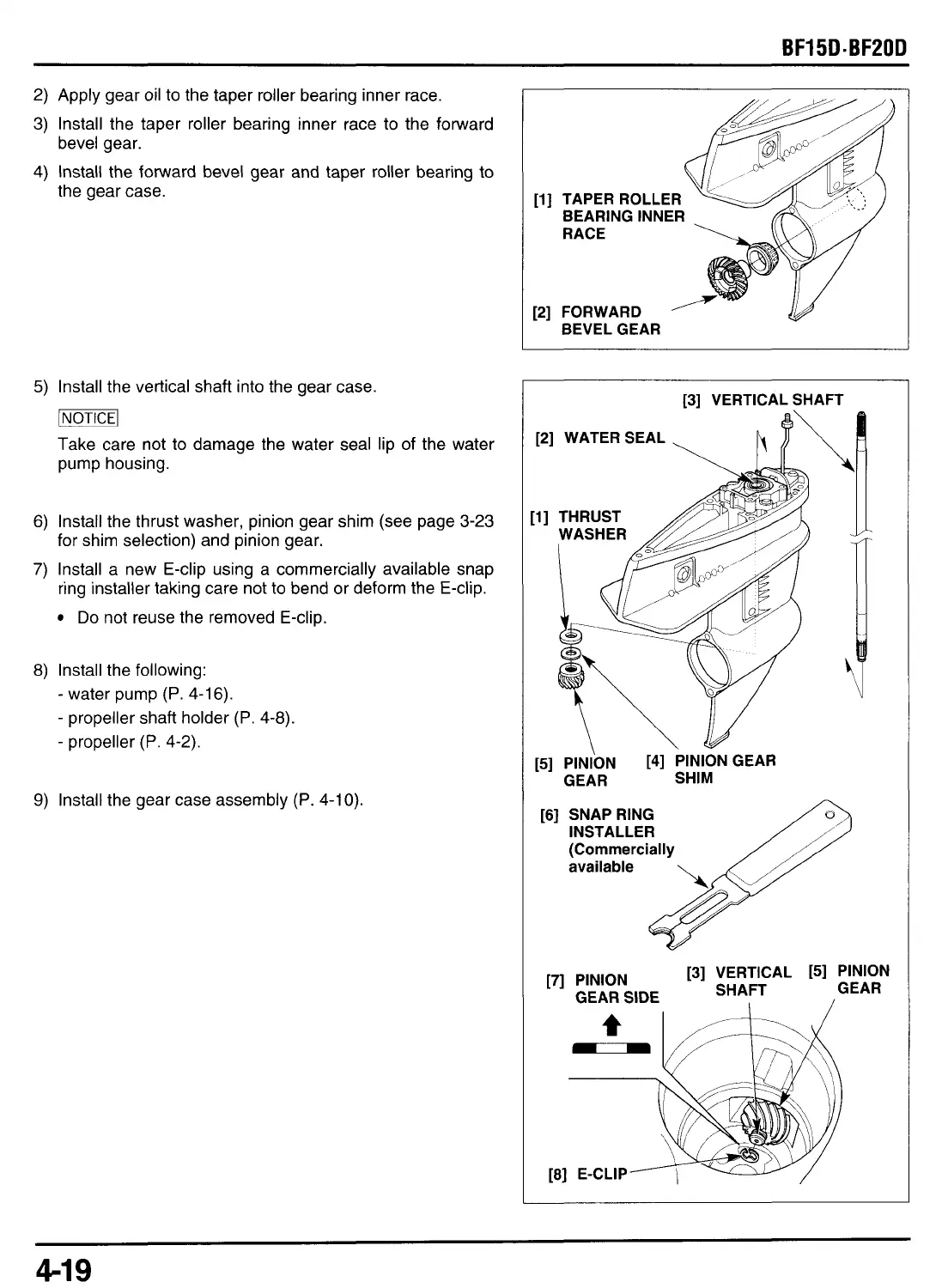

BF15D-BF20D
2) Apply gear oil to the taper roller bearing inner race.
3) Install the taper roller bearing inner race to the forward
4) Install the forward bevel gear and taper roller bearing
to
bevel gear.
the gear case.
5) Install the vertical shaft into the gear case.
Take care not
to damage the water seal lip of the water
pump housing.
6) Install the thrust washer, pinion gear shim (see page 3-23
7) Install a new E-clip using a commercially available snap
for shim selection) and pinion gear.
ring installer taking care not
to bend or deform the E-clip.
Do not reuse the removed E-clip.
8) Install the following:
-water pump
(P. 4-16).
- propeller shaft holder (P. 4-8).
- propeller (P. 4-2).
9) Install the gear case assembly (P. 4-10).
[l] TAPER ROLLER
BEARING INNER
RACE
[2] FORWARD
I ~ ~ BEVELGEAR
[3] VERTICAL SHAFT
[5] PlNlbN 141 PINION GEAR
GEAR SHIM
[6] SNAP RING
INSTALLER
(Commercially
available
[3] VERTICAL 151 PINION
I /
SHAFT GEAR
[7] PINION
GEAR SIDE
4-1 9
