Honeywell 3820 User Manual

8 - 2

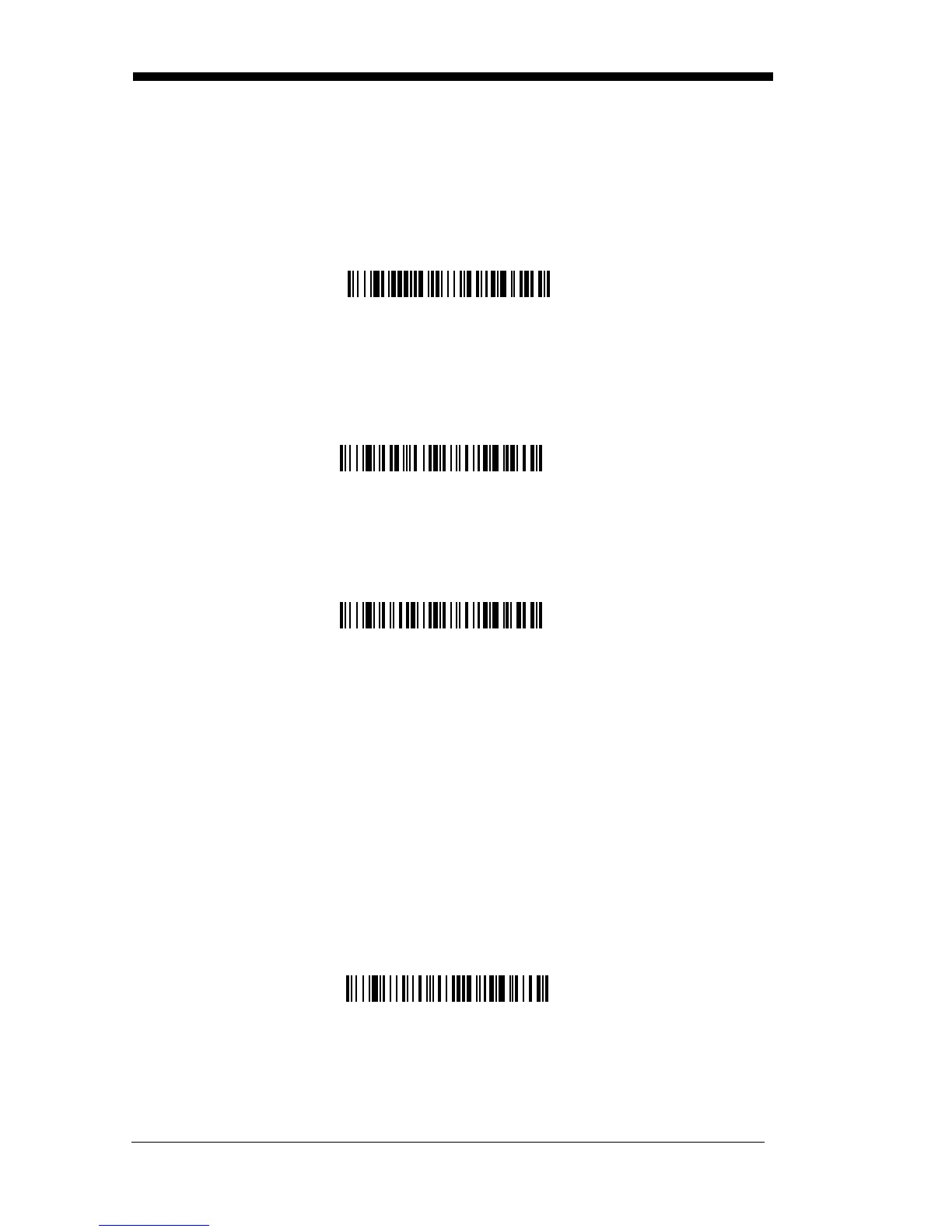

Image Scanner Report
Scan the barcode below to generate a report for the connected image scan-
ners. The report indicates the port, work group, image scanner name, and
address. To assign a name to your image scanner, refer to "Menu Command
Syntax" on page 10-1.
Image Scanner Address
Scan the barcode below to determine the address of the image scanner you are
using.
Base Address
Scan the barcode below to determine the address of the base you are using.
Resetting the Standard Product Default Settings:
Current Application Work Group
If you aren’t sure what programming options are in your image scanner, or
you’ve changed some options and want the standard product default settings
restored, scan the
Standard Product Default Settings: Current Application
Group barcode below.
The Menu Commands starting on page 10-6 list the factory default settings for
each of the commands (indicated by an asterisk (*) on the programming pages).
Note: Scanning this barcode also causes both the image scanner and the base
to perform a reset and become unlinked. Refer to "Image Scanner
Modes" on page 1-5 for additional information.
Image Scanner Report
Image Scanner Address
Base Address
Standard Product Default Settings:
Current Application Group

Honeywell 3820 Specifications

General

Type	Handheld bar code reader
Sensor type	CCD
Scanner type	1D/2D
Read rate (max)	270 reads/s
Maximum scan width	610 mm
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	5
Light levels (direct sunlight)	0 - 70000 lx
Linear (1D) barcodes supported	CPC Binary, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ITF-14, JAN, MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	Codablock, Code 16K, Code 49, Composite Codes, Data Matrix, PDF417
Battery life	16 h
Charging time	4 h
Input voltage	12 V
Battery voltage	3.7 V
Battery capacity	1800 mAh
Power consumption	852 mA
Power source type	Battery, DC
Number of reads per charge	57000
Power consumption (standby)	1.2 W
Power consumption (typical)	9.9 W
Number of batteries supported	1
USB version	2.0
PC connection	USB 2.0
Wireless range	10 m
Bluetooth version	2.0+EDR
Connectivity technology	Wireless
Product color	Gray
Housing material	Plastic
Protection features	Dust resistant, Water resistant
Programming function	Yes
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	165 mm
Width	81 mm
Height	157 mm
Weight	261 g
