Honeywell 3820 User Manual

1 - 22
Wand Emulation Plug & Play
In Wand Emulation mode, the image scanner decodes the barcode then sends
data in the same format as a wand scanner. The Code 39 Format converts all
symbologies to Code 39.
The Same Code Format transmits UPC, EAN, Code 128 and Interleaved 2 of 5
without any changes, but converts all other symbologies to Code 39.
The
Wand Emulation Plug & Play Code 39 Format barcode below sets the
terminal ID to 61. The
Wand Emulation Plug & Play Same Code Format bar-
code sets the terminal ID to 64. These Plug & Play barcodes also set the Trans-
mission Rate to 25 inches per second, Output Polarity to black high, and Idle
State to high. (If you want to change the terminal ID
only , without changing any
other image scanner settings, please refer to Terminal ID on page 2-1.)
IBM 4683 Ports 5B, 9B, and 17 Interface

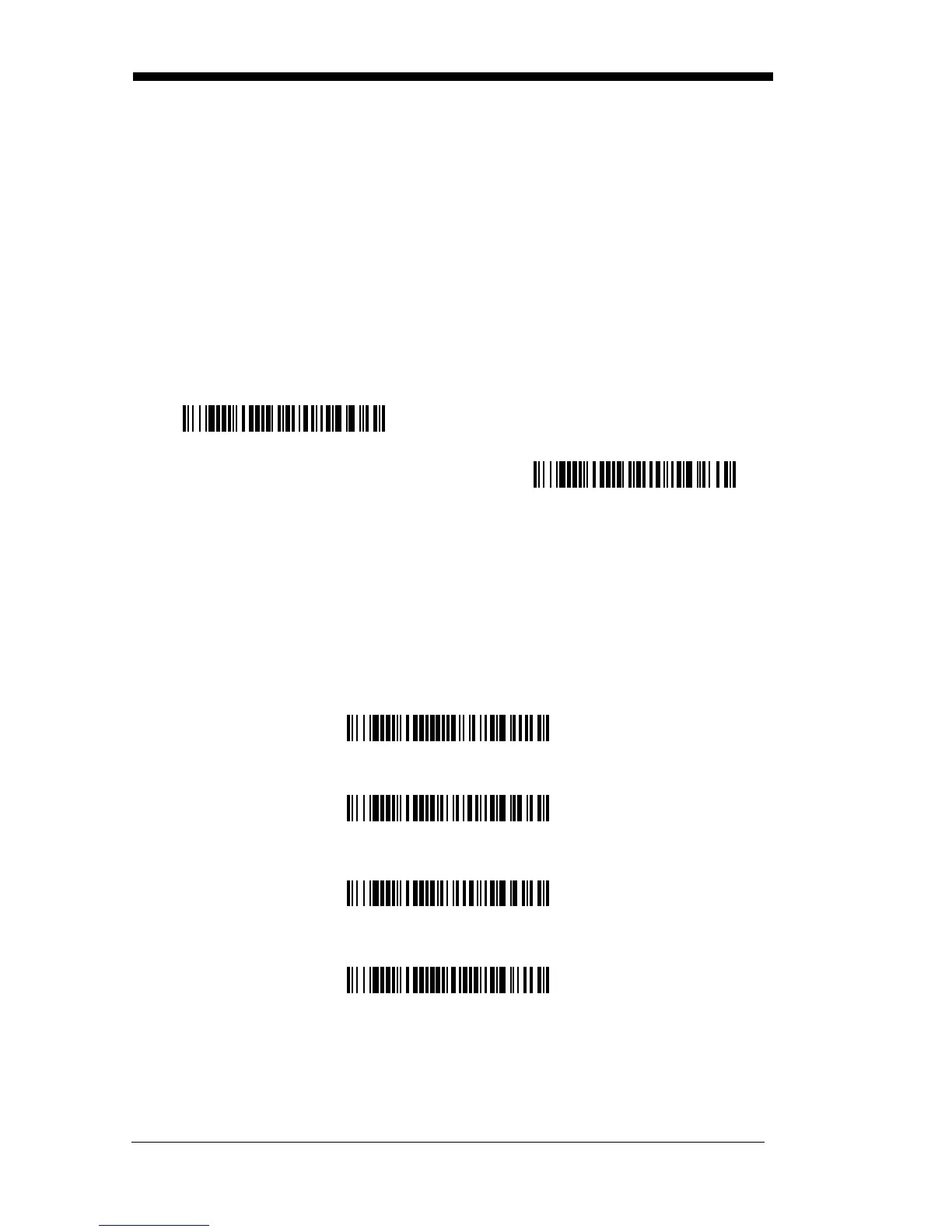

Scan one of the following “Plug and Play” codes to program the 3820/3820i for
IBM 4683 Port 5B, 9B, or 17.
Note: After scanning one of these codes, you must power cycle the cash
register.
Wand Emulation Same Code
Wand Emulation (Code 39 Format)
IBM 4683 Port 5B Interface
IBM 4683 Port 9B HHBCR-1 Interface
IBM 4683 Port 17 Interface
IBM 4683 Port 9B HHBCR-2 Interface

Honeywell 3820 Specifications

General

Type	Handheld bar code reader
Sensor type	CCD
Scanner type	1D/2D
Read rate (max)	270 reads/s
Maximum scan width	610 mm
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	5
Light levels (direct sunlight)	0 - 70000 lx
Linear (1D) barcodes supported	CPC Binary, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ITF-14, JAN, MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	Codablock, Code 16K, Code 49, Composite Codes, Data Matrix, PDF417
Battery life	16 h
Charging time	4 h
Input voltage	12 V
Battery voltage	3.7 V
Battery capacity	1800 mAh
Power consumption	852 mA
Power source type	Battery, DC
Number of reads per charge	57000
Power consumption (standby)	1.2 W
Power consumption (typical)	9.9 W
Number of batteries supported	1
USB version	2.0
PC connection	USB 2.0
Wireless range	10 m
Bluetooth version	2.0+EDR
Connectivity technology	Wireless
Product color	Gray
Housing material	Plastic
Protection features	Dust resistant, Water resistant
Programming function	Yes
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	165 mm
Width	81 mm
Height	157 mm
Weight	261 g
