Image Scanner Report

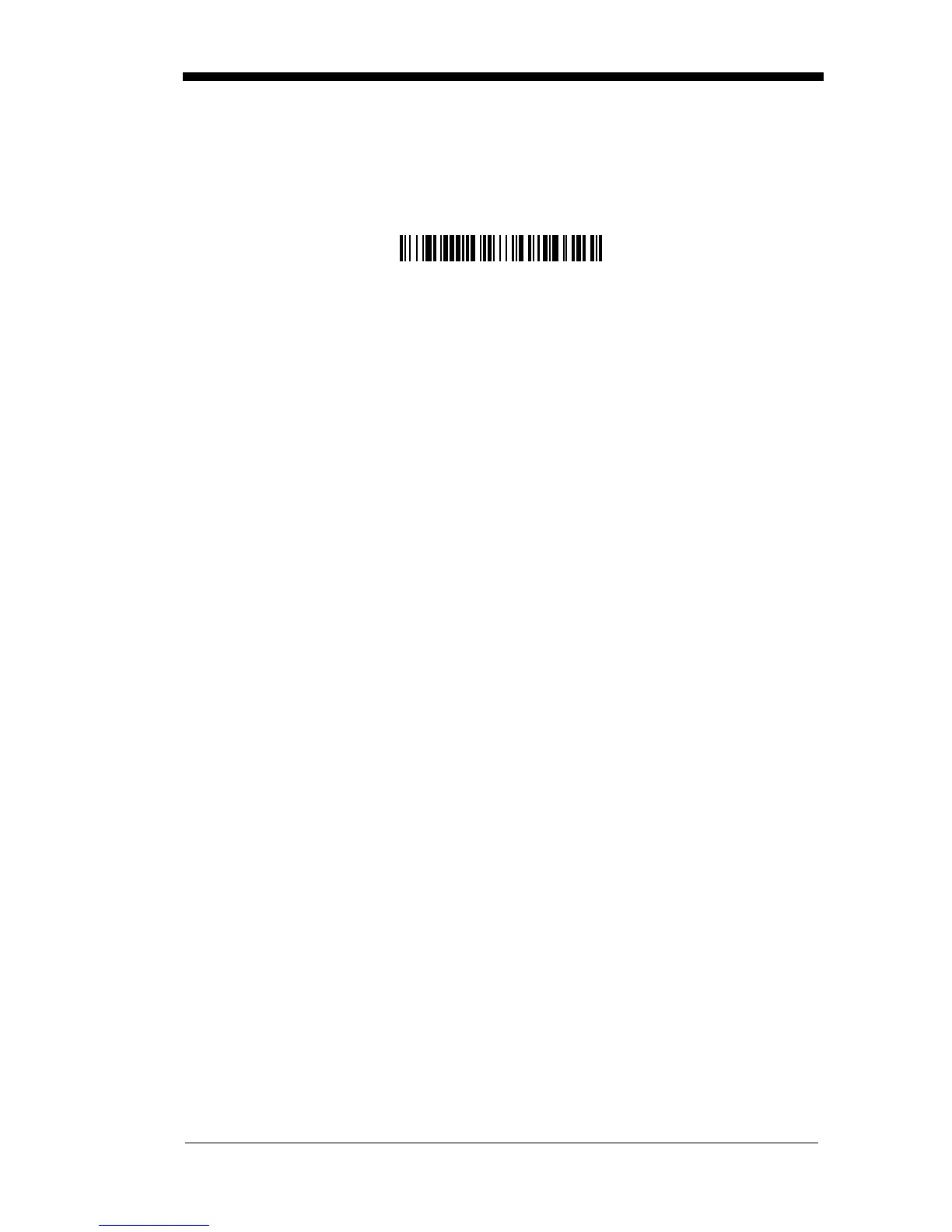

Scan the barcode below to generate a report for the connected image scanners.
The report indicates the port, work group, image scanner name, and address.
Application Work Groups
Your cordless system can have up to seven image scanners linked to one base.
You can also have up to seven work groups. If you want to have all of the image
scanners’ settings programmed alike, you don’t need to use more than one
work group. If you want each image scanner to have unique settings (e.g.,
beeper volume, prefix/suffix, data formatter), then you may program each image
scanner to its own unique work group and may program each image scanner
independently. Visual XPress (page 9-1) makes it easy for you to program your
system for use with multiple image scanners and multiple work groups.
The image scanner keeps a copy of the menu settings it is using. Whenever the
image scanner is connected or reconnected to a base, the image scanner is
updated with the latest settings from the base for its work group. The image
scanner also receives menu setting changes processed by the base. If an
image scanner is removed from one base and placed into another base, it will
be updated with the new base settings for whatever work group that the image
scanner was previously assigned. For example, if the image scanner was in
work group 1 linked to the first base, it will be placed in work group 1 in the sec-
ond base with the associated settings.
Image Scanner Report

Honeywell 3820 Specifications

General

Type	Handheld bar code reader
Sensor type	CCD
Scanner type	1D/2D
Read rate (max)	270 reads/s
Maximum scan width	610 mm
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	5
Light levels (direct sunlight)	0 - 70000 lx
Linear (1D) barcodes supported	CPC Binary, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ITF-14, JAN, MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	Codablock, Code 16K, Code 49, Composite Codes, Data Matrix, PDF417
Battery life	16 h
Charging time	4 h
Input voltage	12 V
Battery voltage	3.7 V
Battery capacity	1800 mAh
Power consumption	852 mA
Power source type	Battery, DC
Number of reads per charge	57000
Power consumption (standby)	1.2 W
Power consumption (typical)	9.9 W
Number of batteries supported	1
USB version	2.0
PC connection	USB 2.0
Wireless range	10 m
Bluetooth version	2.0+EDR
Connectivity technology	Wireless
Product color	Gray
Housing material	Plastic
Protection features	Dust resistant, Water resistant
Programming function	Yes
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	165 mm
Width	81 mm
Height	157 mm
Weight	261 g
