Base Charge Mode
In order for the battery to be charged, there must be enough voltage for the cir-
cuitry to work. There are three conditions during which power can be supplied
to the base:
Condition 1:9VDC power supply connected to the barrel connector
Condition 2:12VDC host power source only
Condition 3:5VDC host power source only

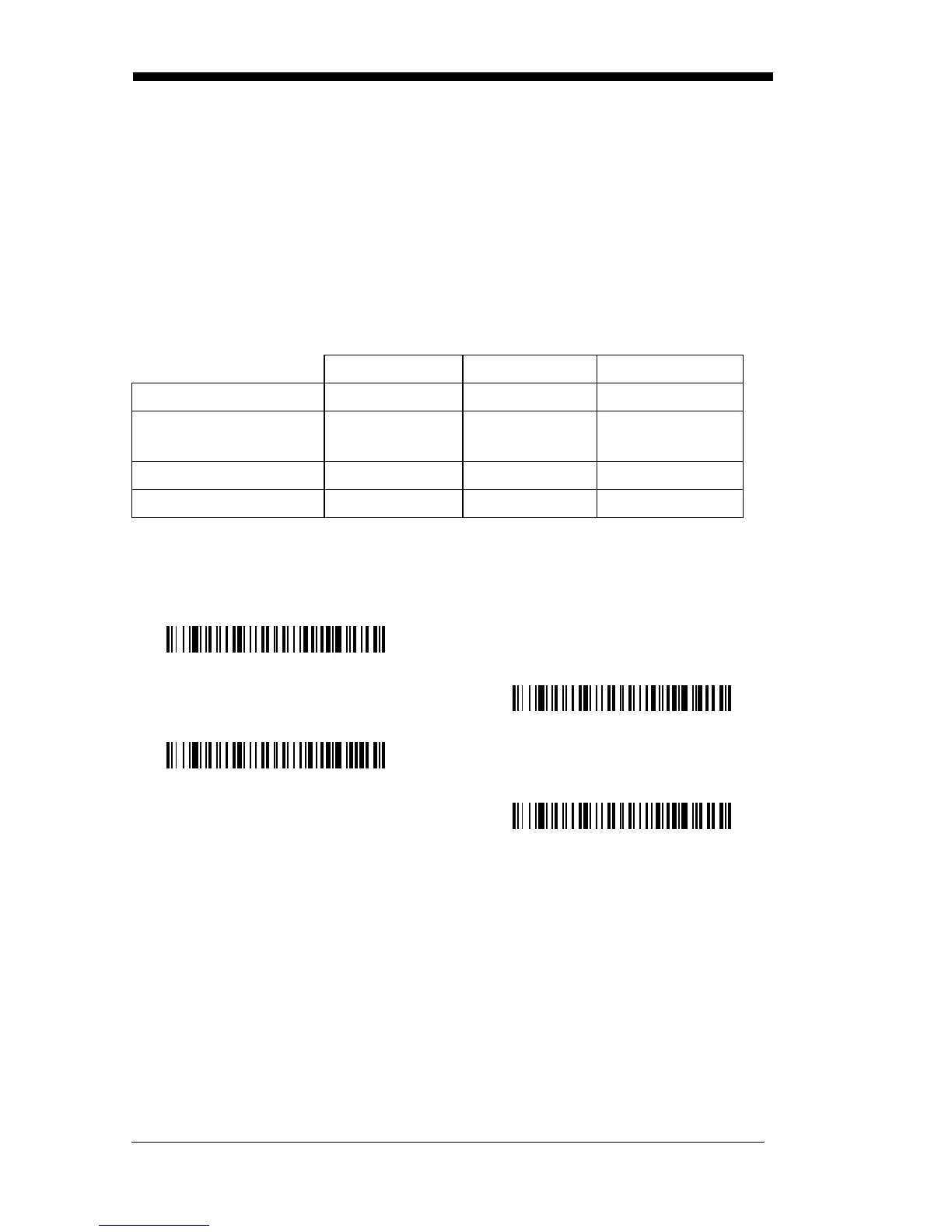

The chart below describes each selection by condition.
Using a slow charge rate draws less current (power) from the input power
source when the battery is mostly discharged.
Scan the appropriate barcode for your application.
Default = Automatic
.
Condition 1 Condition 2 Condition 3
Automatic Fast Charge Slow Charge No Charge
Full Charge Rate Fast Charge Fast Charge No Charge
Low Charge Rate Slow Charge Slow Charge No Charge
Battery Charge Off No Charge No Charge No Charge
* Automatic
Low Charge Rate
Full Charge Rate
Battery Charge Off
To Next Page
