Terminal Interfaces
Terminal ID
If your interface is not a standard PC AT, refer to "Supported Terminals" on page
2-2 through page 2-3, and locate the Terminal ID number for your PC. Scan the

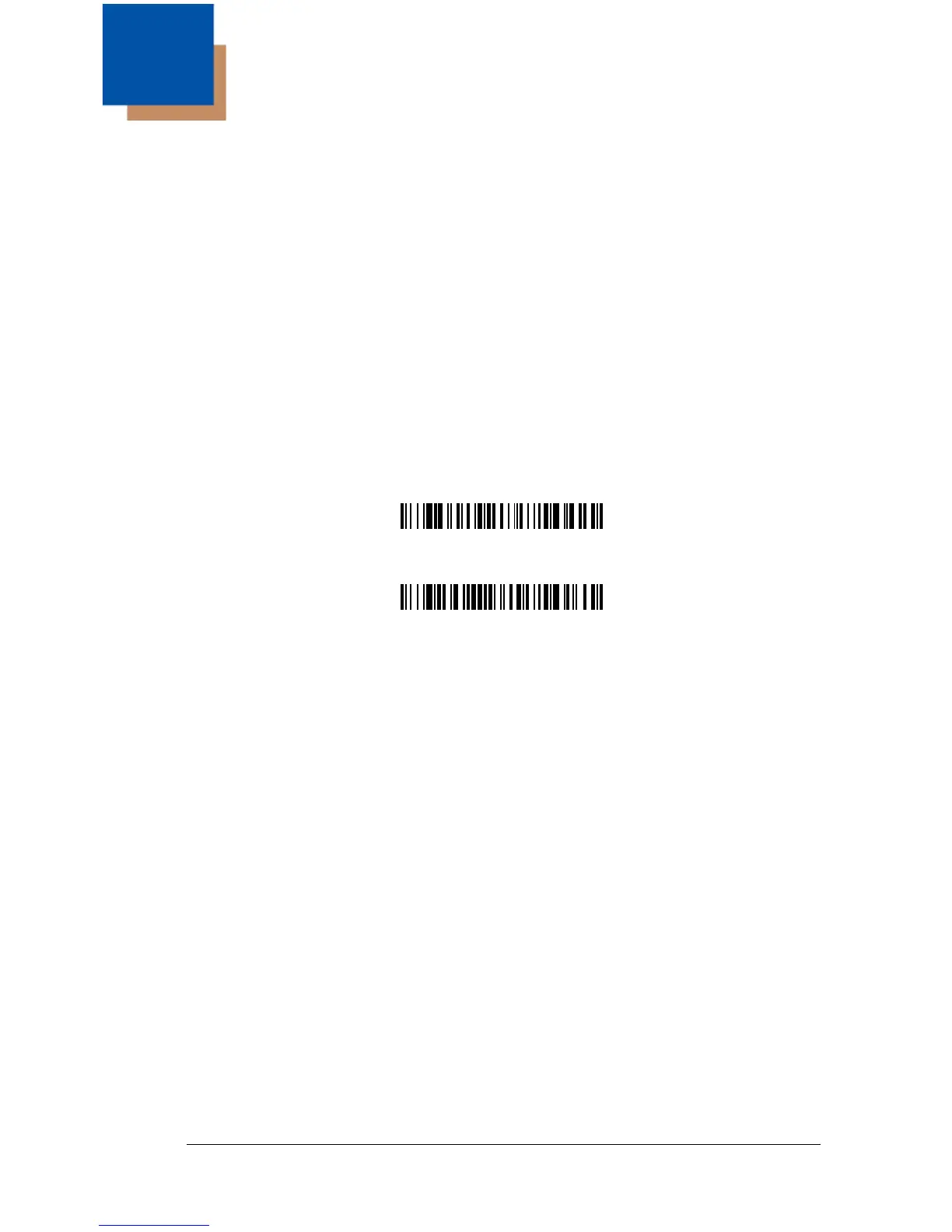

Terminal ID barcode below, then scan the numeric barcode(s) from the Pro-
gramming Chart inside the back cover of this manual to program the image
scanner for your terminal ID. Scan Save to save your selection.
For example, an IBM AT terminal has a Terminal ID of 003. You would scan the
Terminal ID barcode, then 0, 0, 3 from the Programming Chart inside the back
cover of this manual, then Save. If you make an error while scanning the digits
(before scanning Save), scan the Discard code on the Programming Chart,
scan the Terminal ID barcode, scan the digits, and the Save code again.
Note: The default interface for the 2020-5BE is Keyboard Wedge (Term ID =
003).
Note: After scanning one of these codes, you must power cycle your computer.
Terminal ID
Save

Honeywell 3820 Specifications

General

Type	Handheld bar code reader
Sensor type	CCD
Scanner type	1D/2D
Read rate (max)	270 reads/s
Maximum scan width	610 mm
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	5
Light levels (direct sunlight)	0 - 70000 lx
Linear (1D) barcodes supported	CPC Binary, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ITF-14, JAN, MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	Codablock, Code 16K, Code 49, Composite Codes, Data Matrix, PDF417
Battery life	16 h
Charging time	4 h
Input voltage	12 V
Battery voltage	3.7 V
Battery capacity	1800 mAh
Power consumption	852 mA
Power source type	Battery, DC
Number of reads per charge	57000
Power consumption (standby)	1.2 W
Power consumption (typical)	9.9 W
Number of batteries supported	1
USB version	2.0
PC connection	USB 2.0
Wireless range	10 m
Bluetooth version	2.0+EDR
Connectivity technology	Wireless
Product color	Gray
Housing material	Plastic
Protection features	Dust resistant, Water resistant
Programming function	Yes
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	165 mm
Width	81 mm
Height	157 mm
Weight	261 g
