Single Image Scanner Operation
There are two link modes to accommodate different applications: Locked Link
Mode and Open Link Mode. Scan the appropriate barcodes included in the
Open Link and Locked Link Mode explanations that follow to switch from one
mode to another.
Default = Locked Link Mode .
Locked Link Mode - Single Image Scanner
If you link an image scanner to a base using the Locked Link Mode, other image
scanners are blocked from being linked if they are inadvertently placed into the
base. If you do place a different image scanner into the base, it will charge the
image scanner, but the image scanner will not be linked.
To use a different image scanner, you need to unlink the original image scanner
by scanning the Unlink Image Scanner barcode. (See "Image Scanner
Modes" on page 1-5.)
Open Link Mode - Single Image Scanner
When newly shipped or defaulted to factory settings, the base and image scan-
ner are not linked. By placing an image scanner into the base, they establish a
link. Placing a different image scanner into the base establishes a new link and
the old image scanner is unlinked. Each time an image scanner is placed into
the base, it becomes the linked image scanner; the old image scanner is
unlinked.
Override Locked Image Scanner
If you need to replace a broken or lost image scanner that is linked to a base,
scan the Override Locked Image Scanner barcode below with a new image
scanner and place that image scanner in the base. The locked link will be over-
ridden; the broken or lost image scanner’s link with the base will be removed,
and the new image scanner will be linked.

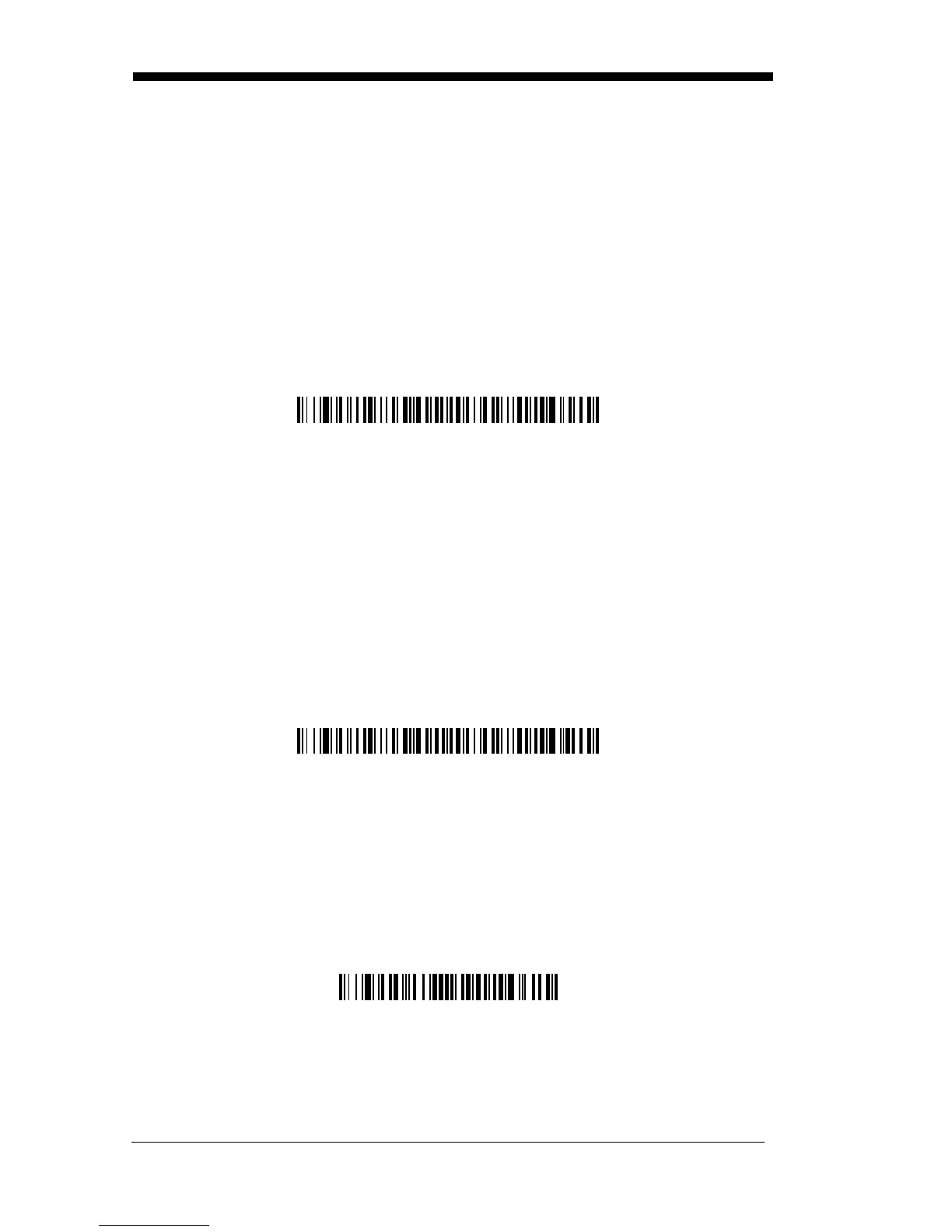

* Locked Link Mode
(Single Image Scanner)
Open Link Mode
(Single Image Scanner)
Override Locked Image Scanner
(Single Image Scanner)

Honeywell 3820 Specifications

General

Type	Handheld bar code reader
Sensor type	CCD
Scanner type	1D/2D
Read rate (max)	270 reads/s
Maximum scan width	610 mm
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	5
Light levels (direct sunlight)	0 - 70000 lx
Linear (1D) barcodes supported	CPC Binary, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ITF-14, JAN, MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	Codablock, Code 16K, Code 49, Composite Codes, Data Matrix, PDF417
Battery life	16 h
Charging time	4 h
Input voltage	12 V
Battery voltage	3.7 V
Battery capacity	1800 mAh
Power consumption	852 mA
Power source type	Battery, DC
Number of reads per charge	57000
Power consumption (standby)	1.2 W
Power consumption (typical)	9.9 W
Number of batteries supported	1
USB version	2.0
PC connection	USB 2.0
Wireless range	10 m
Bluetooth version	2.0+EDR
Connectivity technology	Wireless
Product color	Gray
Housing material	Plastic
Protection features	Dust resistant, Water resistant
Programming function	Yes
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	165 mm
Width	81 mm
Height	157 mm
Weight	261 g
