Honeywell 3820 User Manual

12 - 2
Replacing the 2020 Interface Cable:
1. Turn the power to the host system
OFF.
2. Disconnect the base’s cable from the
terminal or computer.
3. Turn the base upside down.
4. Pull the connector out while
maintaining pressure on the
connector release clip.
5. Replace with the new cable.
Insert the connector into the opening
and press firmly. The connector is
keyed to go in only one way, and will
click into place.

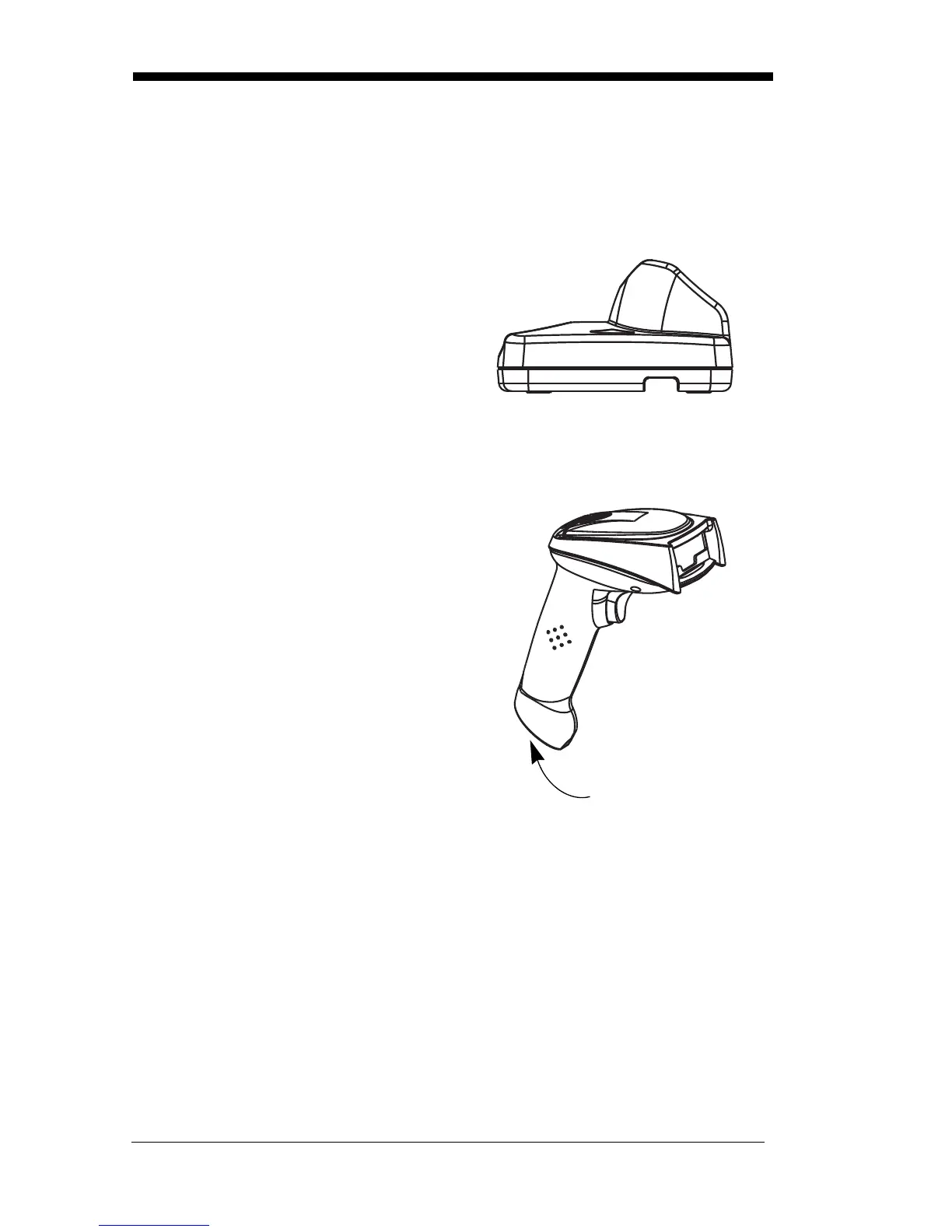

Changing the 3820/3820i
Battery:
1. Remove the screw on the end
cap on the 3820. On the
3820i, unscrew the thumb-
wheel end cap.
2. Remove the battery from the
handle.
3. Insert battery.
4. Replace end cap and screw or
tighten the thumbwheel end
cap.
Troubleshooting
Base
Note: Please visit the Services and Support section of our website
(
www.honeywell.com/aidc ) to check for the latest software for both the
image scanner and the base.
If your base is not functioning properly, review the following troubleshooting
guidelines to try to isolate the problem.
Is the red LED on?
If the red LED isn’t illuminated, check that:
End Cap

Honeywell 3820 Specifications

General

Type	Handheld bar code reader
Sensor type	CCD
Scanner type	1D/2D
Read rate (max)	270 reads/s
Maximum scan width	610 mm
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	5
Light levels (direct sunlight)	0 - 70000 lx
Linear (1D) barcodes supported	CPC Binary, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ITF-14, JAN, MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	Codablock, Code 16K, Code 49, Composite Codes, Data Matrix, PDF417
Battery life	16 h
Charging time	4 h
Input voltage	12 V
Battery voltage	3.7 V
Battery capacity	1800 mAh
Power consumption	852 mA
Power source type	Battery, DC
Number of reads per charge	57000
Power consumption (standby)	1.2 W
Power consumption (typical)	9.9 W
Number of batteries supported	1
USB version	2.0
PC connection	USB 2.0
Wireless range	10 m
Bluetooth version	2.0+EDR
Connectivity technology	Wireless
Product color	Gray
Housing material	Plastic
Protection features	Dust resistant, Water resistant
Programming function	Yes
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	165 mm
Width	81 mm
Height	157 mm
Weight	261 g
