2 - 8
Automatic Direct Connect Mode:
This selection can be used if you have an
IBM AT style terminal and the system is dropping characters.
Default = Off

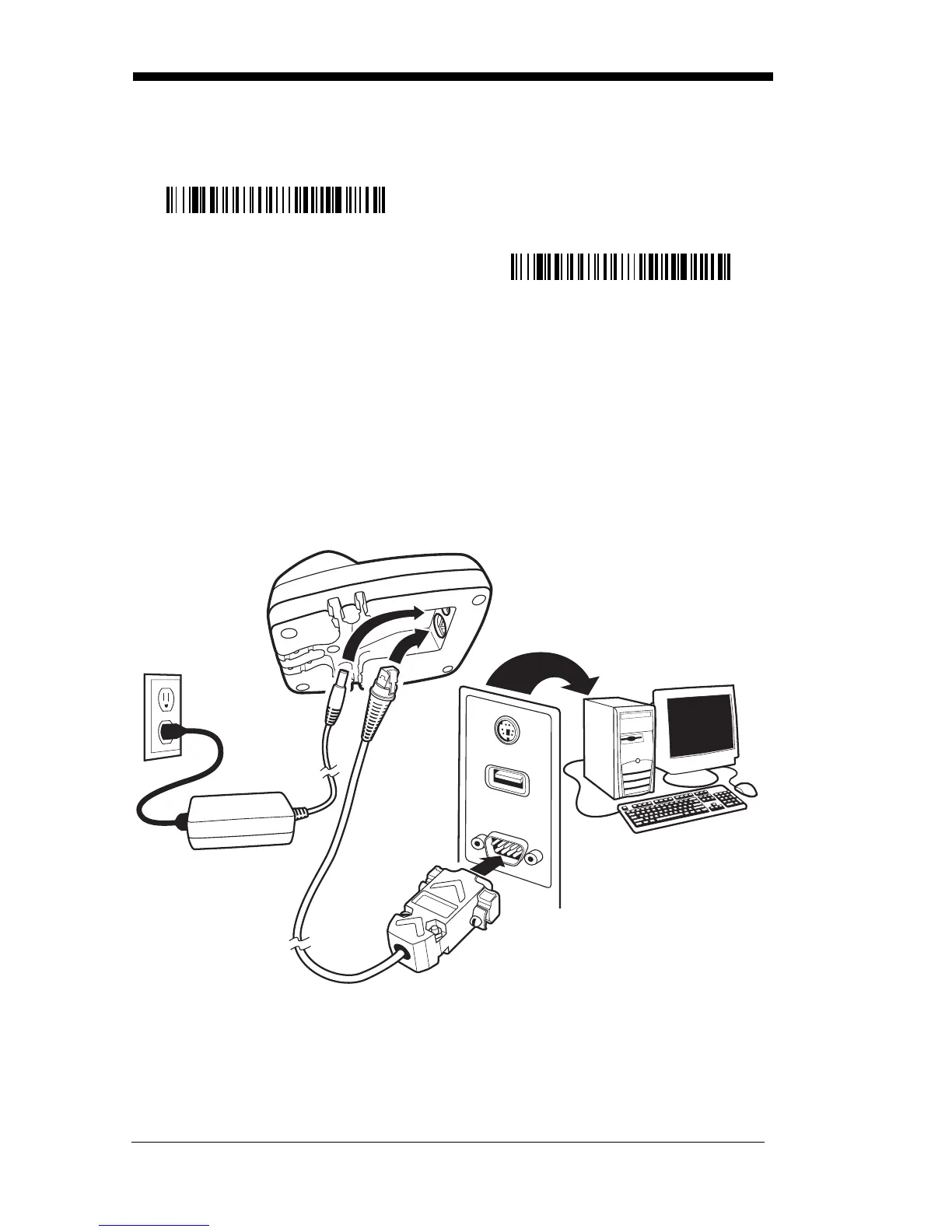

Connecting the Base with RS-232 Serial Port
1. Turn off power to the terminal/computer.
2. Connect the appropriate interface cable to the base.
Note: For the base to work properly, you must have the correct cable for your
type of terminal/computer.
3. Plug the serial connector into the serial port on your computer. Tighten the
two screws to secure the connector to the port.
4. Plug the power supply barrel connector to the base, and plug the power
supply into the AC source.
Automatic Direct
Connect Mode On
* Automatic Direct Connect
Mode Off

Table of Contents

Other manuals for Honeywell 3820

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Honeywell 3820 and is the answer not in the manual?

Honeywell 3820 Specifications

General IconGeneral
TypeHandheld bar code reader
Sensor typeCCD
Scanner type1D/2D
Read rate (max)270 reads/s
Maximum scan width610 mm
Pitch reading angle-65 - 65 °
Motion tolerance (cm/s)5
Light levels (direct sunlight)0 - 70000 lx
Linear (1D) barcodes supportedCPC Binary, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ITF-14, JAN, MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supportedCodablock, Code 16K, Code 49, Composite Codes, Data Matrix, PDF417
Battery life16 h
Charging time4 h
Input voltage12 V
Battery voltage3.7 V
Battery capacity1800 mAh
Power consumption852 mA
Power source typeBattery, DC
Number of reads per charge57000
Power consumption (standby)1.2 W
Power consumption (typical)9.9 W
Number of batteries supported1
USB version2.0
PC connectionUSB 2.0
Wireless range10 m
Bluetooth version2.0+EDR
Connectivity technologyWireless
Product colorGray
Housing materialPlastic
Protection featuresDust resistant, Water resistant
Programming functionYes
International Protection (IP) codeIP41
Storage temperature (T-T)-40 - 60 °C
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)0 - 95 %
Weight and Dimensions IconWeight and Dimensions
Depth165 mm
Width81 mm
Height157 mm
Weight261 g
