Honeywell 3820 User Manual

1 - 8
Changing Image Scanner Name - via Barcodes

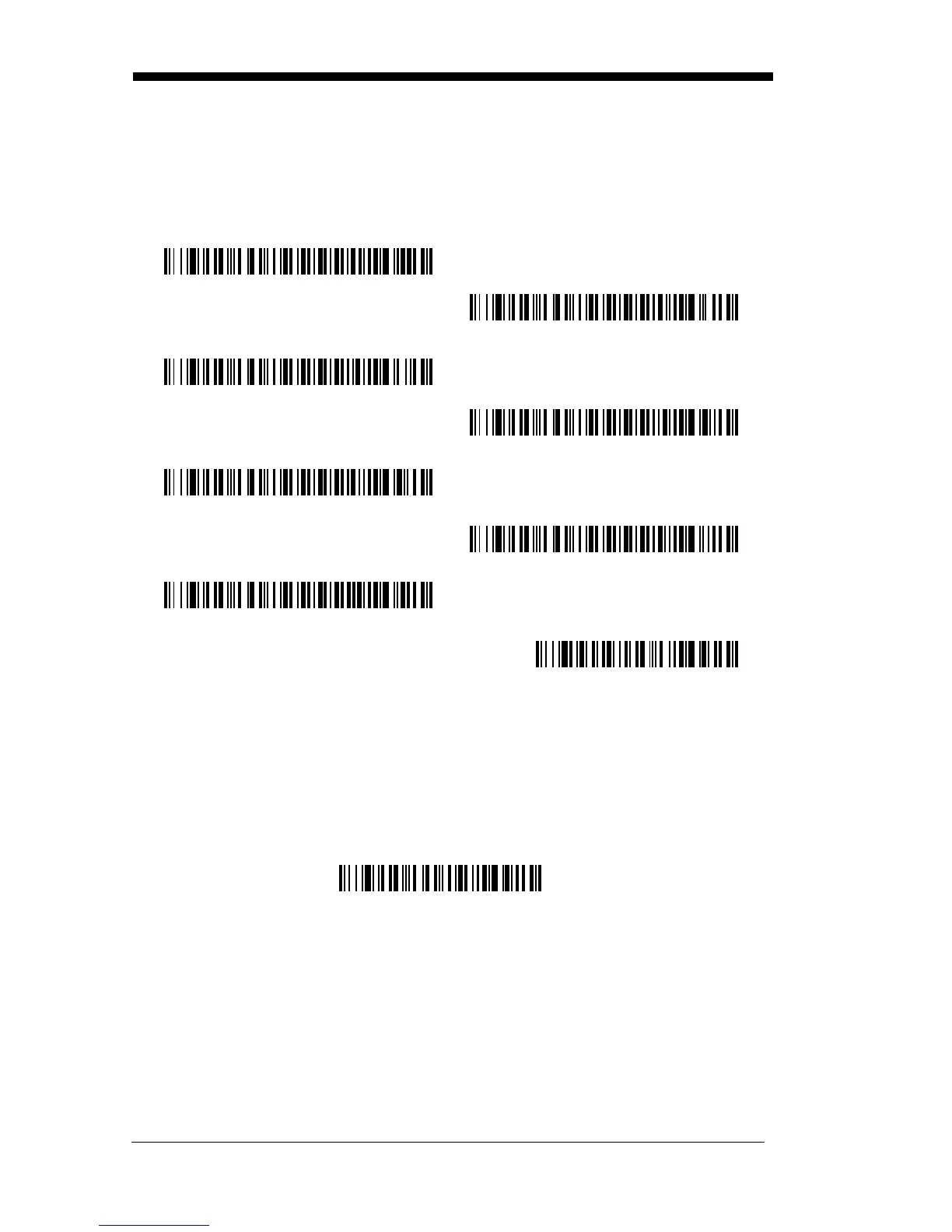

If you wanted to set up your image scanners with names 0001-0007, you may
scan the barcodes below.
Scan the Reset barcode after each name change
and wait for the image scanner to re-link to the base before scanning the next
barcode to name the next image scanner.
Alternatively, you may change the name with a barcode command if you cannot
send serial commands to the base. One way to do this is to scan the barcode
below and scan a number for the image scanner name. For example, if you had
7 image scanners to one base, scan the barcode below with the first image
scanner, scan the 1 barcode on the Programming Chart inside the back cover of
this manual and scan Save. Then scan the Reset barcode and wait for the
image scanner to re-link to the base before scanning the next barcode. Repeat
that process for image scanner number 2, 3, 4 etc.
If you want to assign an alphabetic name to the image scanner, create a Code
128 barcode containing “~BT_NAM
name .” followed by a FNC3 character (hexi-
decimal 83), where
name is the new image scanner name. Scan the Reset bar-
code (page 1-8 or on the Programming Chart inside the back cover of this
manual). You may use Barcode Builder, which is included with Quick*View.
You may download Quick*View from the Honeywell International Inc. website:
www.honeywell.com/aidc
.
0001
0002
0003
0005
0007
0004
0006
Reset
0002
Image Scanner Name

Honeywell 3820 Specifications

General

Type	Handheld bar code reader
Sensor type	CCD
Scanner type	1D/2D
Read rate (max)	270 reads/s
Maximum scan width	610 mm
Pitch reading angle	-65 - 65 °
Motion tolerance (cm/s)	5
Light levels (direct sunlight)	0 - 70000 lx
Linear (1D) barcodes supported	CPC Binary, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ITF-14, JAN, MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	Codablock, Code 16K, Code 49, Composite Codes, Data Matrix, PDF417
Battery life	16 h
Charging time	4 h
Input voltage	12 V
Battery voltage	3.7 V
Battery capacity	1800 mAh
Power consumption	852 mA
Power source type	Battery, DC
Number of reads per charge	57000
Power consumption (standby)	1.2 W
Power consumption (typical)	9.9 W
Number of batteries supported	1
USB version	2.0
PC connection	USB 2.0
Wireless range	10 m
Bluetooth version	2.0+EDR
Connectivity technology	Wireless
Product color	Gray
Housing material	Plastic
Protection features	Dust resistant, Water resistant
Programming function	Yes
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	165 mm
Width	81 mm
Height	157 mm
Weight	261 g
