Calibration
Part No.: 44200004 - Revision 2 SVP Controller Operation Manual 4-5
PN #44100375
CABLE FROM
SOLENOID VALVES
TO ENCLOSURE
POWER ENCLOSURE
POWER SUPPLY CONNECTION
+
-
+
-
WATERDRAW POWER SUPPLY
PN #10601197
WATER DRAW
PLUMBING ASSY
INCLUDED IN WATER DRAW KIT
1/2" SS BRAIDED HOSE
CONNECT TO PROVER
DOWNSTREAM SIDE
CUSTOMER CONNECTION ENCLOSURE
SOLENOID VALVE CONNECTION AND
POWER SUPPLY
TUBING TO
WASTEWATER
CATCH CONTAINER
TUBING TO
TEST
MEASURE
Description Terminal Number
Wire Color
Water Draw SV1 1 Red - Water Draw Cable
Water Draw SV2 2 White - Water Draw Cable
Water Draw Common 3 Black - Water Draw Cable
Customer Connection Enclosure

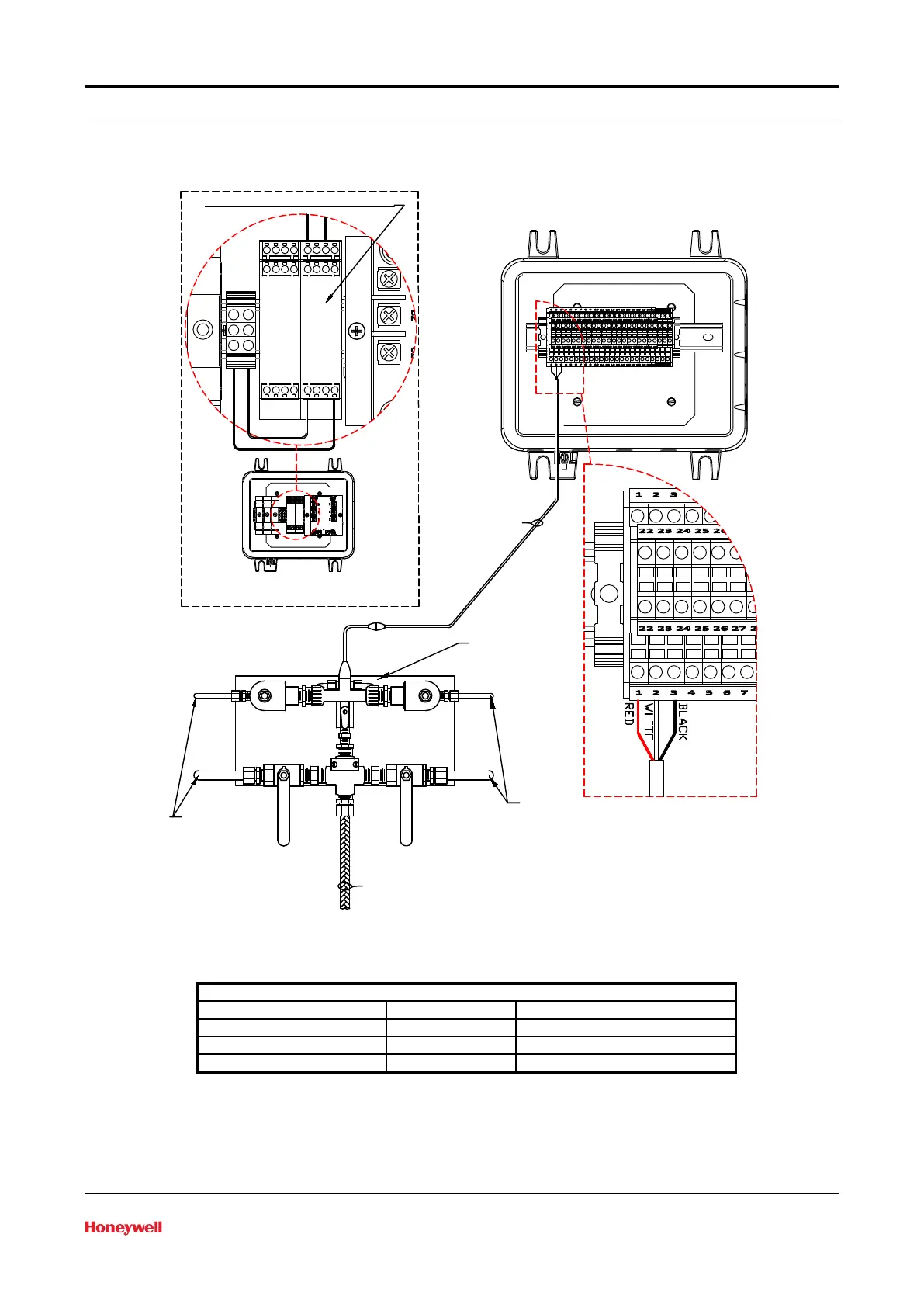

Figure 4-6: Water Draw Kit
