Honeywell FF-SPS4 Series User Manual

34 107063-11 EN FR26 GLO 800 Printed in France

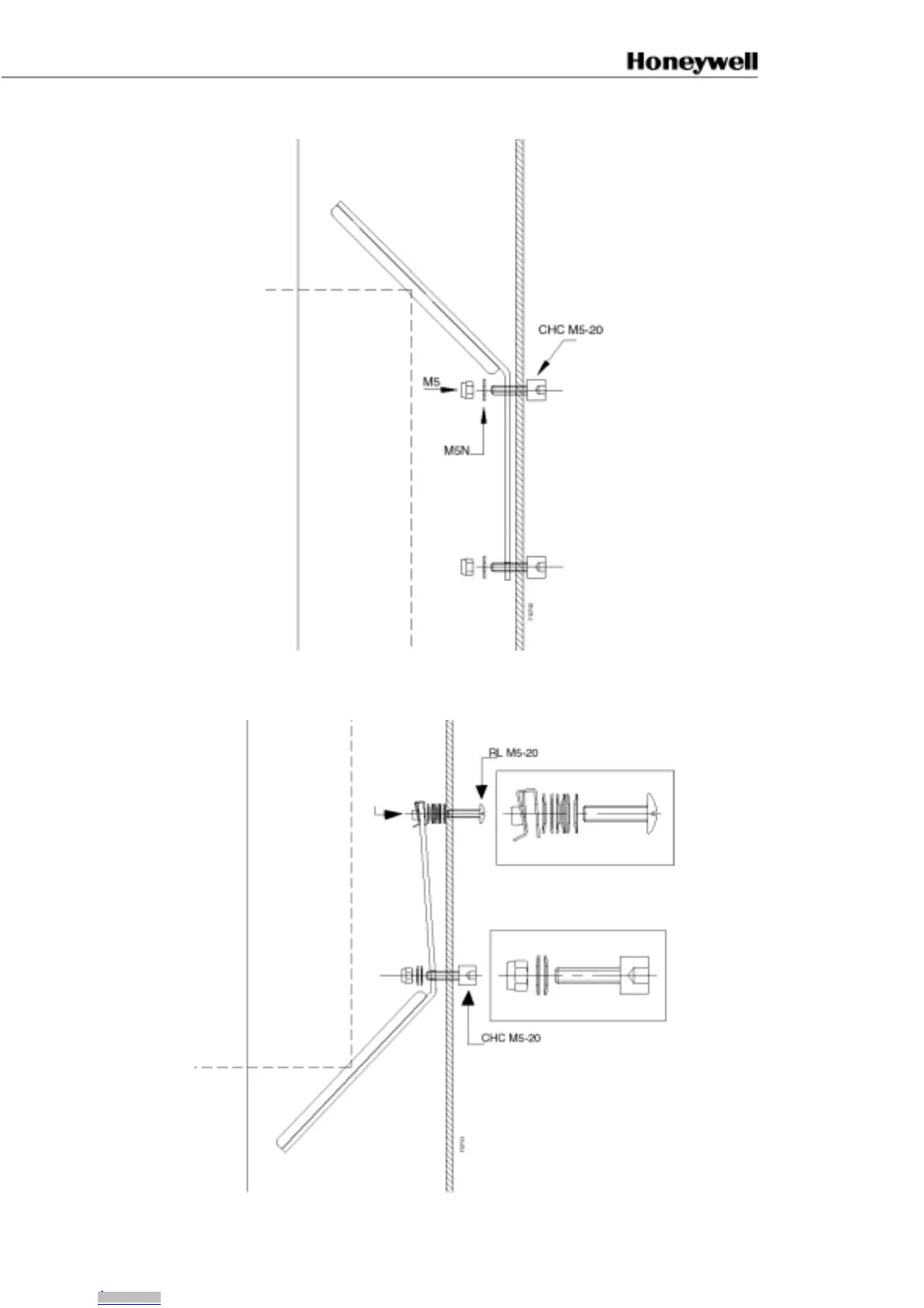

Figure 2-21 Fixing the non-adjustable mirror FF-SPZ680GGGG
GGGGGGGG
GGGG-F
Figure 2-22 Fixing the adjustable mirror FF-SPZ680GGGG
GGGGGGGG
GGGG-R
Thread locked bolt
(Fastening torque = 3Nm +/- 0.2 Nm)
Adjusting
screw
Tighten to a maximum, then unscrew
with a single turn
Tighten to a maximum, then
unscrew with a half turn
