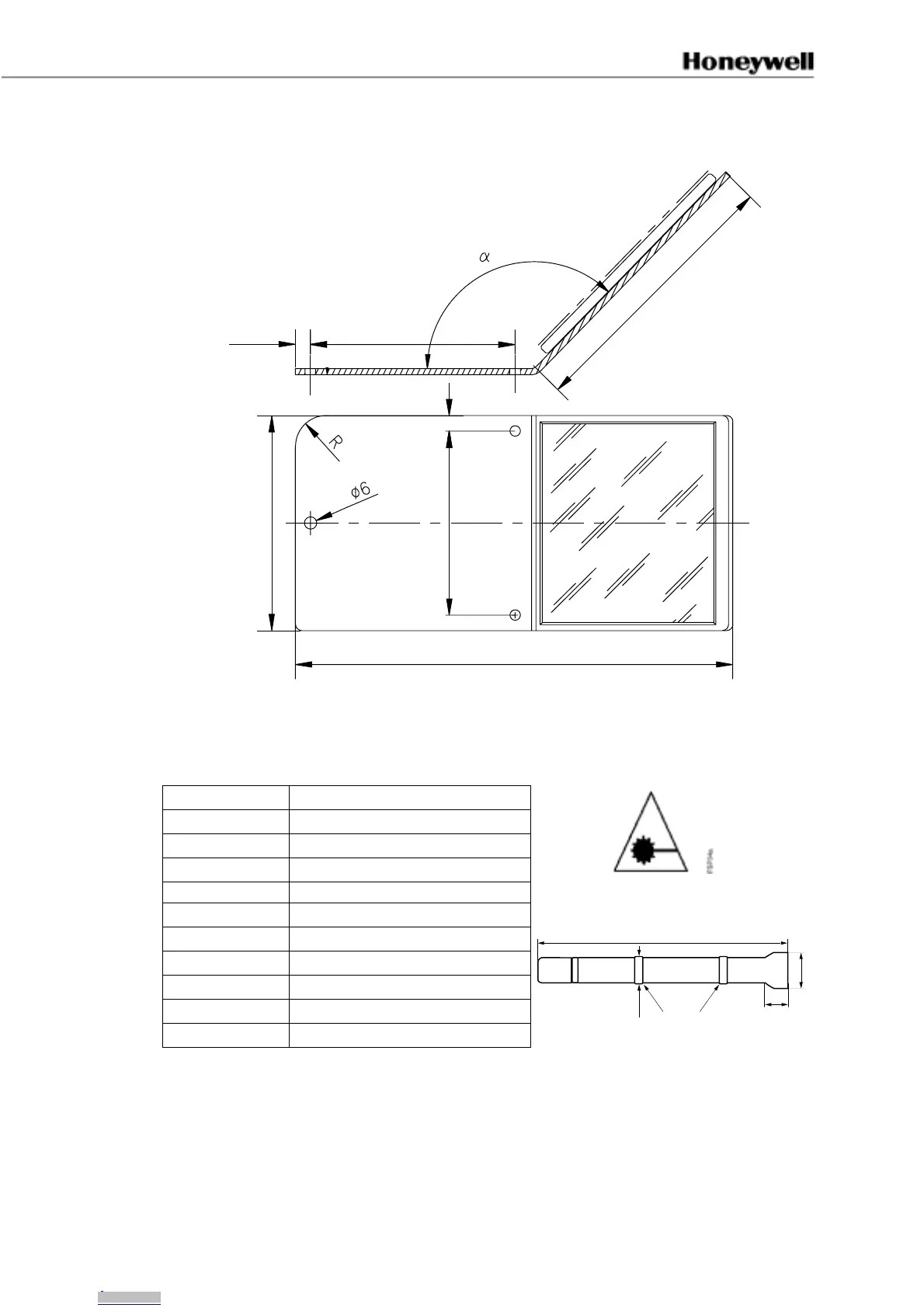

Figure 2-23 45° mirror FF-SPZ680GGGG
GGGGGGGG
GGGG-G
GG
G
FSP34
7,3 (0.29)
100 (3.94)
133 (5.24)
105 (4.13)
7,5 (0.3)
90 (3.55)
214 (8.43)
FF-SPZLASER laser pen for infrared beam alignment
Technical features
Laser Diode
Classification Class II
Optical power 1 mW max
Wave length 632 nm
Beam diameter 5 mm
Beam spread Less than 0.7 mrad
Supply 2 AAA batteries (1.5 V)
Endurance time Typically 20 hours continuous
Life time MTBF greater than 10 000 hours
Material Aluminium
Weight Aprox. 80 gr (2.8 oz)
ø15,5
(0.61)
ø22
(0.87)
14
(0.55)
160 (6.3)
FSP35
The laser pen FF-SPZLASER is a self-contained and compact laser device designed to ease
infrared beam alignments. Its II class conforms to the EN 60825 European standard and the
US 21 CFR 1040 American standard.
Laser Class II
Positioning rings
