FireLite SLC Wiring Manual — P/N 51309:R3 7/29/2019 61
Installation and Wiring Addressable Beam Detectors

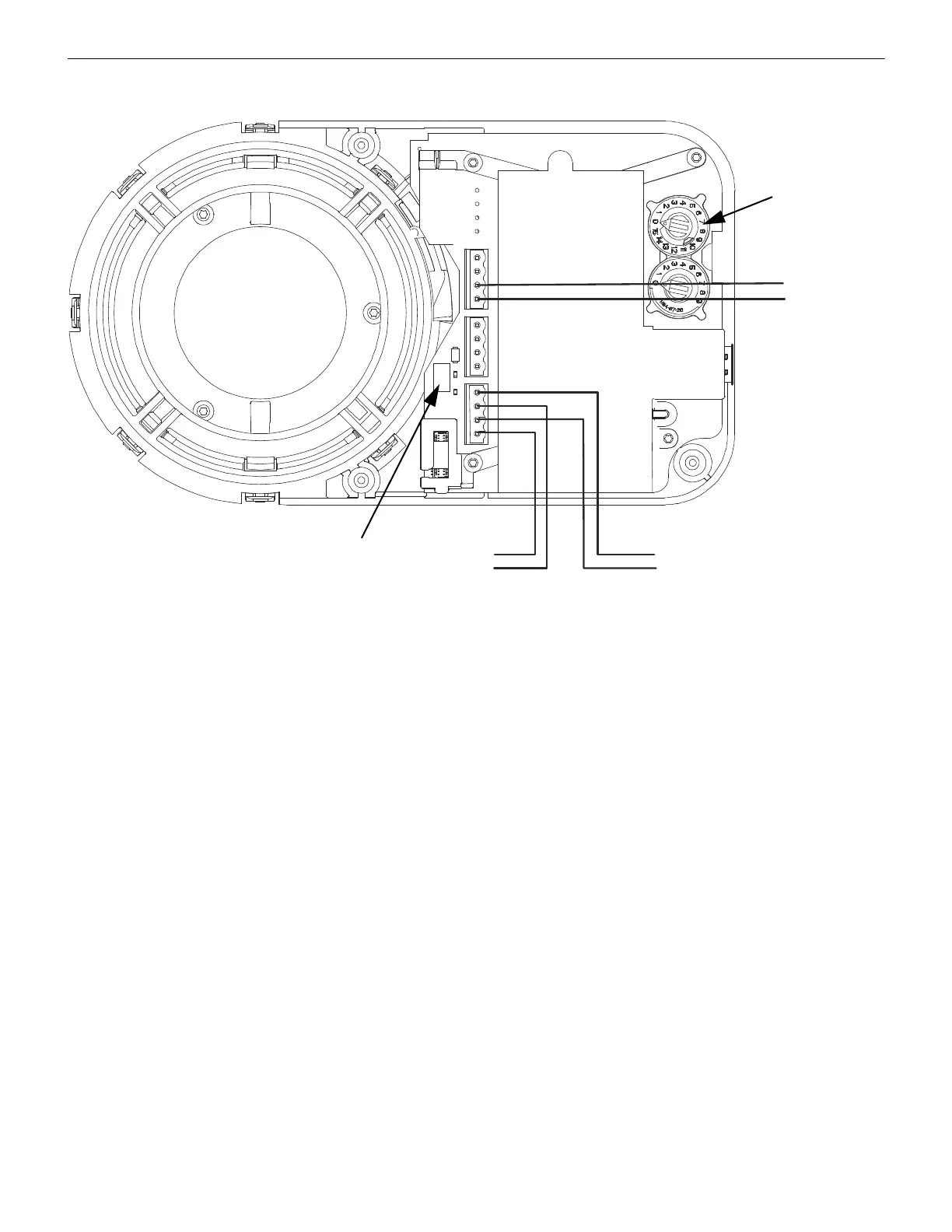

Typical wiring of an OSI-RI-FL beam detector connected to an SLC is illustrated in the figure below.
Heater Power -
Heater Power +
Rotary address
switches
USB port
SLC Out
SLC In
Aux -
Remote test input
Remote trouble output
Remote alarm output
Not used
Not used
Heater on/off switch
}
RTS151/KEY
connections
Figure 10.2 OSI-RI-FL Beam Detector Terminal Block Wiring
