Honeywell 60 Series IP Camera Software Configuration Guide

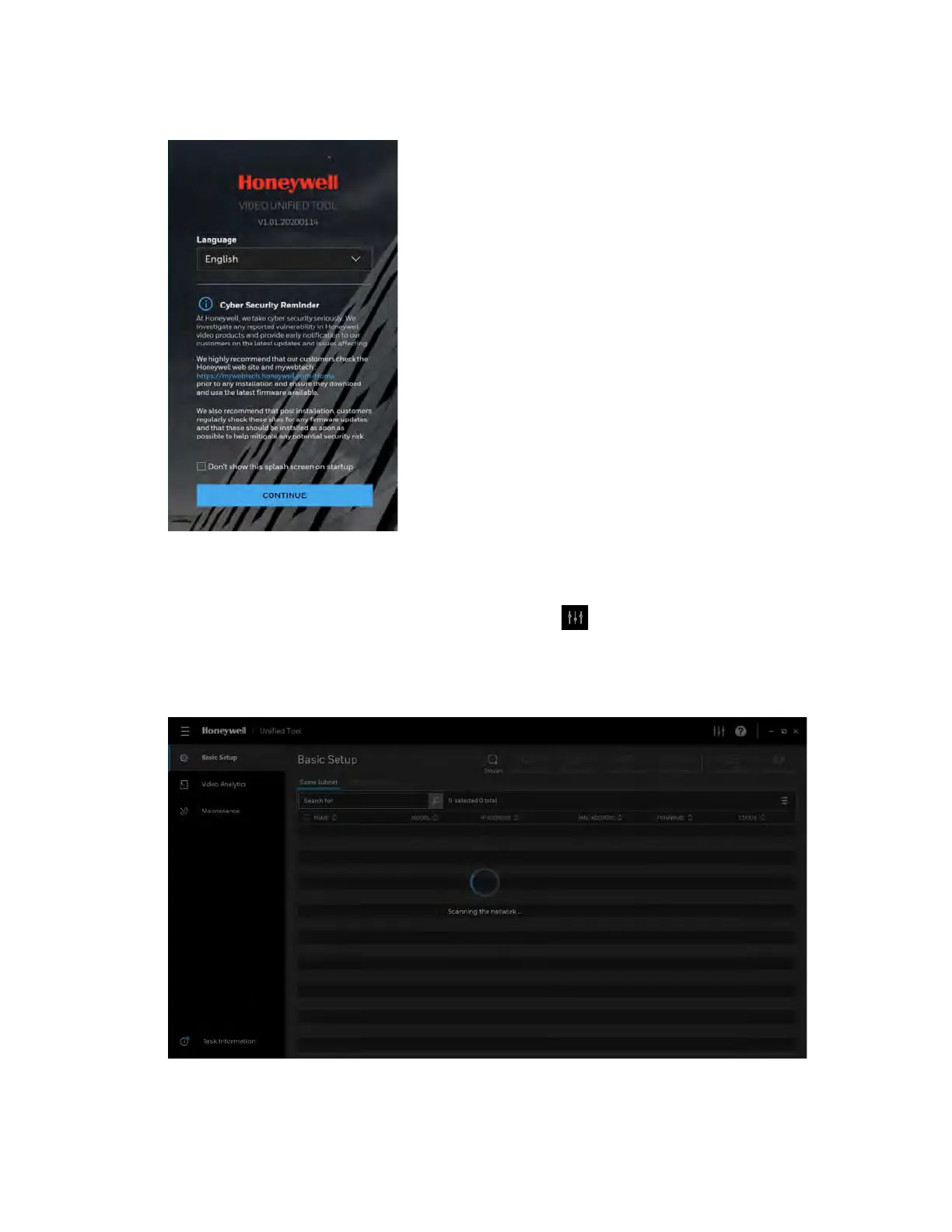

Figure 2-4 Splash Screen

1. Select your language from the dropdown list of Language. Currently, only English is

supported.

2. Check “Don’t show the splash window on startup” and this page can be skipped next time.

If you want to check the splash window again, click as shown in Figure 2-6 and select

the checkbox of Show the splash page on startup.

3. Click CONTINUE. It will scan devices in the network automatically.

Figure 2-5 Scanning the network

After the scanning, all scanned devices in the same subnet and different subnet will be

displayed in the devices list.

Table of Contents8
Introduction17
Overview17
Key Features17
Accessing the Camera19
Installing the Unified Tool19
Figure 2-1 Install Unified Tool20
Figure 2-2 Select Installation Folder20
Discovering Your Camera on the Network21
Figure 2-3 Confirm Installation21
Figure 2-4 Splash Screen22
Figure 2-5 Scanning the Network22
Assigning a New IP Address to Your Camera23
Figure 2-6 Device List23
Figure 2-7 IP Assignment23
Upgrading the Camera's Firmware24
Figure 2-8 Firmware Upgrade24
Accessing the Camera from a Web Browser25
Figure 2-9 Firmware Upgrade 225
Logging in and Viewing Live Video26
Logging in to the Camera Via the Web Client26
Before You Begin26
Logging in to the Camera26
Figure 3-1 Security Certificate Problem27
Figure 3-2 Change Password27
Figure 3-3 Login Page28
Figure 3-4 Safety Problem29
Figure 3-5 Security Certificate Problem29
Figure 3-6 Change Password29
Using the Main Page30
Figure 3-7 Login Page30
Figure 3-8 Main Page30
System Menu31
Stream Profile31
Figure 3-9 PTZ Panel31
Camera Name32
Live View Tool Bar32
Language32
User Account32
Figure 3-10 Live View Window Controls32
Table 3-1 Live View Window Controls32
Figure 3-11 User Account33
Configuring Camera Settings34
Configuring General Settings34
Video Settings35
Figure 4-1 General Settings35
Day/Night Settings36
Figure 4-2 Video Orientation36
Configuring Video Settings37
Mode37
Figure 4-3 Mode37
Video Stream38
Figure 4-4 Video Stream39
Table 4-1 Stream and Frame Size Matrix39
Figure 4-5 Smart Codec40
Configuring Audio Settings42
Figure 4-6 Audio42
Configuring IR Control Settings43
IR Illuminators43
Smart IR43
Figure 4-7 IR Control Settings43
Configuring Image Settings44
White Balance44
Figure 4-8 Image Settings44
Image Adjustment45
Defog45
3D Noise Reduction45
Configuring Exposure Settings46
Measurement Window46
Figure 4-9 Exposure46
Exposure Control47
AE Speed Adjustment47
Figure 4-10 AE Speed Adjustment47
Wdr48
Configuring Focus48
Figure 4-11 WDR48
Figure 4-12 Focus49
Configuring Privacy Mask50
Figure 4-13 Privacy Mask50
Configuring Privacy Mask (for HC60WZ2E30)51
Figure 4-14 Configuring Privacy Mask (HC60WZ2E30)51
Configuring PTZ Settings52
PTZ Settings52
PTZ Operations52
Figure 5-1 PTZ Setup52
Home Location Settings53
Patrol List53
Figure 5-2 Patrol List53
Figure 5-3 Add a Recorded Patrol54
Figure 5-4 Add a Preset Patrol55
Misc Settings56
Figure 5-5 Set a Patrol56
Figure 5-6 Misc Settings56
Calibrate57
Auto Tracking58
Figure 5-7 Calibrate58
Figure 5-8 Auto Tracking58
Configuring Network Settings60
Configuring Network General Settings60
Figure 6-1 Network Type60
Figure 6-2 Enable Ipv662
Figure 6-3 Ipv6 Information62
Configuring Streaming Protocols63
Figure 6-4 Manually Setup IP Address63
Figure 6-5 Streaming Protocols - HTTP63
Figure 6-6 Streaming Protocols - RTSP64
Figure 6-7 Multicast Settings65
Configuring DDNS Settings66
Configuring Qos Settings66
Figure 6-8 DDNS66
Figure 6-9 Cos67
Configuring SNMP Settings68
Figure 6-10 Qos/Dscp68
Figure 6-11 SNMP Configurations69
Configuring HTTPS Settings70
Figure 6-12 HTTP70
Figure 6-13 Certificate Request70
Configuring IEEE 802.1X Settings71
Figure 6-14 Upload Files71
Figure 6-15 IEEE 802.1X Configurations - EAP-PEAP72
Figure 6-16 IEEE 802.1X Configurations - EAP-TLS72
Configuring Video Analytics73
Configuring Motion Detection Settings73
Motion Detection73
Configuring Tampering Detection Settings74
Figure 7-1 Configuring Motion Detection Settings74
Figure 7-2 Tampering Detection Configurations74
Configuring Alarm in and Alarm out75
Configuring Event Settings75
Figure 7-3 Alarm in and Alarm out75
Event76
Figure 7-4 Event Settings76
Figure 7-5 Event77
Figure 7-6 Trigger Sources78
Figure 7-7 Action79
Figure 7-8 Add Server80
Figure 7-9 Server Type - HTTP80
Figure 7-10 Add Media81
Package Management83
Figure 7-11 Event Settings Examples83
Figure 7-12 Package Management83
Configuring Storage Settings85
SD Card Management85
Table 8-1 Compatible SD Card85
SD Card Status86
SD Card Format86
Figure 8-1 no SD Card86
Figure 8-2 SD Card Onboard86
Figure 8-3 SD Card Format86
SD Card Control87
Content Management87
Searching and Viewing the Records87
Figure 8-4 SD Card Control87
Search Results88
Figure 8-5 Search88
Figure 8-6 Search Results88
Recording Settings89
Figure 8-7 Play Search Result89
Figure 8-8 Recording Settings89
Adding a Recording Setting90
Figure 8-9 Recording Settings Details90
Setting up a Recording91
Figure 8-10 Recording 192
Configuring System Settings93
Configuring System General Settings93
Figure 9-1 Configuring System General Settings93
Configuring Maintenance Settings94
Figure 9-2 Maintenance94
Upgrading Firmware95
Rebooting the Camera95
Restoring the Camera95
Importing /Exporting Files96
Figure 9-3 Import/Export Files96
Configuring User Accounts Settings98
Account Management99
Configuring Access List Settings99
Figure 9-4 Account Management99
General Settings100
Filter100
Figure 9-5 Access List100
Administrator IP Address101
10 Viewing System Information102
Log102
Figure 10-1 System Log102
Version103
Figure 10-2 Access Log103
11 Troubleshooting104
Troubleshooting for Common Issues104
Table 11-1 Troubleshooting104
12 Appendix105
List of Symbols105
