Honeywell HC60WZ2E30 User Manual

Honeywell 60 Series IP Camera Software Configuration Guide
48
Access name for main stream/sub stream/third stream: The camera supports multiple
streams simultaneously. The access name is used to identify different video streams. You can
set up the video quality of linked streams. For more information, see Video Stream on page 22.

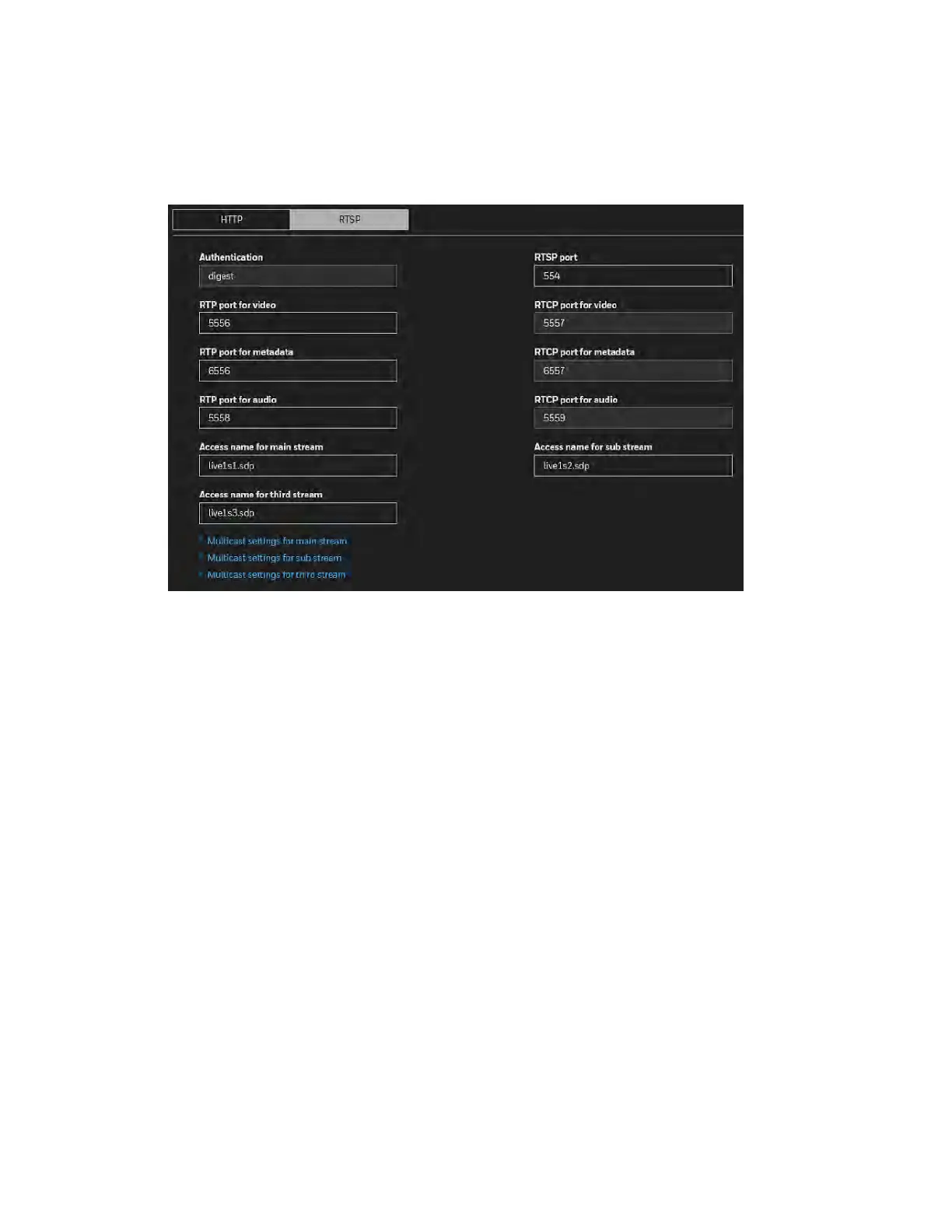

Figure 6-6 Streaming Protocols – RTSP
To utilize RTSP streaming authentication, make sure that you have set a password for
controlling the access to video stream first. For more information, see Configuring User
Accounts Settings on page 82.
Authentication (digest): User credentials are encrypted with MD5 algorithm which provides
better protection against unauthorized access.
Access name for main stream/sub stream/third stream: The camera supports multiple
streams simultaneously. The access name is used to differentiate the streaming source.
If you want to use an RTSP player to access the camera, you have to set the video mode to
H.264 or H.265 and use the following RTSP URL command to request transmission of the
streaming data.
rtsp://<ip address>:<rtsp port>/<access name for stream 1 to 3>
For example, when the access name for stream 1 is set to live.sdp:
1. Launch an RTSP player.
2. Choose File  Open URL. A URL dialog box will pop up.
3. Type the above URL command in the text box.
4. The live video will be displayed in your player.
RTSP port /RTP port for video / RTCP port for video:
• RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By
default, the RTSP port number is set to 554.
• The RTP (Real-time Transport Protocol) is used to deliver video data to the clients. By
default, the RTP port for video is set to 5556.
