Configuring PTZ Settings
39
Adding a Preset Patrol

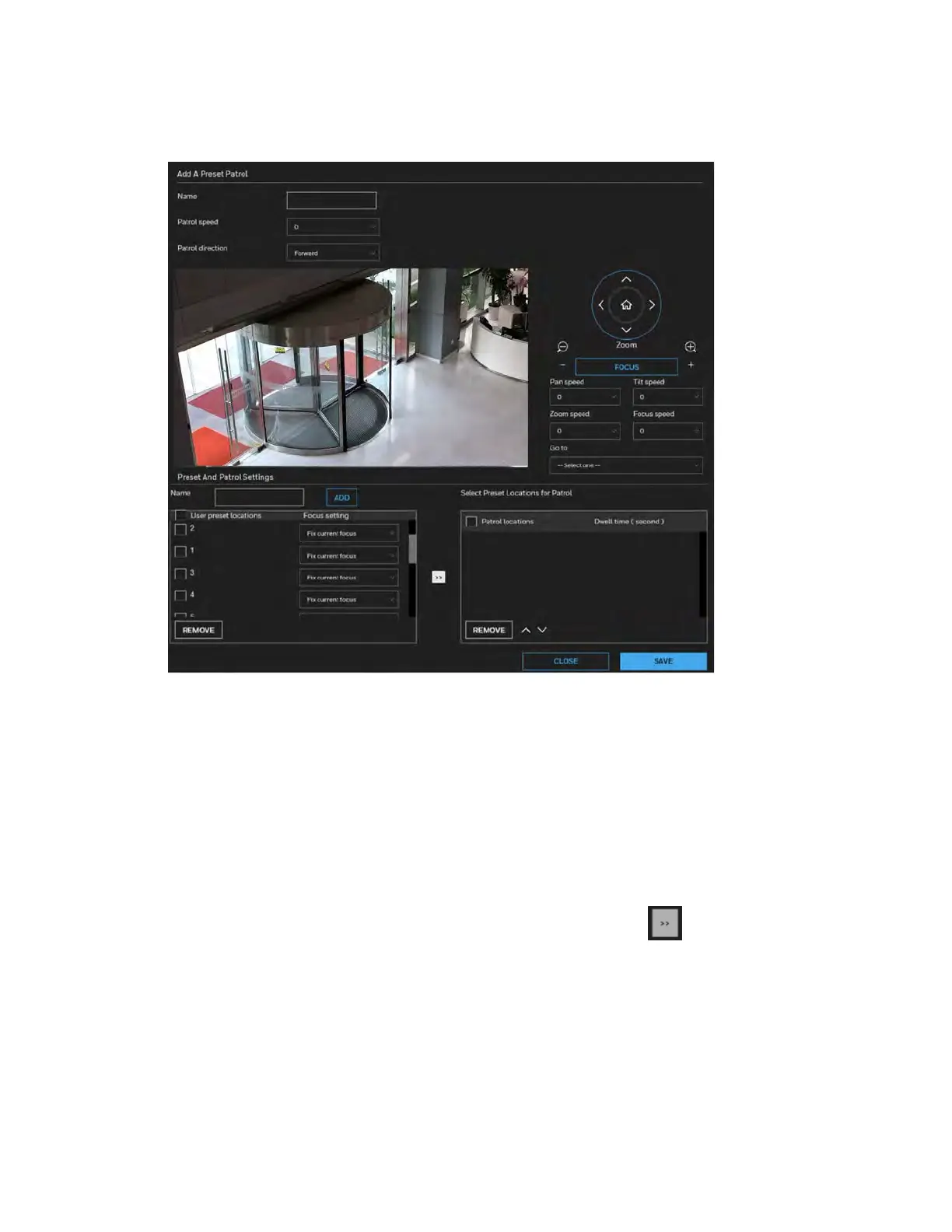

Figure 5-4 Add A Preset Patrol
1. Enter a name for the preset patrol.
2. Select a patrol speed form the dropdown list.
3. Select a patrol direction from the dropdown list.
4. Click on the screen or operate the PTZ panel to adjust the shooting area to the desired
position.
5. Select the Pan/Tilt/Zoom/Focus speed.
6. Enter a name for the preset. Click ADD and the preset will be listed in the User preset
locations list. Repeat the above steps to add more preset locations. To remove a preset,
select it and click REMOVE.
7. Select the preset locations in the preset locations list, and click .
8. The selected preset locations will be displayed in the Patrol locations list. The default
dwell time is 5 seconds. Set the Dwelling time for the preset location during an auto
patrol.
