Configuring Network Settings

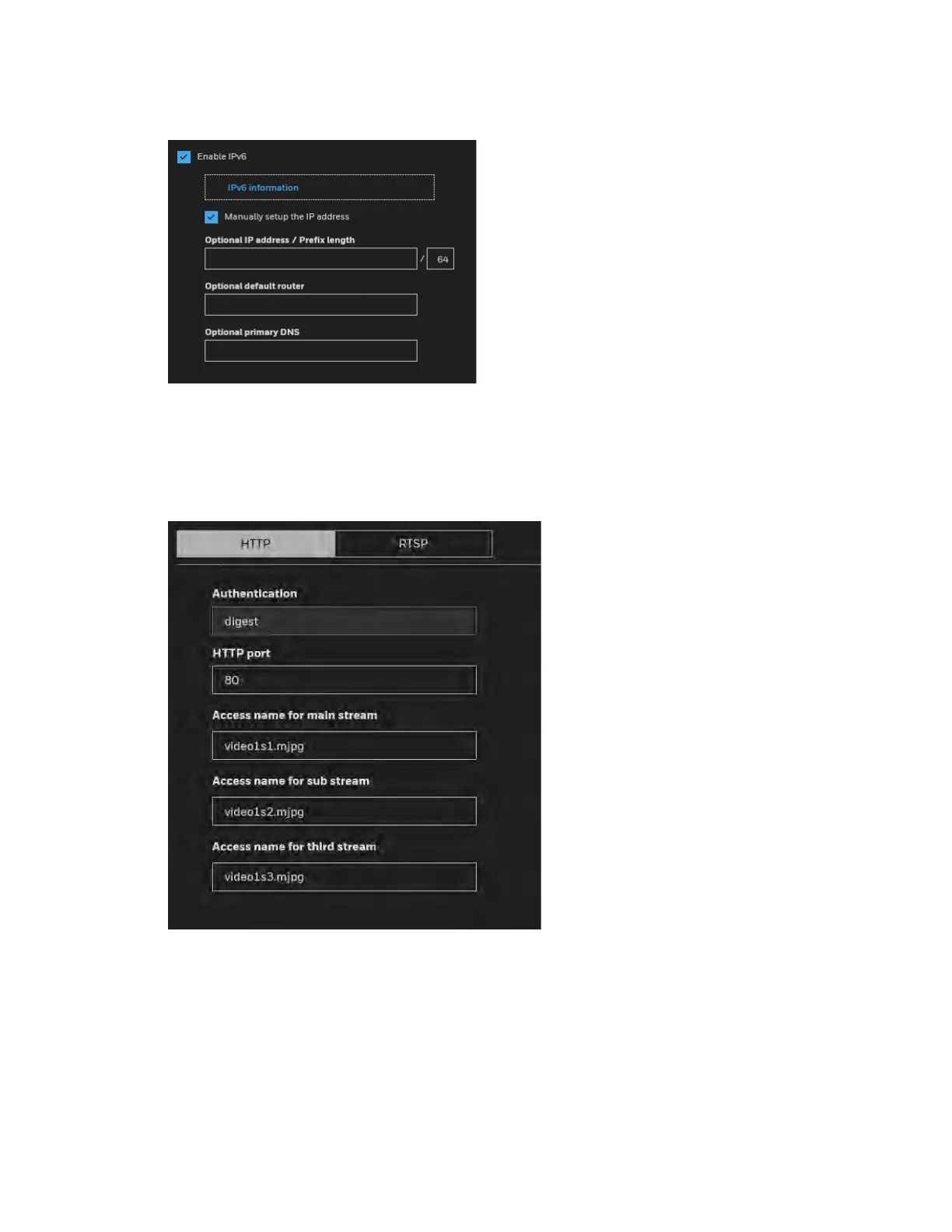

Figure 6-4 Manually setup IP Address

Configuring Streaming Protocols

Go to SetupNetwork SetupStreaming Protocols.

Figure 6-5 Streaming Protocols - HTTP

To utilize HTTP authentication, make sure that you have set a password for the camera first.

For more information, see Configuring User Accounts Settings on page 82.

Authentication (digest): User credentials are encrypted with MD5 algorithm which provide

better protection against unauthorized accesses.

HTTP port: By default, the HTTP port is set to 80. It can also be assigned to another port

number between 1025 and 65535.
