Honeywell 60 Series IP Camera Software Configuration Guide

5 Configuring PTZ Settings

This section describes how to control the camera’s Pan/Tilt/Zoom operation.

PTZ Settings

Go to Setup  PTZ Setup PTZ Settings.

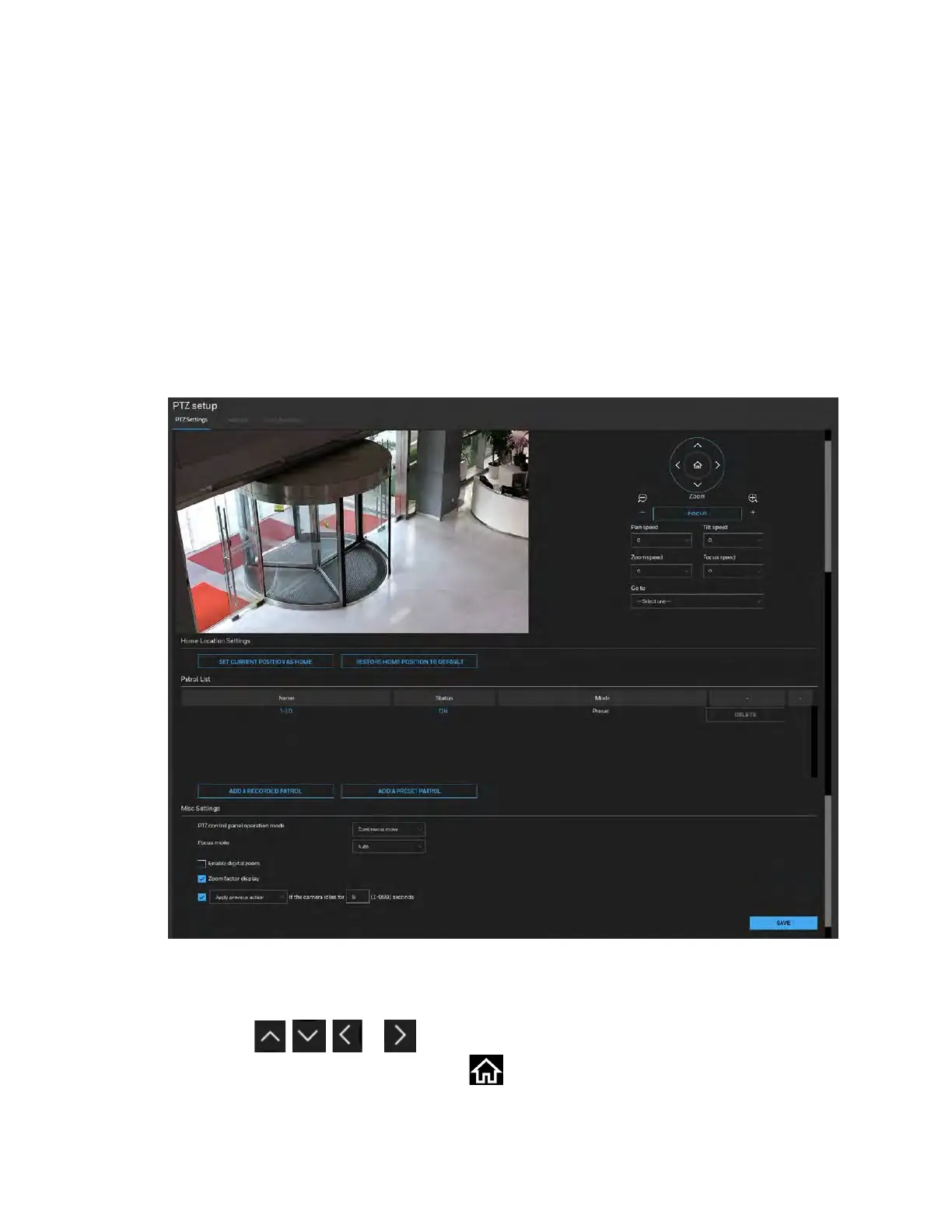

Figure 5-1 PTZ Setup

PTZ Operations

Move: Click , , ,or to move the video image up, down, to the left or to the

right. To return to the home location, click .
