Honeywell 60 Series IP Camera Software Configuration Guide

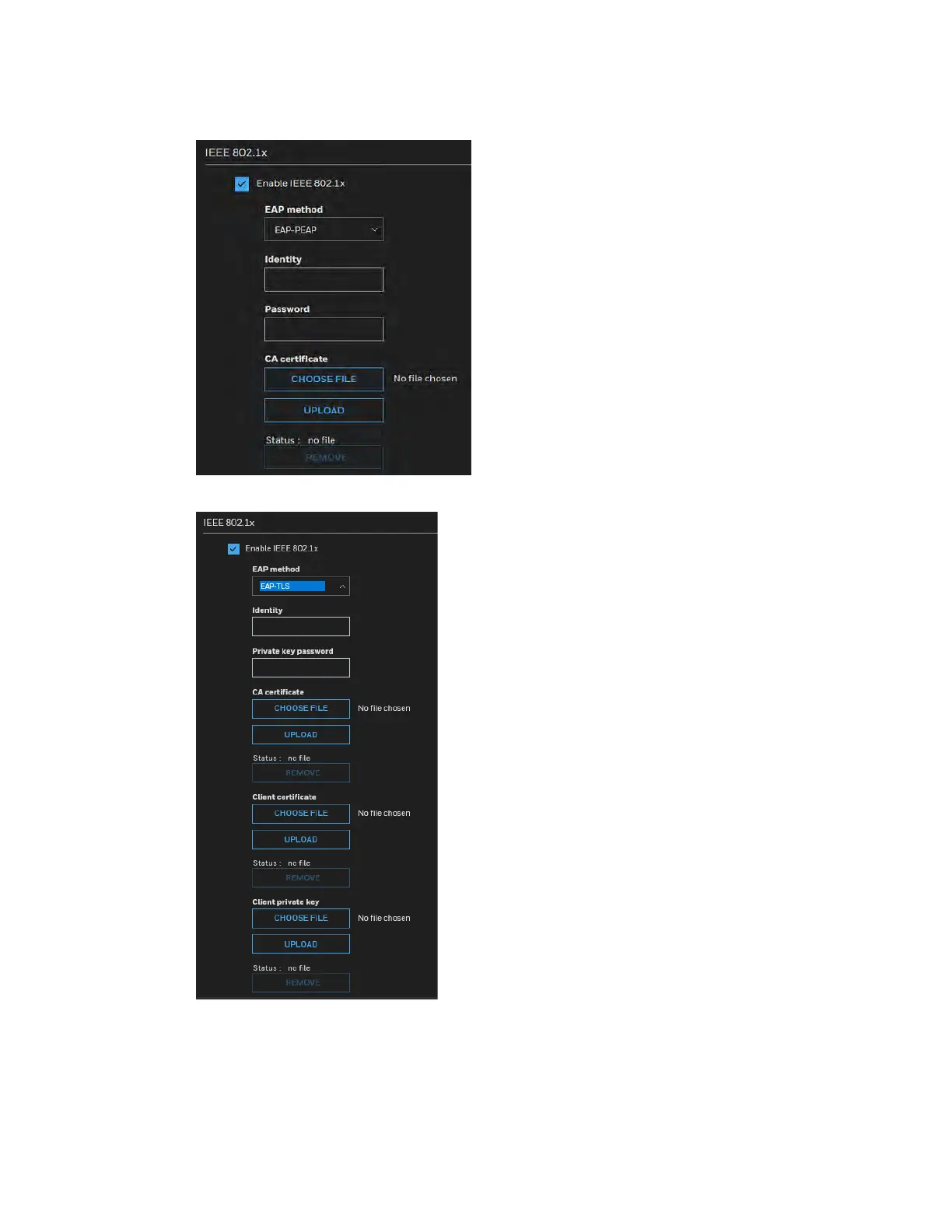

Figure 6-15 IEEE 802.1X Configurations – EAP-PEAP

Figure 6-16 IEEE 802.1X Configurations – EAP-TLS

Select EAP-PEAP or EAP-TLS as the EAP method. Enter your ID and password issued by

the CA, and then upload related certificate(s).

3. When all settings are complete, move the camera to the protected LAN by connecting it to

an 802.1x enabled switch. The devices will then start the authentication automatically.

Table of Contents8
