Honeywell Mini-AT - Mini-AT to External Modem Connections

To Next Page

To Previous Page

www.honeywell.com

Page 34

Mini-AT User Guide

Figure 12

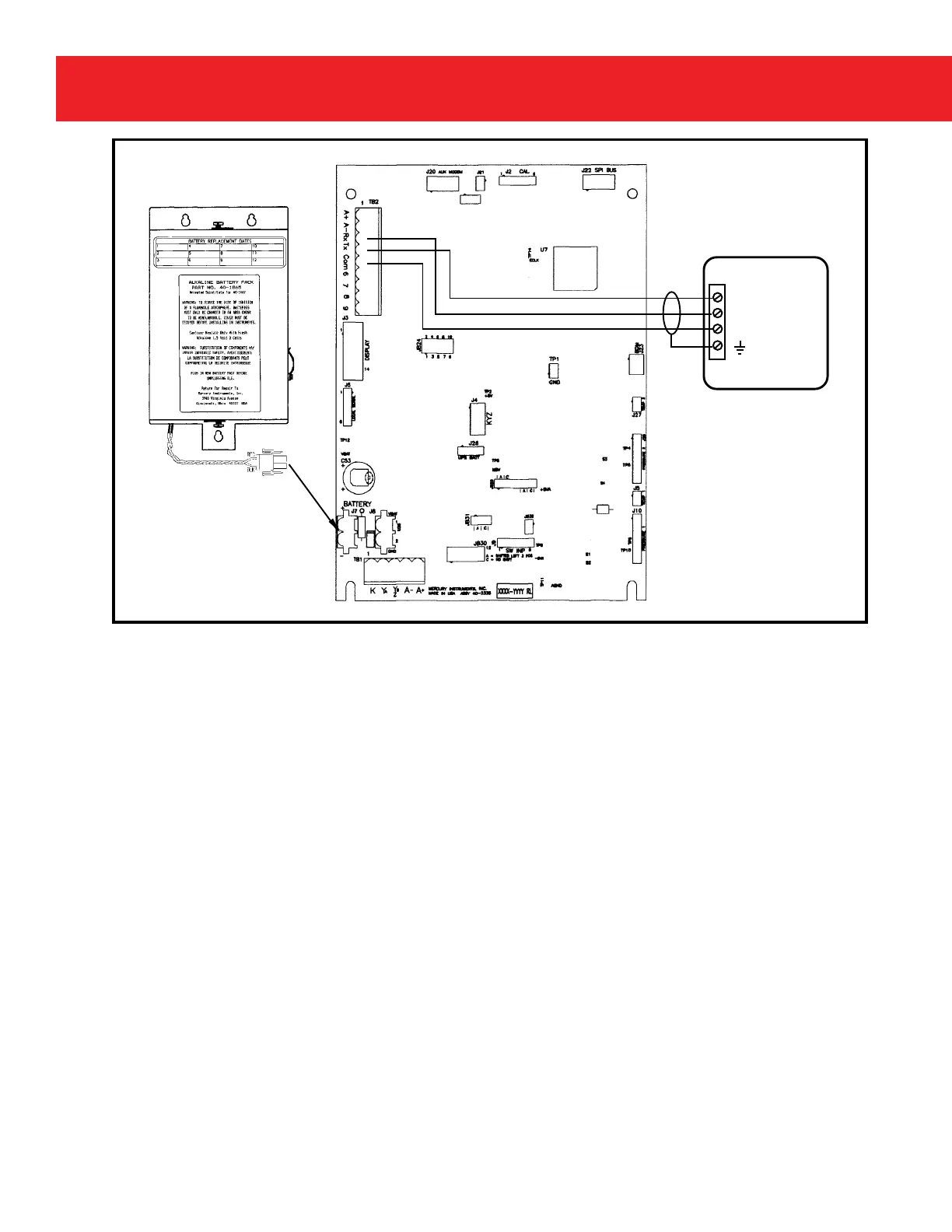

Mini-AT to External Modem Connections

External

Modem

Com

Note: Some External Modem

Connections will require

wiring Rx to Rx and Tx to Tx

to Communicate. Check the

modem manufacturers

documentation for the proper

wiring.
