Mini-AT User Guide
Mag List 2
Mag List 2 consists of twelve item codes (075-086) which define what items will appear in section 4 of
the meter reader list. The factory default items are listed below, however any Mini-AT item code can
be placed into Mag List 2. If less than twelve items are required, place the value “255” into the item code
location after the last desired Mag List 2 item.
Fig. 16

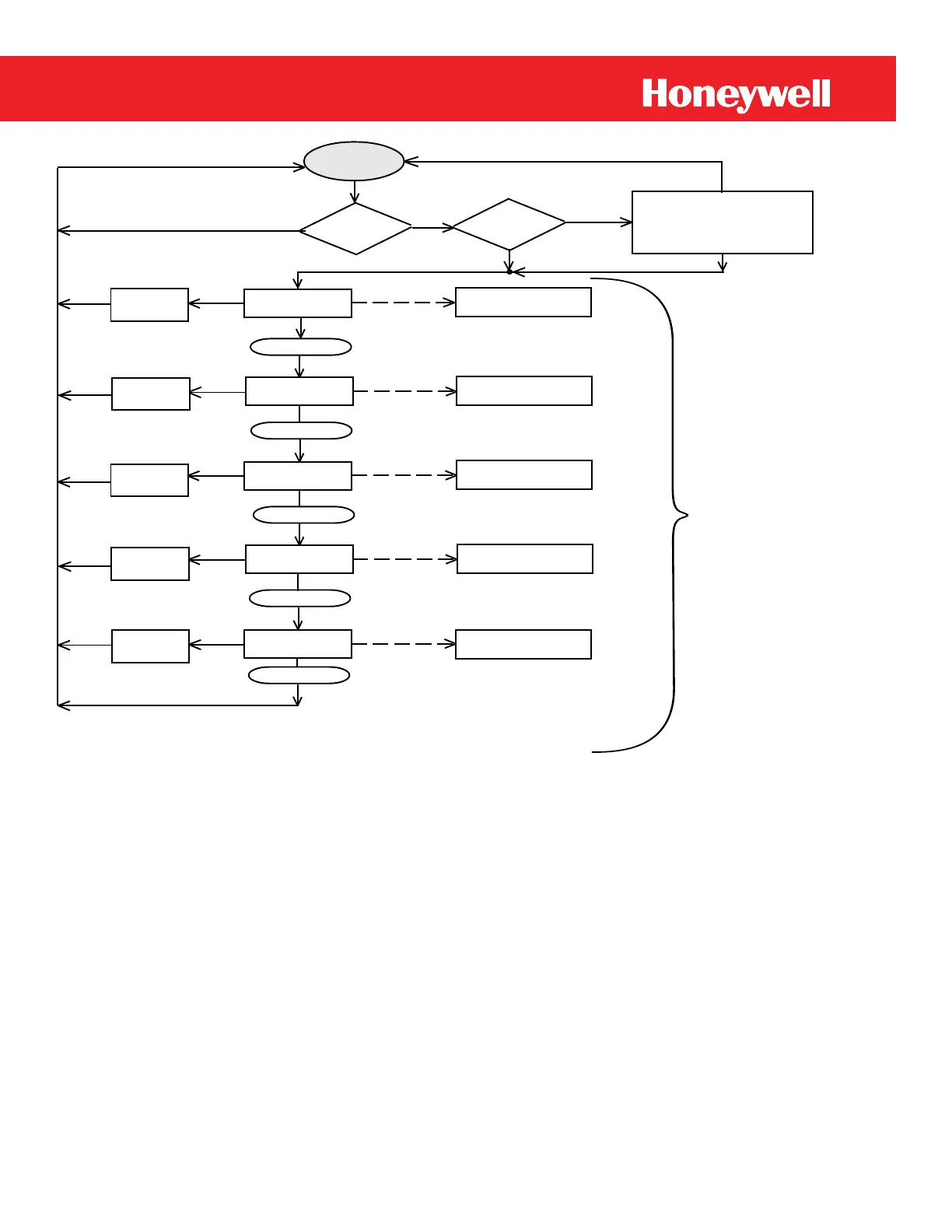

Meter Reader List For Example # 2
CORRECTOR
MODE
DISPLAY TEST
1- MINUTE
TIME-OUT
MAG WAND
CORRECTED
VOLUME
ALARMS CODE
DISPLAY AS OUTLINED IN
FIGURE 12
Examples of
LCD Displays
LIVE PCor GAS
PRESSURE
MAG WAND
INPUT
no
yes
ALARMS
PRESENT?
0 8 2 4 1 7
0 5 9 3 2 9 6
6 0 .4 7
8.8.8.8.8.8.8.8
4 5 .4 2
no
yes
MAG WAND
MAG WAND
MAG WAND
MAG WAND
1- MINUTE
TIME-OUT
1- MINUTE
TIME-OUT
10-
MINUTE
TIME-OUT
10-
MINUTE
TIME-OUT
UNCOR-
RECTED
VOLUME
LIVE GAS
TEMPERATURE
