Mini-AT User Guide

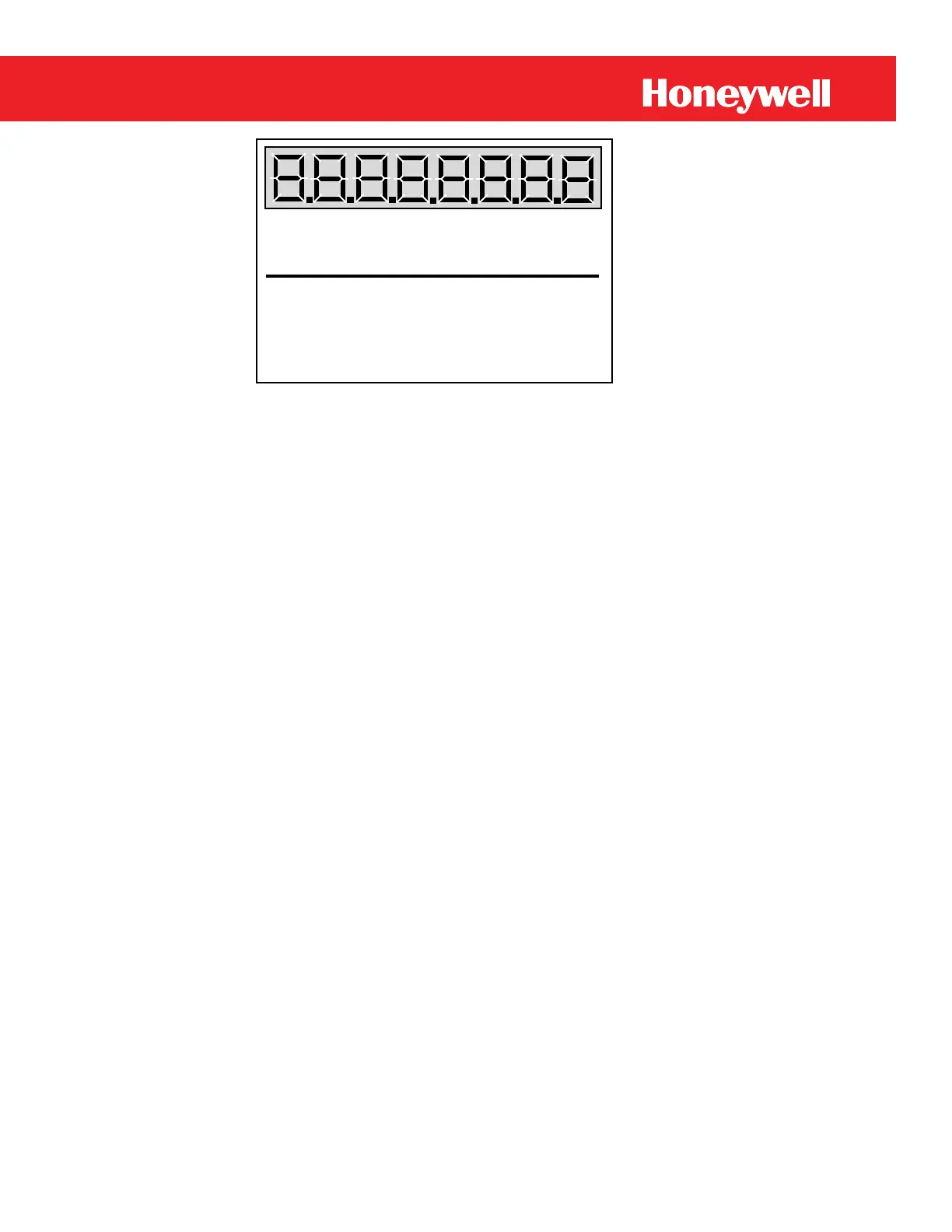

Fig. 14
Display Test
and
Default Window Label
CORRECTED VOLUME

METER READER LIST:
UNCORRECTED VOLUME
CORRECTED VOLUME
GAS PRESSURE
GAS TEMPERATURE
SELECTED ITEMS 1 - 9
MCF
CCF
MCF
While the last meter reader item is displayed, the next mag wand input will cause the LCD to go blank for 1-
second while the instrument processes any stored uncorrected input pulses, prior to returning to the Corrector
Mode
Listed below is the configuration of item codes required to create the default Mini-AT Meter Reader
List.
Item Item Legend Selected Description
Code# Item
130 Mag List 1 Item #1 061 Display Test
131 Mag List 1 Item #2 002 Uncorrected Volume
132 Mag List 1 Item #3 000 Corrected Volume
133 Mag List 1 Item #4 255 End-of-List
134 Mag List 1 Item #5 255 End-of-List
135 Mag List 1 Item #6 255 End-of-List
129 Live Display Enable Live P&T Live Pressure & Temperature
075 Mag List 2 Item #1 200 Site ID
076 Mag List 2 Item #2 113 High Resolution CorVol
077 Mag List 2 Item #3 013 Base Pressure
078 Mag List 2 Item #4 014 Atmospheric Pressure
079 Mag List 2 Item #5 025 Transducer Range
080 Mag List 2 Item #6 044 Pressure Correction Factor
081 Mag List 2 Item #7 043 Total Corrector Factor
082 Mag List 2 Item #8 048 Battery Voltage
083 Mag List 2 Item #9 031 Case Temperature
084 Mag List 2 Item #10 203 Time
085 Mag List 2 Item #11 204 Date
086 Mag List 2 Item #12 255 End-of-List
