Honeywell Mini-AT User Manual

12
www.honeywell.com
Page 12
Mini-AT User Guide

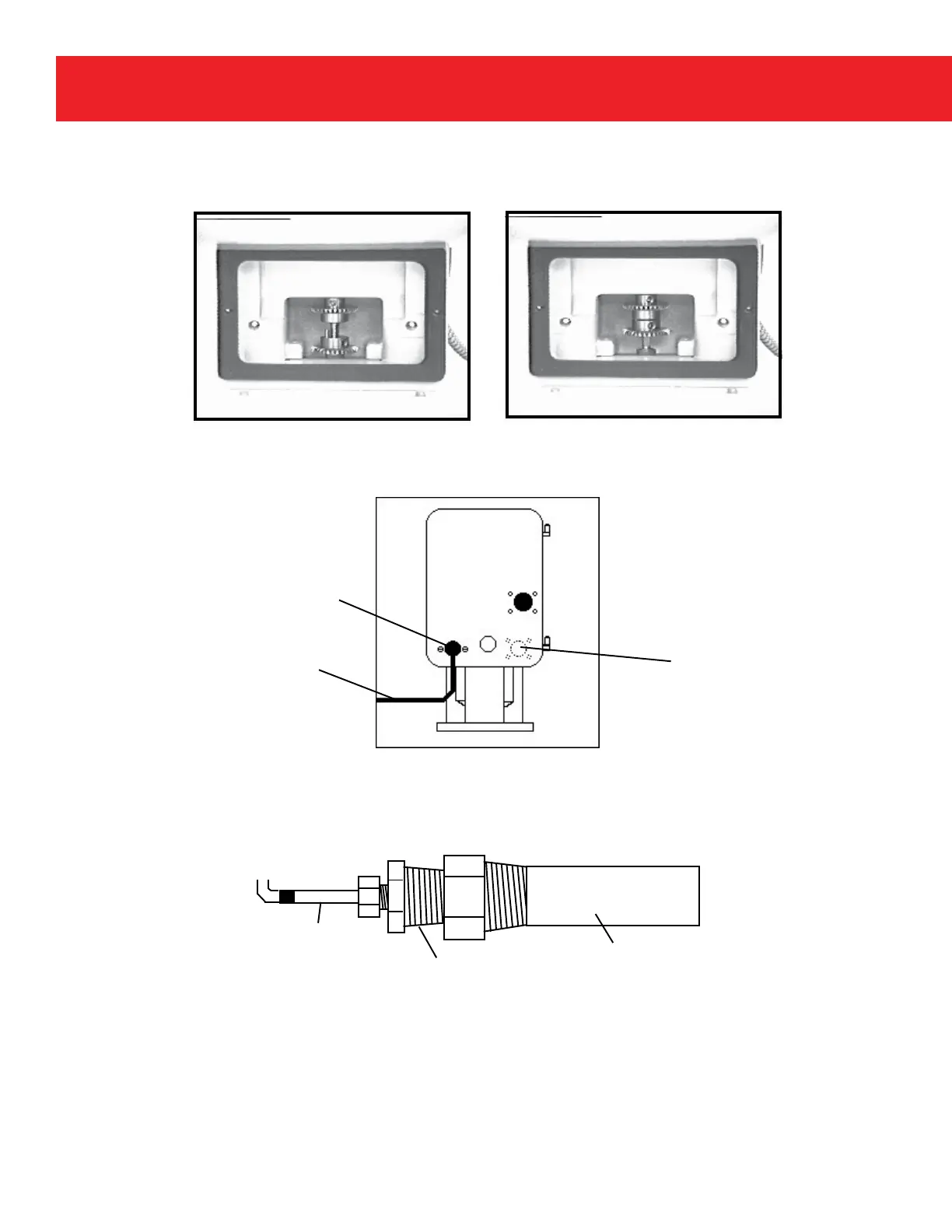

assembly and shift the lower bevel gear to the proper location.
12. Connect the pressure line to the 1/4" NPT fitting at the back of the instrument.
13. Insert the slip-along fitting into the thermowell, and place the temperature probe into the slip-along
fitting, sliding the probe down until it bottoms out in the thermowell before tightening the slip-along nut
14. At this point the instrument should be ready for operation.
Thermowell
Temperature
Probe
Slip-Along
Fitting
Bevel Gear DOWN for CW Bevel Gear UP for CCW
Pressure
Line
Optional 2nd
Pressure Port
1/4” NPT
fitting
Mini-AT
(back view)
