NFS2-3030 Programming Manual — P/N 52545:K1 03/20/2012 109
Abort Switches Releasing Applications
How to Program a Second Shot Switch
The following contains information needed to program a Second Shot switch for a monitor module
Description A monitor module—connected to a UL-listed manual station (such as the
NBG-12LRA)—used as for a s
econd release of agents. A Second Shot switch overrides a Delay
Timer programmed to the same Releasing Zone.
Program Select a monitor module for the manual release function. Wh
ile programming the
module (refer to Section 3.4.2, “Module Point”, on page 51 for instructions)
1. Select the
SECOND SHOT Type Code.
2. Enter the number of the desired releasing zone into the module’s zone map. The releasing zone
must be
fully programmed (refer to Section 3.4.4, “Releasing Zone”, on page 57).
Example A programming example of a monitor module programmed as a MAN REL DELAY
switch for
the first shot and a SECOND SHOT switch for the second shot.

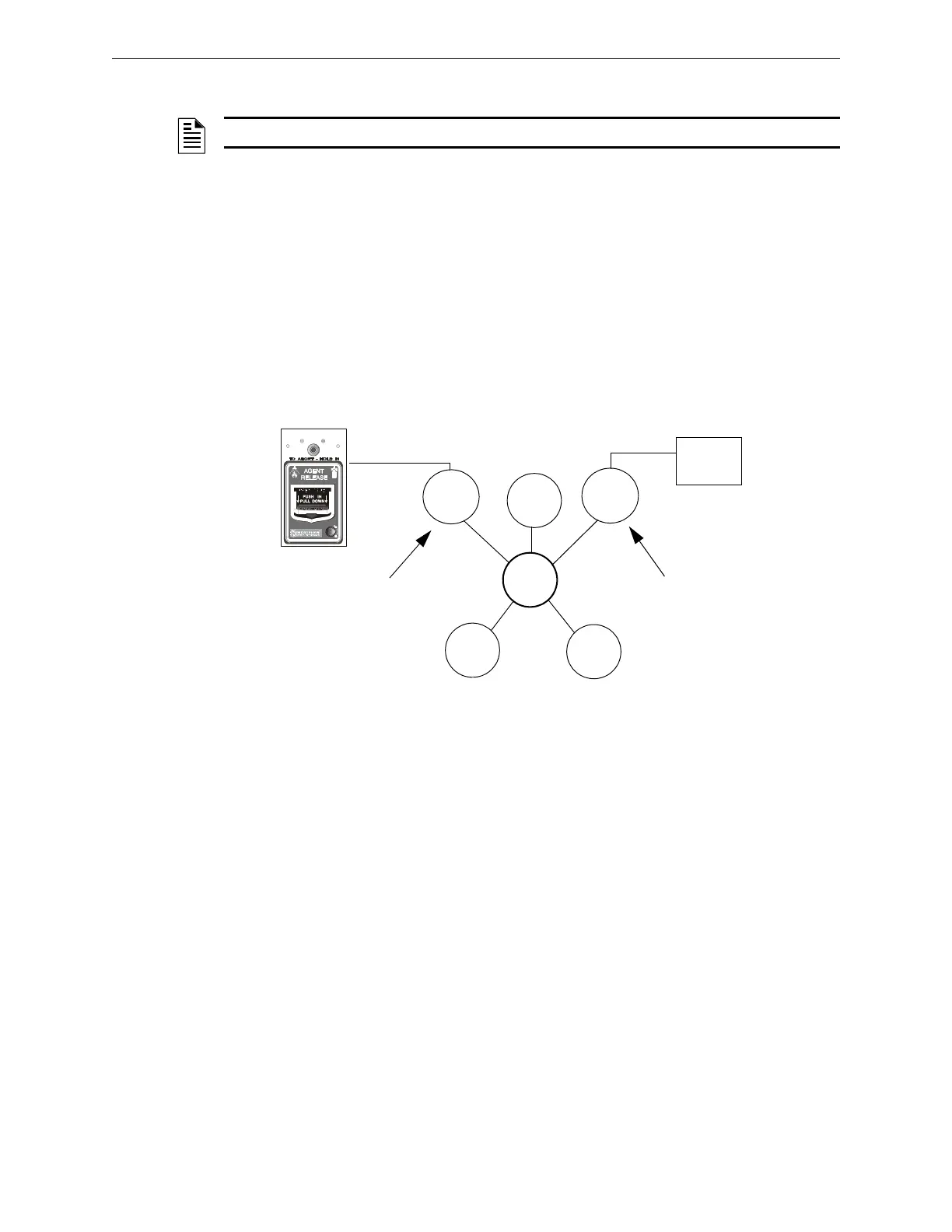

Figure B.12 Monitor Module Configured as a Second Shot Switch
With two monitor modules configured as shown above, program releasing zone ZR05 for the
follo
wing releasing selections: 
Delay Time = 15, Abort Switch = ULI, Cross Zone = Y, Soak Time = 30
ZR05 can be activated in one of two ways, as described in
the examples given below.
Example 1: If the
detector initiates the alarm, ZR05 activates. Releasing begins after the delay
timer has expired (15 seconds). Releasing will continue for the soak timer duration (30 seconds).
The Second Shot switch can then be activated, and will remain activated for the soak timer
duration. Once the soak timer expires, the Second Shot switch can then be activated to initiate an
additional soak cycle.
Example 2: If the NBG
-12LRA (Type Code MAN REL DELAY) lever is pulled, the manual release
delay timer begins its 10 second countdown. Releasing will begin after the manual release delay
timer has expired, and will continue for the soak timer duration (30 seconds). The Second Shot
switch can then be activated, and will remain activated for the soak timer duration. Once the soak
timer expires, the Second Shot switch can then be activated to initiate an additional soak cycle.
NOTE: The Second Shot switch can only be used with the MAN REL DELAY Type Code.
NBG-12LRA station with
Manual Release lever
ZR05
Detector
Monitor
Module
Monitor
Module
Type Code
MAN REL DELAY
SYSTEM
NORMAL
SYSTEM
ACTIVATED
Type Code
SECOND SHOT
Second
Shot
Switch
SLC
output
module
SLC
output
module
