Walk Test Alter Status
DISABLE ACS BOARDS: This soft key allows the operator to disable ACS devices during Walk
Test. Press to toggle between the two choices, YES (disable) and NO (enable). Default: YES
4.6.2 Walk Test Loops Parameters
This screen appears when LOOPS is chosen as a parameter at the Walk Test Menu.
The chosen settings are displayed (BASIC
, AUDIBLE in Figure 4.10), and installed loops will
display with a participation field. The up and down arrow keys on the keypad navigate through the
fields. Ch
oose YES for participation, NO for no participation, using the
NEXT SELECTION(+)/PREVIOUS SELECTION(-) keys on the keypad.
Soft Keys
START TEST: Press to
begin Walk Test using the chosen parameters. Once Walk Test has begun,
this soft key becomes ABORT, and can be pressed at any time to exit Walk Test.
PANEL The entire panel - all devices/points set to
participate in Walk Test - will participate with
the exception of logic equations, whose
activation is suspended. When an input test
is initiated, only the outputs on the
corresponding loop will activate.
The entire panel - all devices/points set
to p
articipate in Walk Test - will
participate. When an input test is
initiated, outputs mapped on all loops
will activate.
DEVICES Individual detectors tested one at a time. Detectors only.
ZONE For BASIC Walktest only. When the zone
enter
ed in
the parameter field is present in a
device’s first (primary) CBE location, that
device will go into Walk Test when the
parameter zone is put into Walk Test. When
an input test is initiated, outputs mapped to
the corresponding zone on all loops will
activate.
n/a
If this
pa
r
ameter is
chosen…
The participating devices/points in Basic
Test will be…
The participating devices/points in
Advanced Test will be…
Table 4.1 Walk Test Parameters (2 of 2)
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
10:22:34A TUE JAN 25, 2011
WALK TEST
SETTINGS: BASIC, AUDIBLE, LOOPS
L1:NO L2:NO L3:YES
L4:NO L5:NO L6:YES
L7:NO L8:NO L9:YES
L10:NO
START TEST
BACK
Once the START TEST soft key has been pressed and the
test begun, this message changes to ABORT

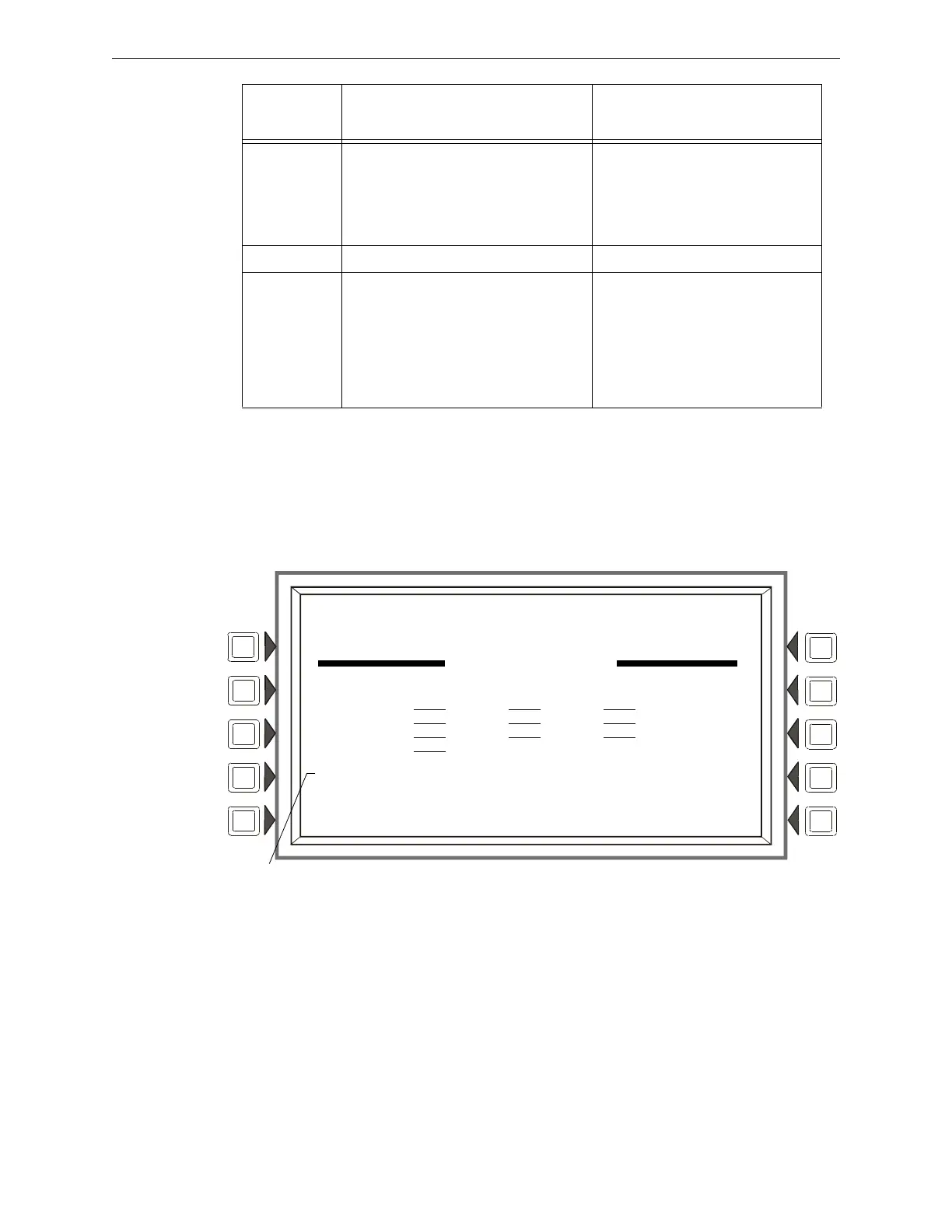

Figure 4.10 Walk Test Loops Programming Screen
