114 NFS2-3030 Programming Manual — P/N 52545:K1 03/20/2012
Releasing Applications Abort Switches
How to Program a Release Audible Circuit
The following contains information needed to program a Release Audible circuit for an SLC output
module
.
Description An output module programmed to activate an audio or visual device when all
releasing outputs, programmed to the same Releasing Zone, turn on. Multiple outputs with the
REL AUDIBLE Type Code can be mapped to the same Releasing Zone. When the Releasing Zone
activates, all outputs with the
REL AUDIBLE Type Code activate at the same time.
Program Select a control module to use as a releasing circuit. While p
rogramming the point
(refer to the Point Programming section of this manual for instructions),
1. Select the
REL AUDIBLE Type Code,
2. Enter the number of the desired Releasing Zone into the module’s zone map. The releasing
zone mu
st be fully programmed (refer to Section 3.4.4, “Releasing Zone”, on page 57).
Example A programming example of a control module programmed as a Release Audible circuit
fo
r Releasing ZoneZR05.

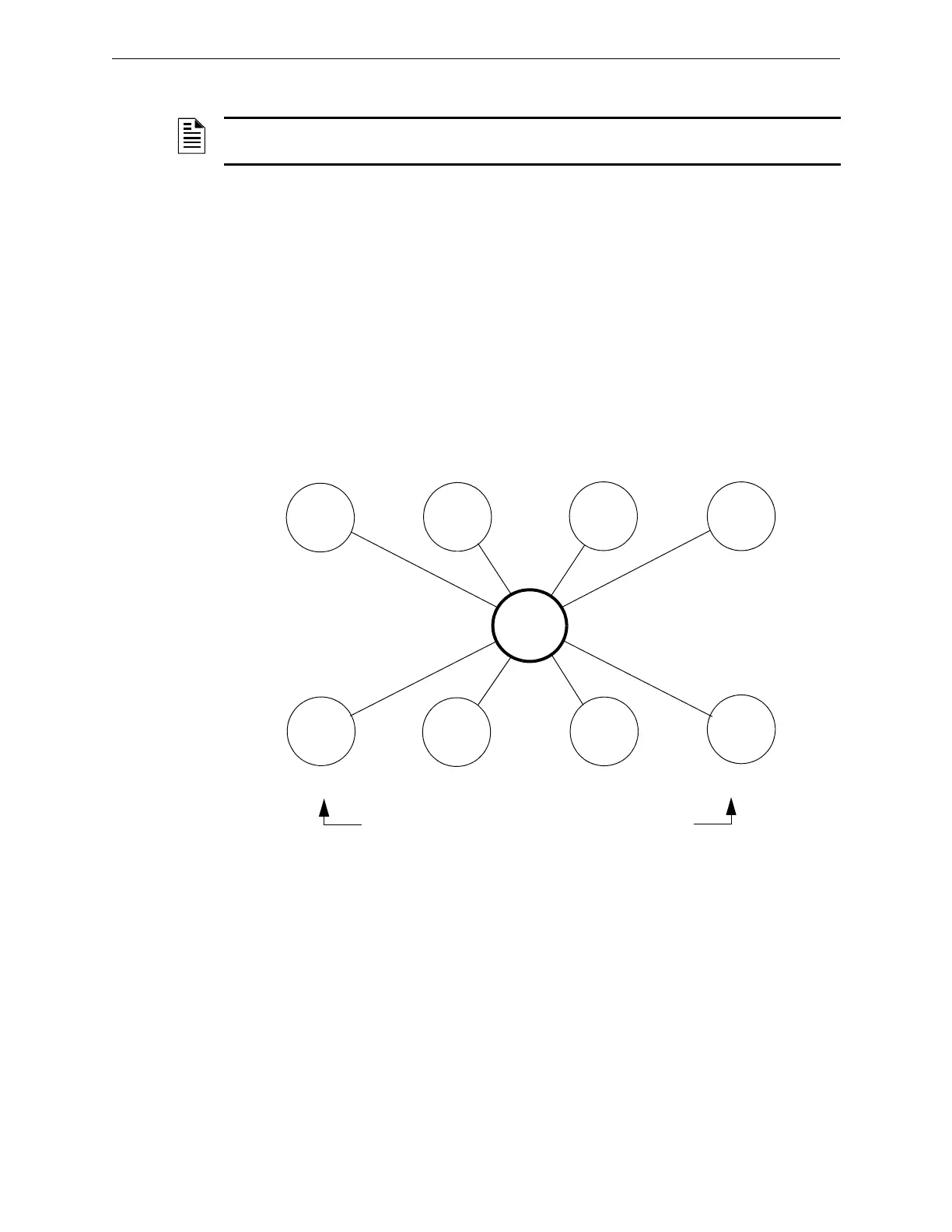

Figure B.17 Output Module Configure
d
as a Release Audible Circuit
NOTE: An output with a REL AUDIBLE Type Code requires the following selections: a Releasing
Zone; an output circuit mapped to the same Releasing Zone; Switch Inhibit.
Type Code
REL AUDIBLE
Type Code
RELEASE CKT
Type Code
RELEASE CKT
Type Code
REL AUDIBLE
For example, an output module programmed with the REL
AUDIBLE Type Code activates simultaneously with other
outputs (modules A & B) programmed for ZR05.
ZR05
Monitor
Module
Detector
Detector
Detector
Output
module
SLC
output
module
A
SLC
output
module
B
Output
module
To Next Page
