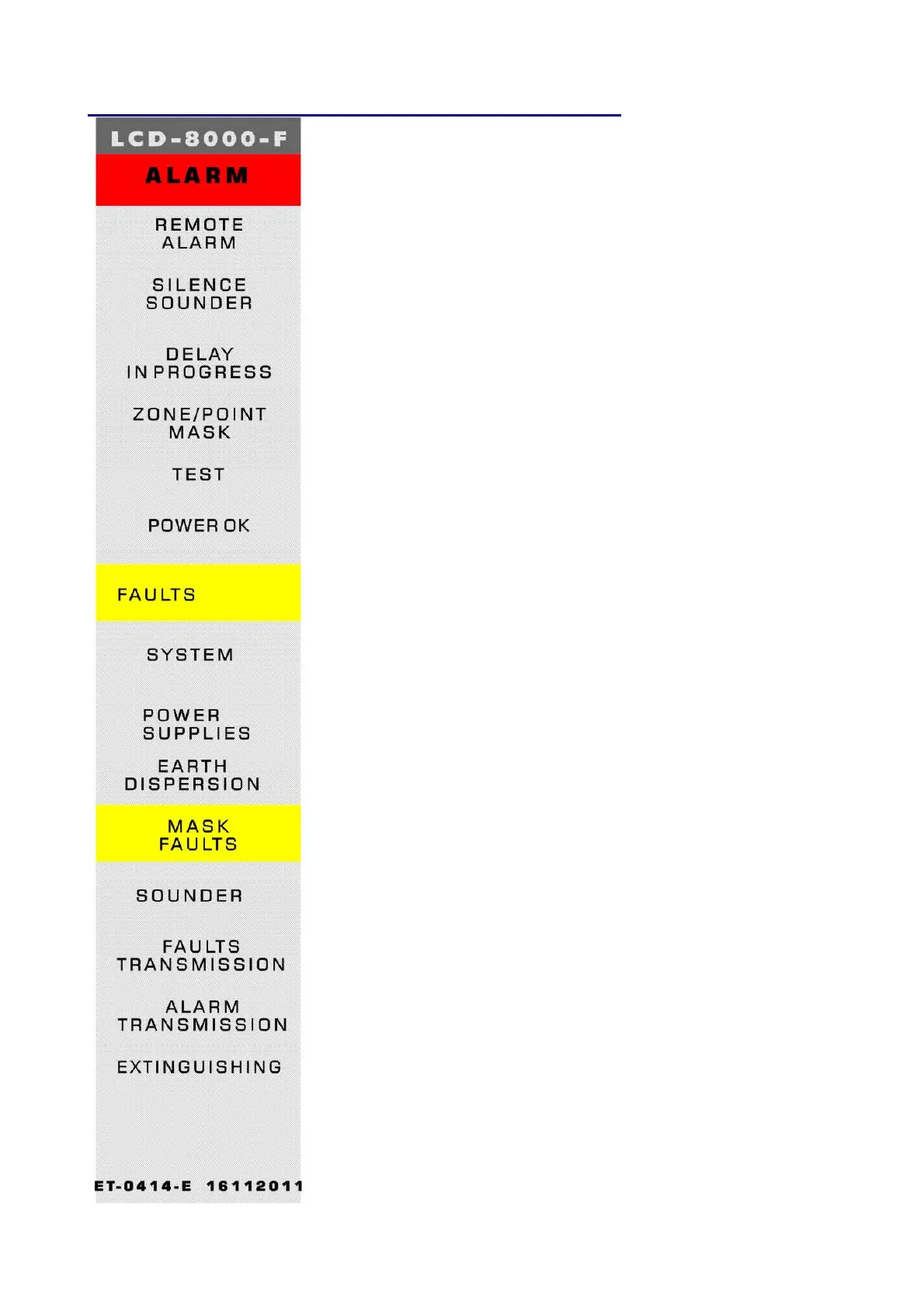

LIGHT SIGNALLINGS OF THE FRONT PANEL
ALARM (Red):
It flashes if there is at least one device in alarm and it has not been recognized yet. It is
permanently lit if all alarm events have been recognized.
ACTIVE REMOTE ALARM (Red):
it is permanently lit if the output towards the fire alarm transmission devices (telephone dial) has
been activated.
SILENCE SOUNDER (Yellow):
It is lit after the Siren Silencing control is performed.
DELAY IN PROGRESS (Yellow):
It is lit if the immediate output activation has been disabled; apply to type C outputs (sounder
output) and type E (alarm transmission through telephone dial). Through this disablement, in case
of alarm the system delays the above mentioned outputs for the programmed times. During the
delay time the led flashes and it is possible to reset the current delay through the “reset delay”
key at lev.1.
ZONE/POINT MASK (Yellow):
It is lit when there is at least one Zone or a Point Disabled in the system.
TEST (Yellow):
It is lit during Zone Walk Test
POWER OK (Green):
It is permanently lit if the control unit is powered (by 230Vac or by batteries).
FAULT (Yellow):
It flashes if there is at least one fault of any type and it has not been recognized yet.
It is on if all faults have been recognized
SYSTEM (Yellow):
It is lit if there is at least a system fault (watch dog, CRC memory error, etc.)
POWER SUPPLIES (Yellow):
It is lit if there is a power supply Fault.
EARTH DISPERSION (Yellow):
It is permanently lit when the positive or negative is earthed.
SOUNDER (Yellow):
It is lit if the siren output is disabled.
It flashes when the siren output is in Fault condition
FAULTS TRANSMISSION (Yellow):
It is lit if the Fault transmission output is disabled (telephone dial).
It flashes when the Fault transmission output is in Fault condition.
ALARM TRANSMISSION (Yellow):
It is lit if the alarm transmission is disabled (telephone dial).
It flashes when the alarm transmission output is in Fault condition
EXTINGUISHING (Yellow):
It is lit if the output towards the automatic fire-fighting system (UDS) is disabled
It flashes when the fire-fighting control output is in Fault condition
