Honeywell NOTIFIER SFP-5UD Series User Manual

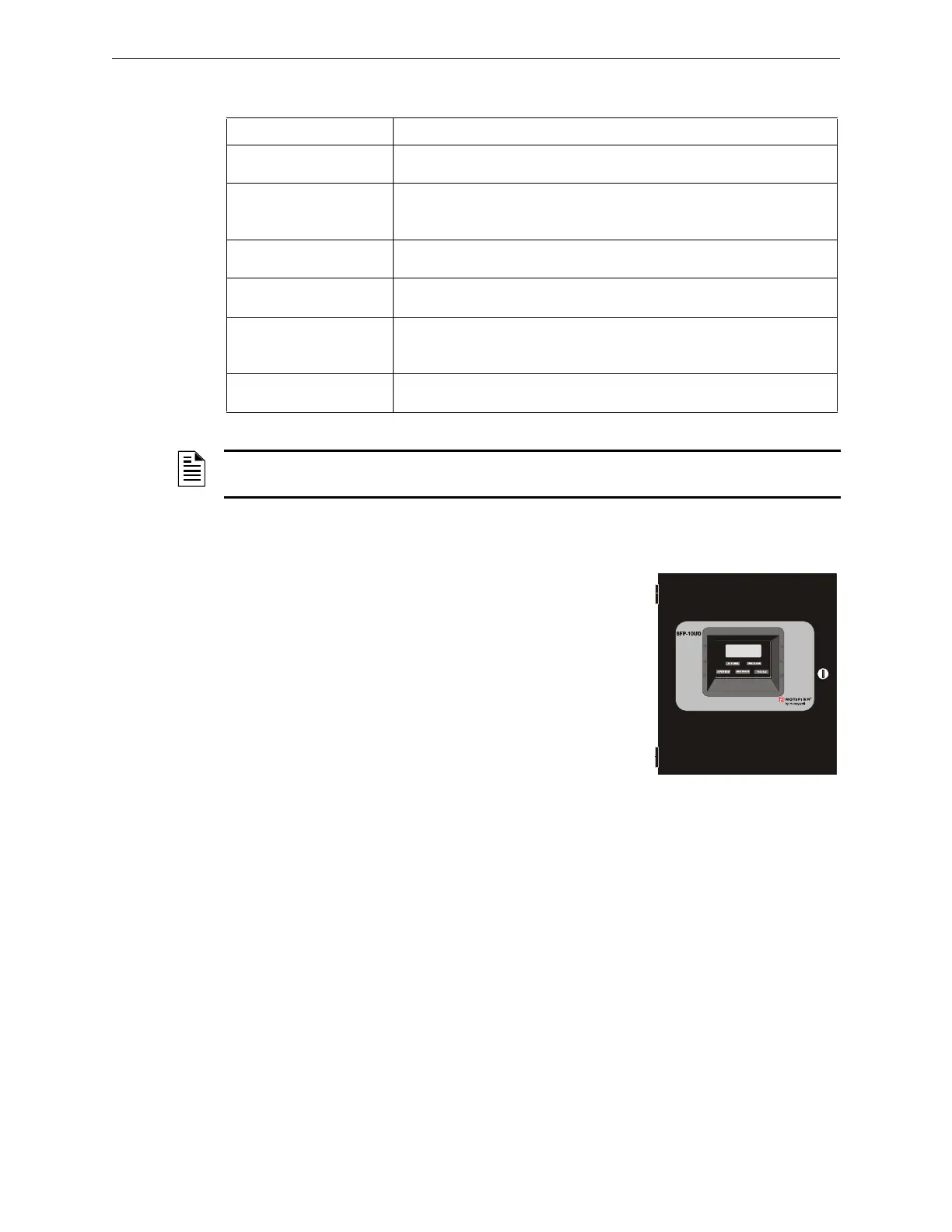

14 SFP-5UD & SFP-10UD Series Manual— P/N 52879:C2 1/24/2012
Product Description Product Features
The following versions of the SFP-5UD and SFP-10UD are available:
1.1 Product Features
• Built-in DACT (Digital Alarm Communicator/Transmitter)
• Style B (Class B) IDC (Initiating Device Circuit)
 SFP-5UD - five programmable IDCs
 SFP-10UD - ten programmable IDCs
• Four Style Y (Class B) NAC (Notification Appliance Circuit)
- special application power
• Three programmable Form-C relays
• Built-in Programmer
• Touchtone/Rotary dialing
• Programmable Make/Break Ratio
• Optional Dress Panel: DP-51050B (black) or DP-51050 (red)
• A modified Dress Panel is provided standard with Canadian models: includes an N-ANN-LED
Annunciator module
• Optional Trim Ring TR-CE (red) or TR-CE-B (black) for semi-flush mounting the cabinet
• ANN-BUS for connection to optional:
 N-ANN-80 Remote LCD Annunciator
 N-ANN-I/O LED Driver
 N-ANN-S/PG Printer Module
 N-ANN-RLY Relay Module
 N-ANN-LED Annunciator Module
• 80-character LCD display (backlit)
• Real-time clock/calendar with daylight savings time control
• History log with 256 event storage
• Control Buttons
 ACK (Acknowledge)
FACP Version Description
SFP-5UD Five Zone Panel: 120 VAC with FLPS-3 power supply providing 3.0 amps
total 24 VDC output current
SFP-5UDC Five Zone Panel: 120 VAC with FLPS-7 power supply providing 7.0 amps
total 24 VDC output current. Includes built-in N-ANN-LED Annunciator.
This panel is approved for Canadian applications
SFP-5UDE Five Zone Panel: 240 VAC with FLPS-7 power supply providing 7.0 amps
total 24 VDC output current
SFP-10UD Ten Zone Panel: 120 VAC with FLPS-7 power supply providing 7.0 amps
total 24 VDC output current
SFP-10UDC Ten Zone Panel: 120 VAC with FLPS-7 power supply providing 7.0 amps
total 24 VDC output current. Includes built-in N-ANN-LED Annunciator.
This panel is approved for Canadian applications.
SFP-10UDE Ten Zone Panel: 240 VAC with FLPS-7 power supply providing 7.0 amps
total 24 VDC output current
NOTE: Unless otherwise specified, the information in this manual applies to all versions of the
panels.
