SFP-5UD & SFP-10UD Series Manual— P/N 52879:C2 1/24/2012 55
ANN-BUS Devices Installation
Mounting/Installation
The N-ANN-RLY relay module can be mounted inside the FACP main circuit board chassis or
inside the ROME Series enclosure. Refer to the N-ANN-RLY Installation Document #53318 for
instructions on chassis mounting or to the ROME Series Installation Document #53530 for mount-
ing in the separate backbox.
mounting holes
mounting hooks through
mounting slots
grounding wire
N-ANN-RLY
ANN-MBRLY
mounting bracket
mounting holes
mounting holes
FACP Backbox Installation
using ANN-MBRLY mounting bracket
FACP Chassis Installation
mounting holes
mounting holes
N-ANN-RLY on
ANN-MBRLY
mounting bracket
ROME Series Installation
using ANN-MBRLY mounting bracket

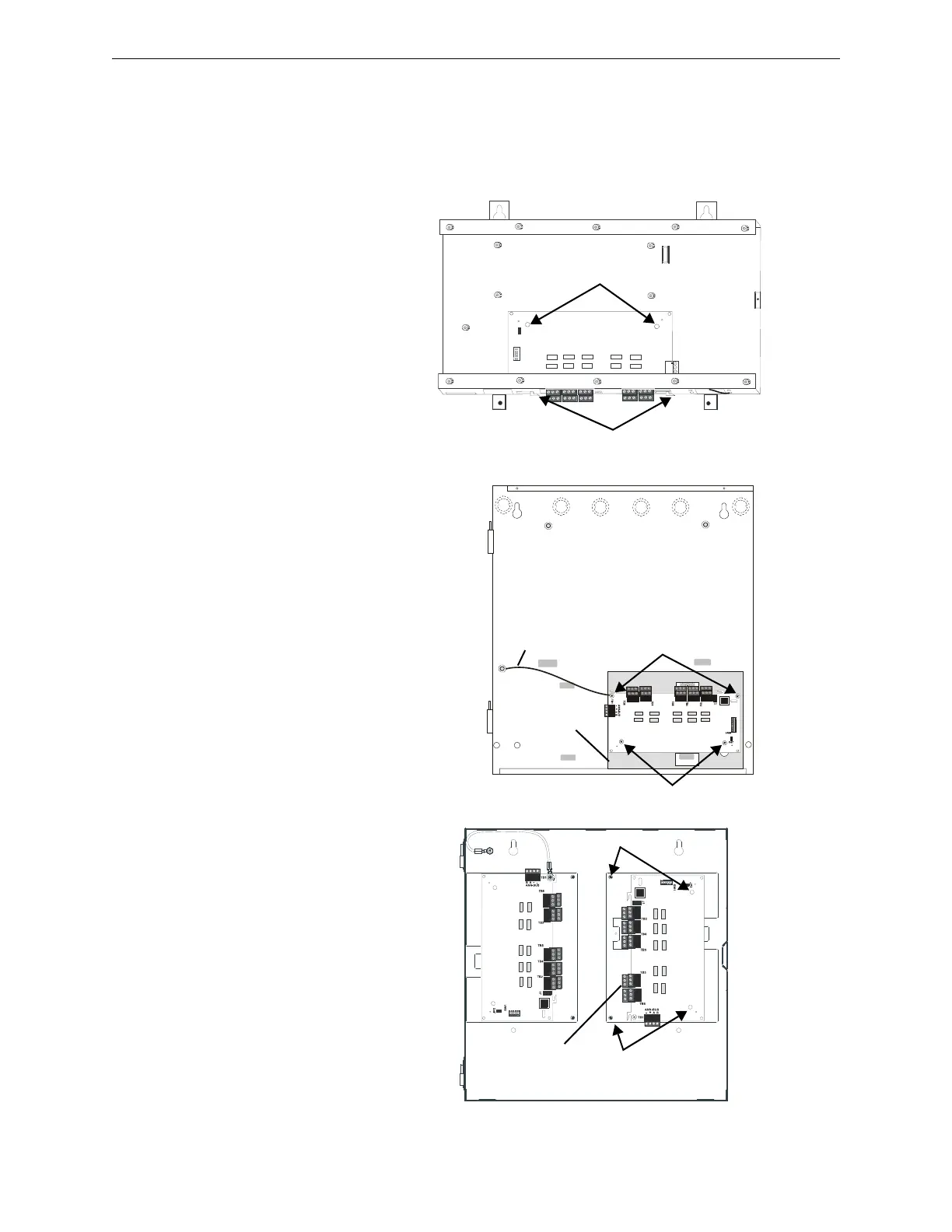

Figure 2.28 N-ANN-RLY Mounting Options
ann-rlyinchassis.wmf
ann_mbriyincab3.wmf
rome-relay-plate3.wmf
