ANN-BUS Devices Installation
Mounting
The N-ANN-80 can be surface or semi-flush mounted to a single, double or 4” square electrical
box. Select and remove the appropriate knockout(s), pull the necessary wires through the knock-
outs and mount the annunciator in or on the wall depending on the type of installation desired.
The ANN-SB80KIT(-R/-B/-W) is an available mounting kit for the ANN-80 annunciator. The kit
comes with a surface backbox and surface wedge for angled viewing. The two pieces can be used
separately or can be stacked together.
The N-ANN-80 cover must be attached to the annunciator backplate before mounting the annunci-
ator to the electrical box/wall. The cover cannot be reattached or removed after the annunciator has
been mounted.
Wiring N-ANN-80 to FACP
The following steps can be used as a guide to wire the annunciator. Make certain all power has
been removed from the FACP prior to annunciator installation.
1. Route wires from hole in backplate, through wiring channel and then to N-ANN-80 terminal
block TB1.
2. Remove appropriate amount of wire insulation.
3. Connect the wiring from the FACP ANN-BUS to annunciator TB1 terminals 3 (A) & 4 (B).
Make certain to connect A to A and B to B.
4. If appropriate, connect the wiring going to the next device on the ANN-BUS to TB1 terminals
3 & 4. Make certain to connect A to A and B to B.

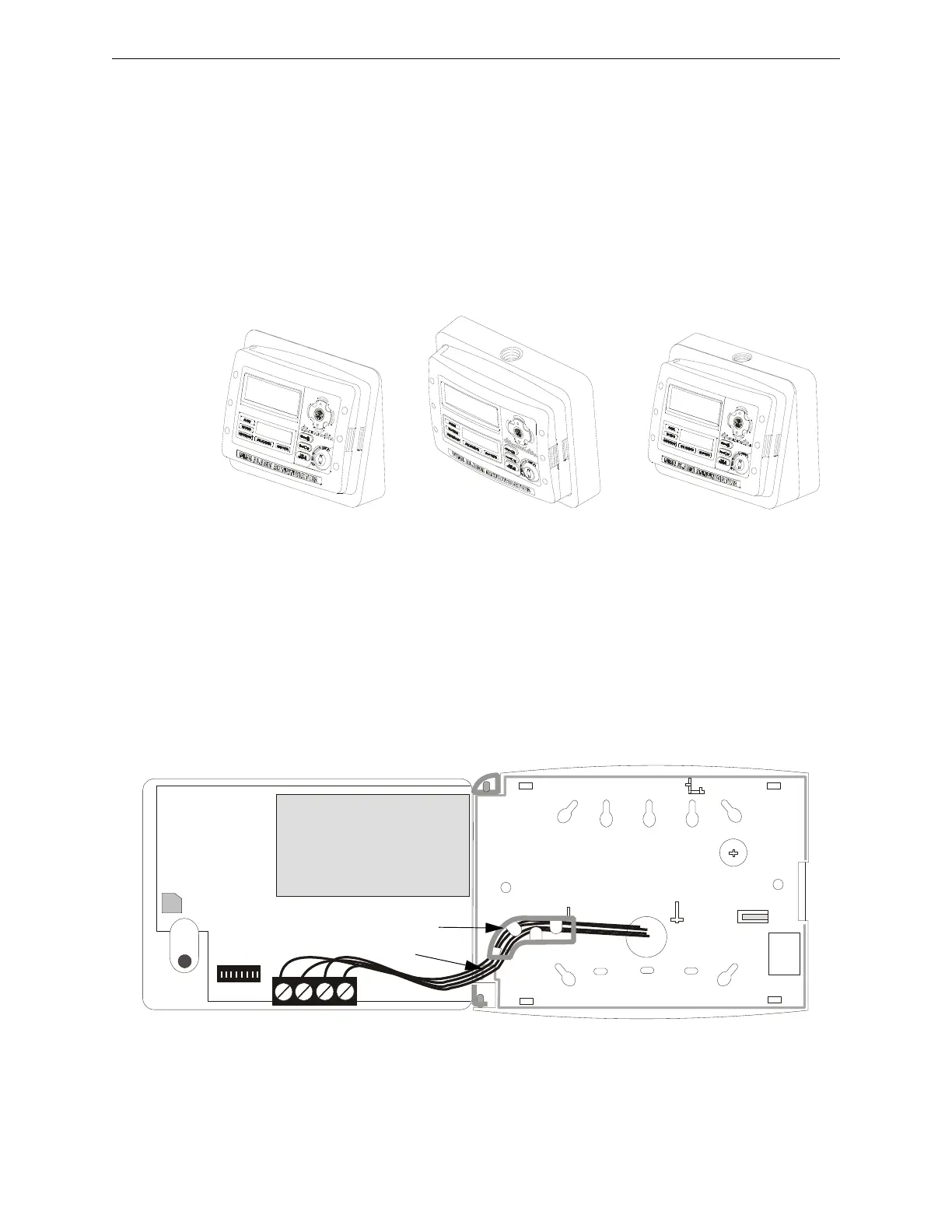

Annunciator mounted on
surface wedge from the
ANN-SB80KIT
Annunciator mounted on
surface backbox from the
ANN-SB80KIT
Annunciator mounted on
stacked surface wedge
and backbox from the
ANN-SB80KIT
ann80kitmount.wmf
wiring channel
wires
TB1
ann-80boxinside.wmf
