SFP-5UD & SFP-10UD Series Manual— P/N 52879:C2 1/24/2012 149
NFPA Standard-Specific Requirements
NFPA 72 Remote Station Protective Signaling System
Notes:
1. Cut Jumper JP30 on the SFP-5UD/SFP-10UD main circuit board to supervise placement of the
4XTM module.
2. Refer to“4XTM Transmitter Module Installation” on page 39 for detailed information.
RS82 Remote Station Receiver UL listed.
Refer to Instruction Manual for Remote Station Receiver Model RS82.
+ -
Polarity Shown is
Normal Standby
4XTM Transmitter Module
Cutting TBL Jumper allows the
reverse polarity circuit to open with
a system trouble condition if no
alarm condition exists.
Power-limited

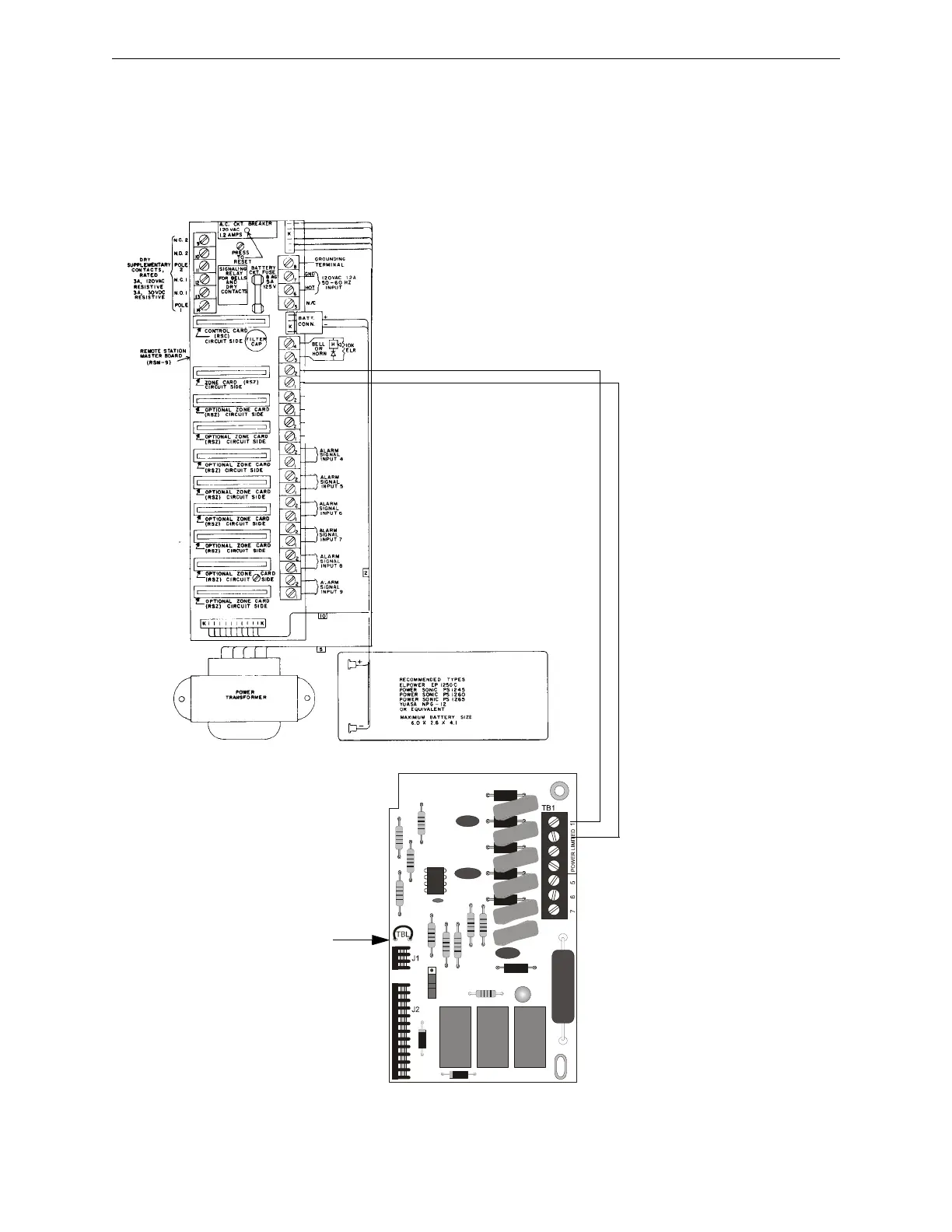

Figure B.3 Remote Station Connection Using 4XTM Module
+
-
(Dummy load with a 4.7K, ¼ watt resistor
when no connection is made)
