SFP-5UD & SFP-10UD Series Manual— P/N 52879:C2 1/24/2012 27
Backbox Mounting Installation
9050UDencl.wmf

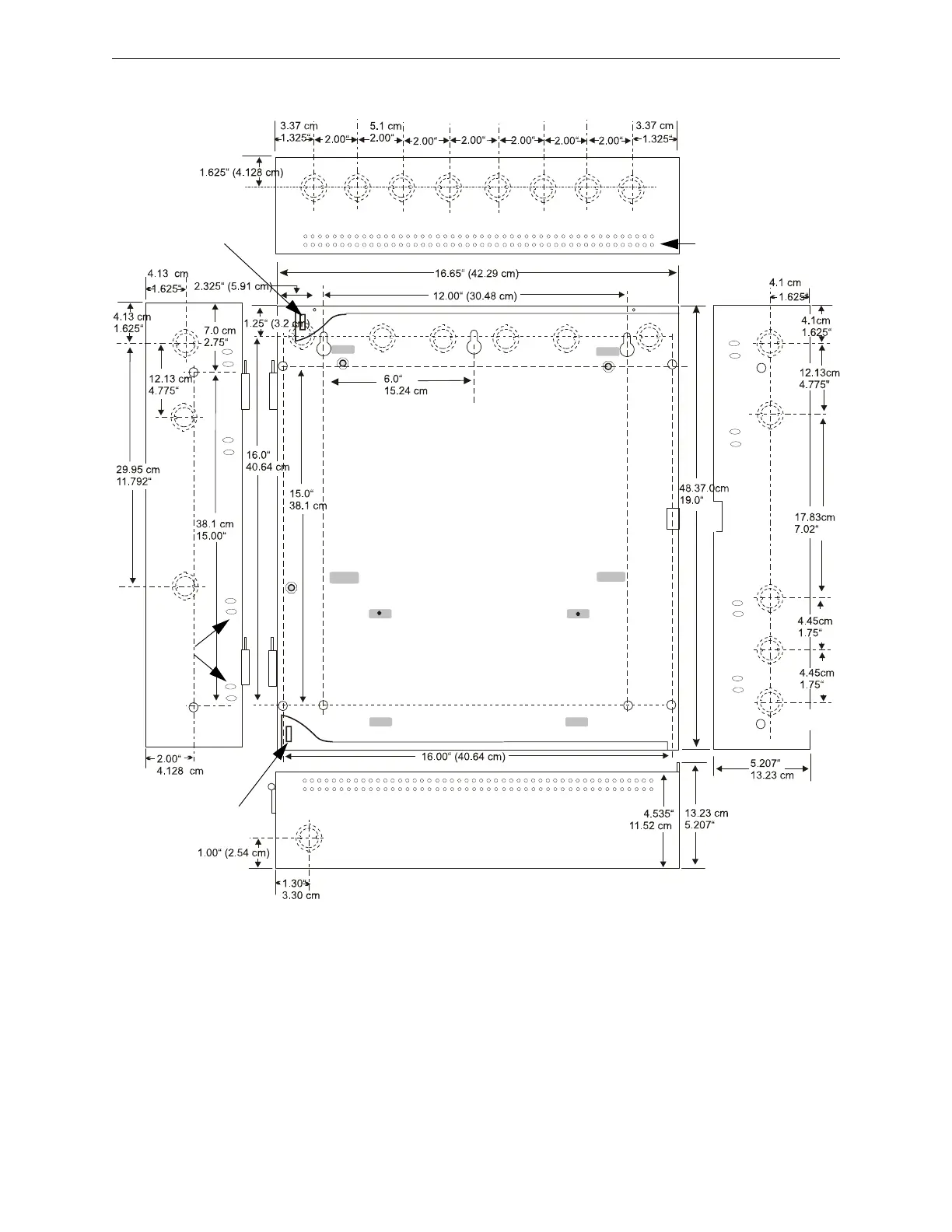

Figure 2.2 Cabinet Dimensions
Hinge Slot for optional
Dress Panel
Semi-
Flush
mounting
hole
Mounting
slots for
optional
Trim Ring
Hinge Slot for optional
Dress Panel
Semi-Flush Mounting
Do not recess box more
than 3.875” into wall to
avoid covering venting
holes on top of box.
