A.5 Configuring Smart Meter Using Pushbuttons, Continued
Setting Lower Display
Values, continued

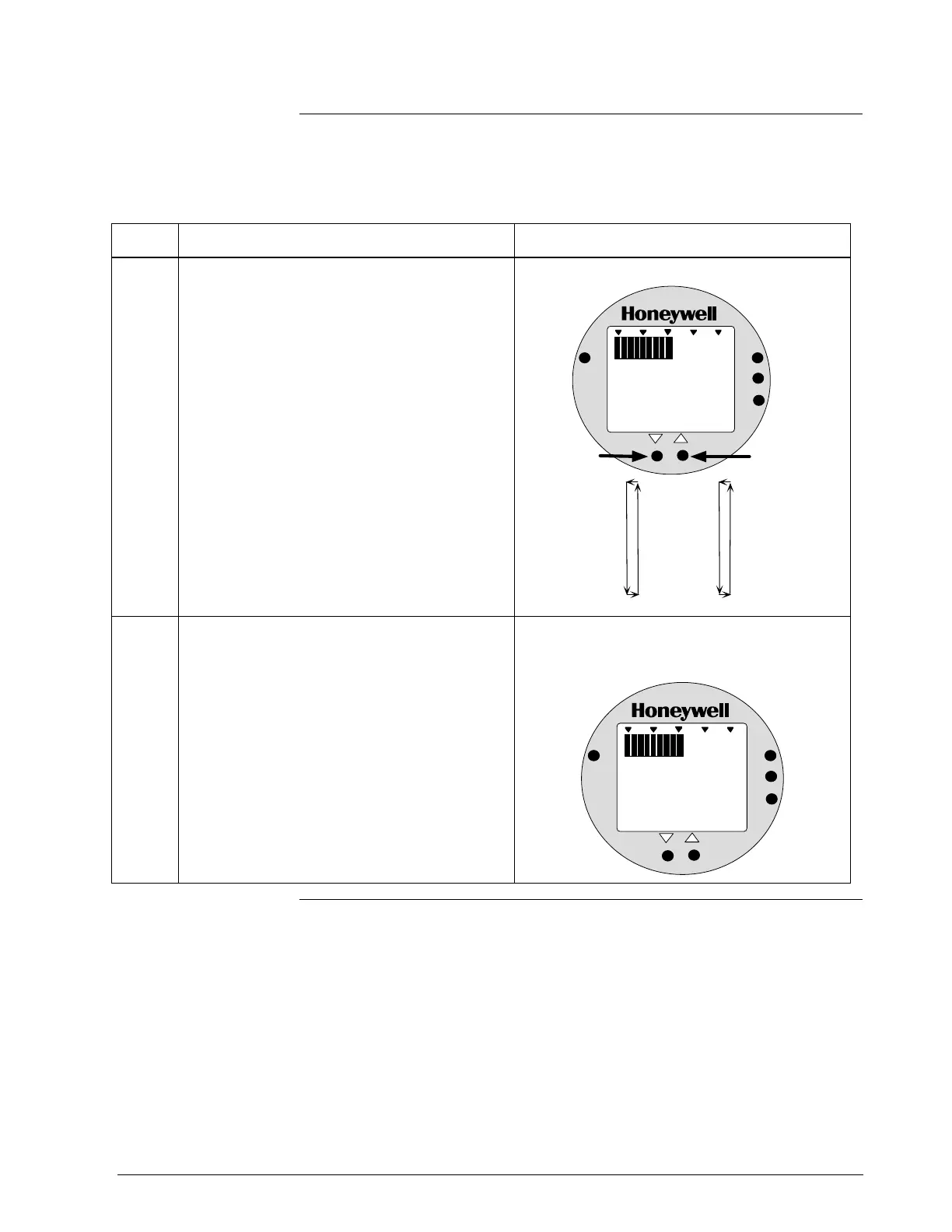

Table A-7 Setting Lower Display Values for Smart Meter Display, continued
Step Action Meter Display
3 Press Increase button to call up next
available magnitude range selection or
Decrease button to call up previous
magnitude range selection.
NOTE: This action enables the multiplier (K)
for indicating larger ranges and shifts
the decimal point of the digital display
left or right depending on which button
is pushed.
The display shows largest
positive number for given range
selection so you can select a range
that is just larger than the
range to be
set for best display precision.
Hold
respective key to scroll forward or
backward through the selections.
Repeat this action until desired selection is on
display.
Magnitude range selections.
%
1000
ANALOG
UPPER
VALUE
UNITS
LOWER
VALUE
SET
VAR
SEL.
19 . 99
19.99
199.9
1999
19.99K*
199.9K*
1999K*
19990K*
Press and hold to
scroll forward
through selections
Press and hold to
scroll backward
through selections
*The "K" multiplier
indicator appears
below the digital
reading on the display.
4 Press LOWER VALUE button to initiate lower
value setting.
Readout goes blank except for first active digit
which will be 0 unless lower value was set
before.
%
1000
ANALOG
UPPER
VALUE
UNITS
LOWER
VALUE
SET
VAR
SEL.
0
Continued on next page
2/05 ST 3000 Release 300 Installation Guide
