Honeywell ST 3000 Installation Guide

A.5 Configuring Smart Meter Using Pushbuttons, Continued
Setting lower display
values, continued

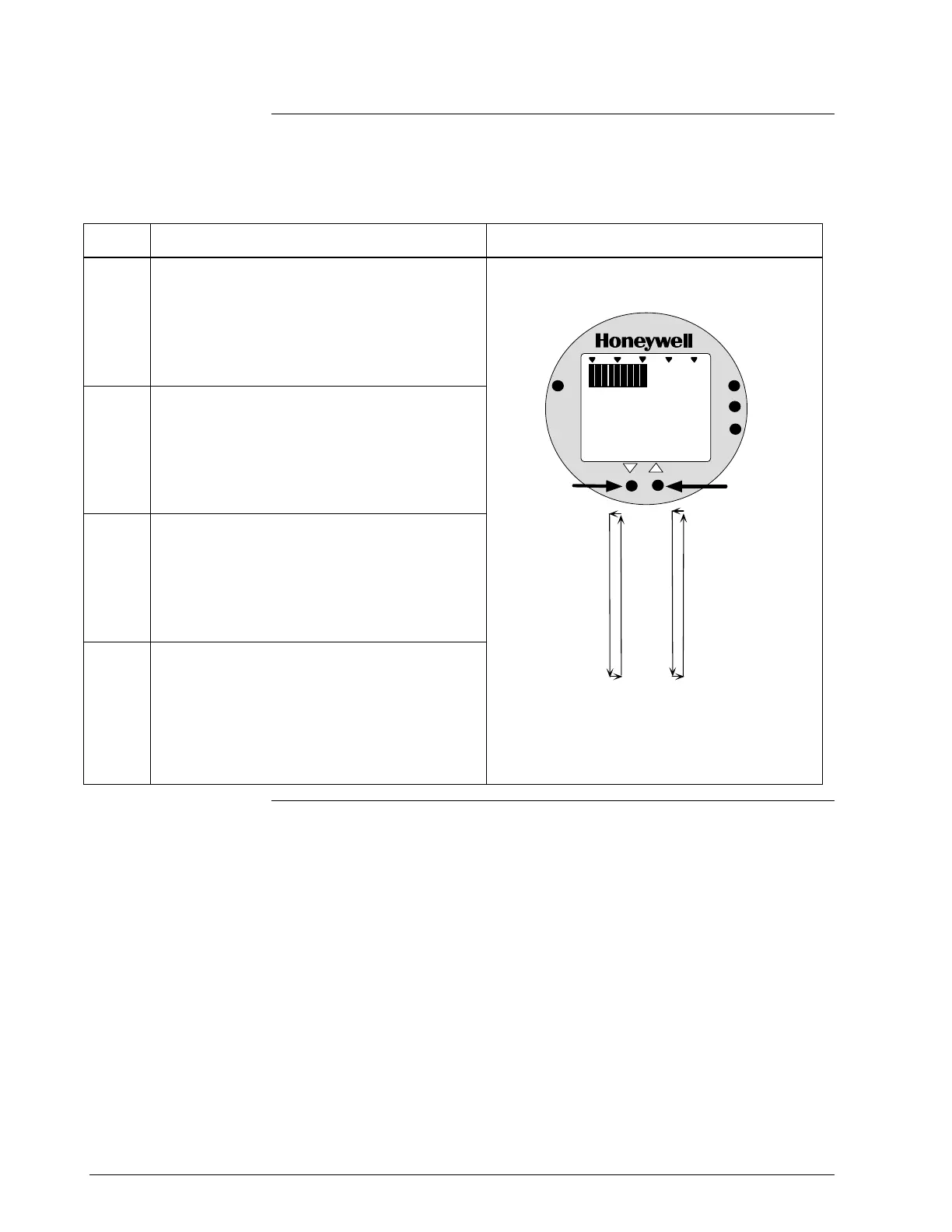

Table A-7 Setting Lower Display Values for Smart Meter Display, continued
Step Action Meter Display
5 Press Increase  button to select the next
available digit value or Decrease  button to
select the previous digit value.
Repeat this action until desired value is on
display.
6 Press LOWER VALUE button to lock-in first
digit and activate next active digit.
Readout now displays next active digit which
will be zero unless lower value was set
before.
7 Press Increase  button to select the next
available digit value or Decrease  button to
select the previous digit value.
Repeat this action until desired value is on
display.
8 Press LOWER VALUE button to lock-in
second digit and activate next active digit.
Readout now displays next active digit which
will be zero unless lower value was set
before.
First digit value setting.
%
1000
ANALOG
UPPER
VALUE
UNITS
LOWER
VALUE
SET
VAR
SEL.
0
0
1
2
3
4
5
6
7
8
9
Press and hold to
scroll forward
through values
Press and hold to
scroll backward
through values
Continued on next page
66 ST 3000 Release 300 Installation Guide 2/05

Honeywell ST 3000 Specifications

General

Manufacturer	Honeywell
Category	Transmitter
Stability	±0.01% of URL per year
Operating Temperature	-40 to 85°C (-40 to 185°F)
Communication Protocol	HART
Housing Material	Aluminum or Stainless Steel
Enclosure Rating	IP66/67, NEMA 4X
Measurement Type	Gauge, Absolute, Differential
Output Signal	4-20 mA, HART
Process Temperature	-40 to 121°C (-40 to 250°F)
Hazardous Area Approvals	FM, CSA, ATEX, IECEx
Process Connection	1/2" NPT
Material	316L Stainless Steel, Hastelloy C
