A.5 Configuring Smart Meter Using Pushbuttons, Continued
Setting Upper Display
Values, continued

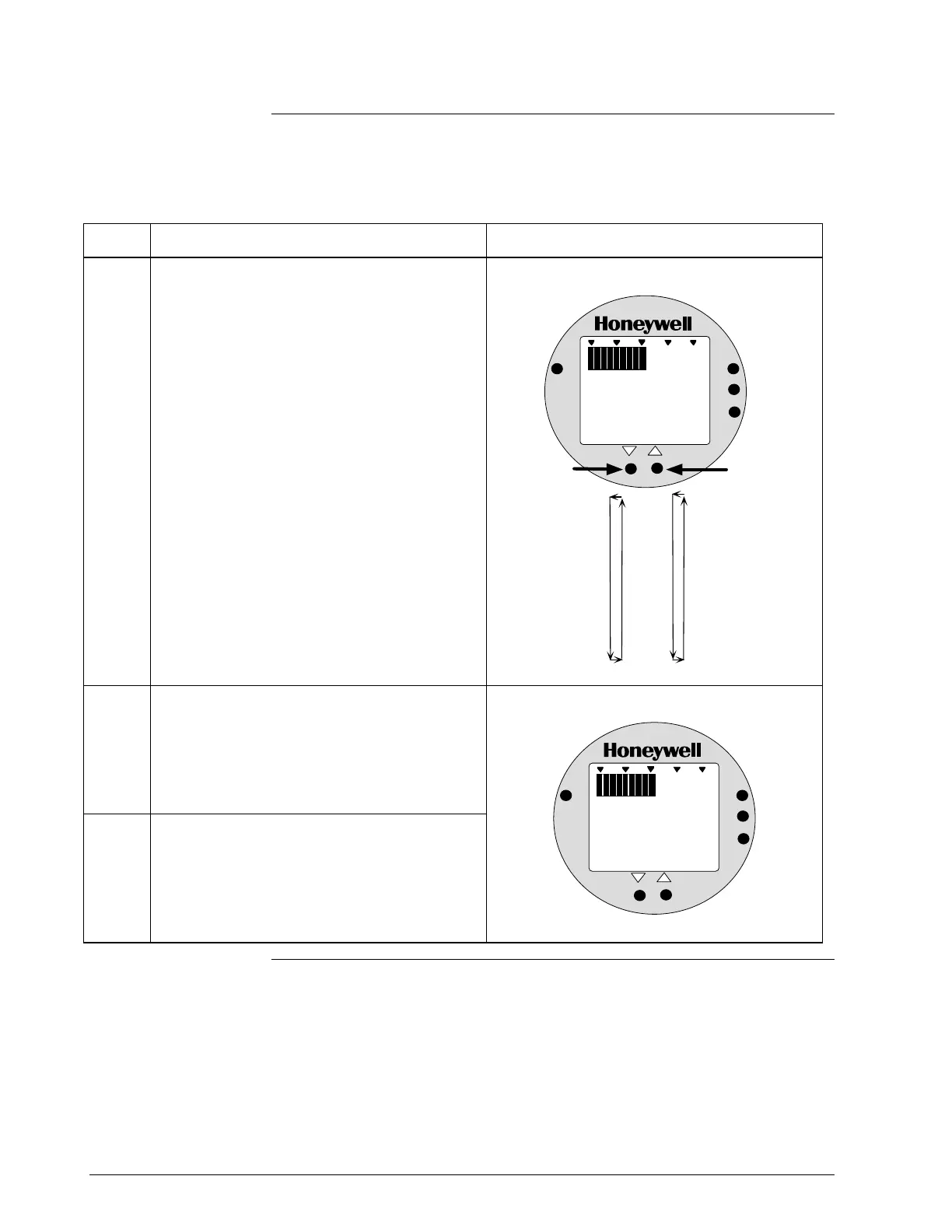

Table A-8 Setting Upper Display Value for Smart Meter Display, continued
Step Action Meter Display
5 Press Increase button to select the next
available digit value or Decrease button to
select the previous digit value.
Repeat this action until desired value is on
display – use 9 for example purposes.
First digit value setting is set to 9.
%
1000
ANALOG
UPPER
VALUE
UNITS
LOWER
VALUE
SET
VAR
SEL.
K
90
0
1
2
3
4
5
6
7
8
9
Press and hold to
scroll forward
through values
Press and hold to
scroll backward
through values
6 Press UPPER VALUE button to lock-in first
digit and activate next active digit.
Readout now displays next active digit which
will be zero unless upper value was set
before.
7 Press Increase button to select the next
available digit value or Decrease button to
select the previous digit value.
Repeat this action until desired value is on
display.
%
1000
ANALOG
UPPER
VALUE
UNITS
LOWER
VALUE
SET
VAR
SEL.
K
090
Continued on next page
