A.5 Configuring Smart Meter Using Pushbuttons, Continued
Setting Upper Display
Values, continued

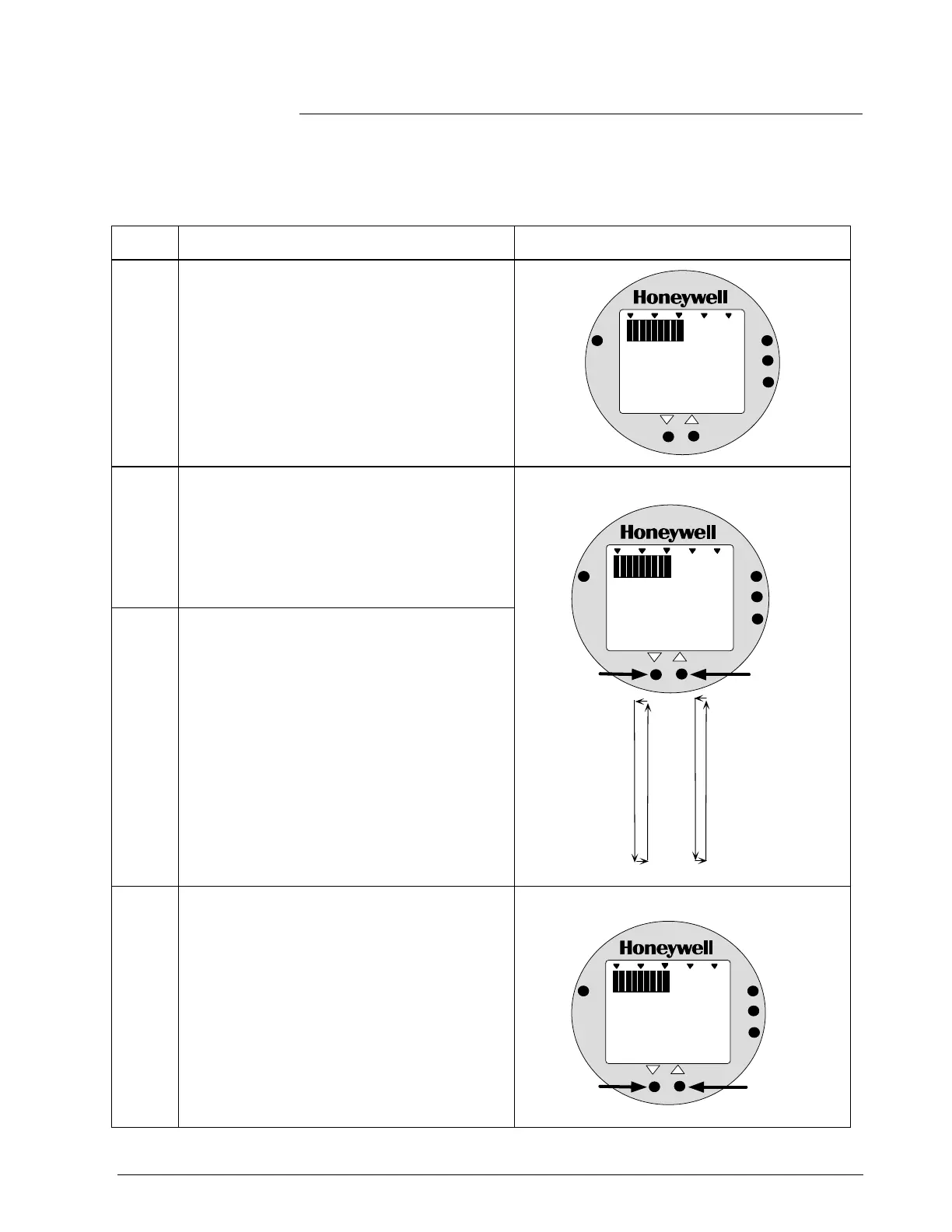

Table A-8 Setting Upper Display Value for Smart Meter Display, continued
Step Action Meter Display
8 Press UPPER VALUE button to lock-in
second digit and activate next active digit.
Readout now displays next active digit which
will be zero unless upper value was set
before.
%
1000
ANALOG
UPPER
VALUE
UNITS
LOWER
VALUE
SET
VAR
SEL.
K
0990
9 Press Increase button to select the next
available digit value or Decrease button to
select the previous digit value.
Repeat this action until desired value is on
display – use 9 for example purposes.
10 Press UPPER VALUE button to lock-in third
digit and activate next active digit.
Readout now displays next active digit which
will be BLANK unless upper value was set to
1 before.
Next digit value setting is set to 9.
%
1000
ANALOG
UPPER
VALUE
UNITS
LOWER
VALUE
SET
VAR
SEL.
K
9990
0
1
2
3
4
5
6
7
8
9
Press and hold to
scroll forward
through values
Press and hold to
scroll backward
through values
11 Press Increase button to set digit to 1 or
Decrease button to set it to BLANK.
“1” digit value setting is set to 1.
%
1000
ANALOG
UPPER
VALUE
UNITS
LOWER
VALUE
SET
VAR
SEL.
K
9990
Press to set "1"
digit as 1
Press to set "1"
digit as BLANK
1
Continued on next page
2/05 ST 3000 Release 300 Installation Guide
71
