SAFETY
Touchpoint Pro
Pt. No. 2400M2566_1_EN 8 Operating Manual
2.2 Location and Description of Warning Labels

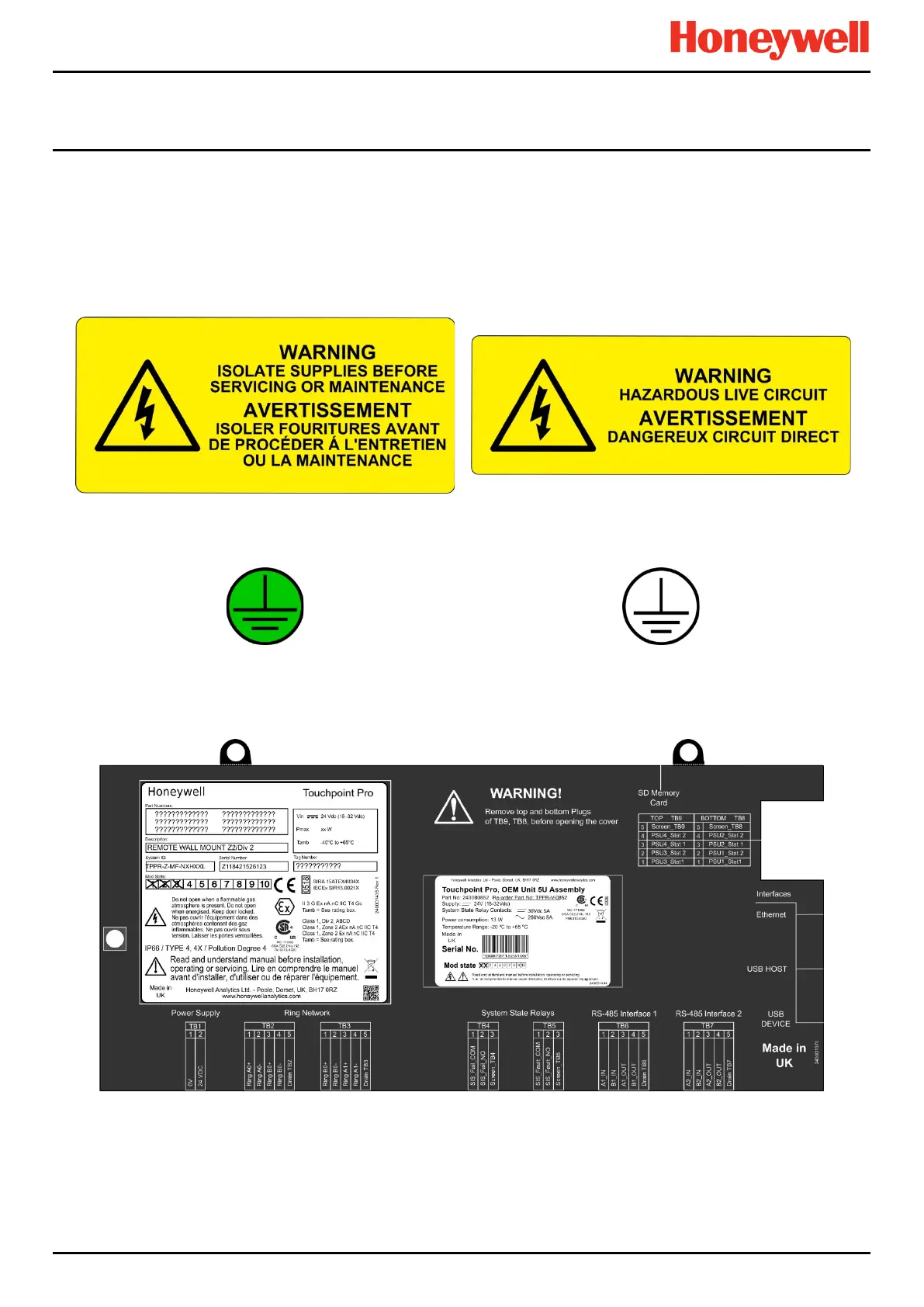

2.2.1 Safety Warning Labels
Warning labels are mounted in specified locations on the equipment. This is to indicate conditions under which the user
could be subjected to electrical or other hazards.
Figure 1. Electrical Warning Label 1 Figure 2. Electrical Warning Label 2
Figure 3. Protective Earth (Ground) Point Figure 4. Equipment Earth (Ground) Point
Note: Earth (Ground) Location Point labels are used inside the system and are not normally visible to the operator.
Figure 5. Controller Rear Cover with Example Labels
See next page for further information.
