About the System (cont'd)
5

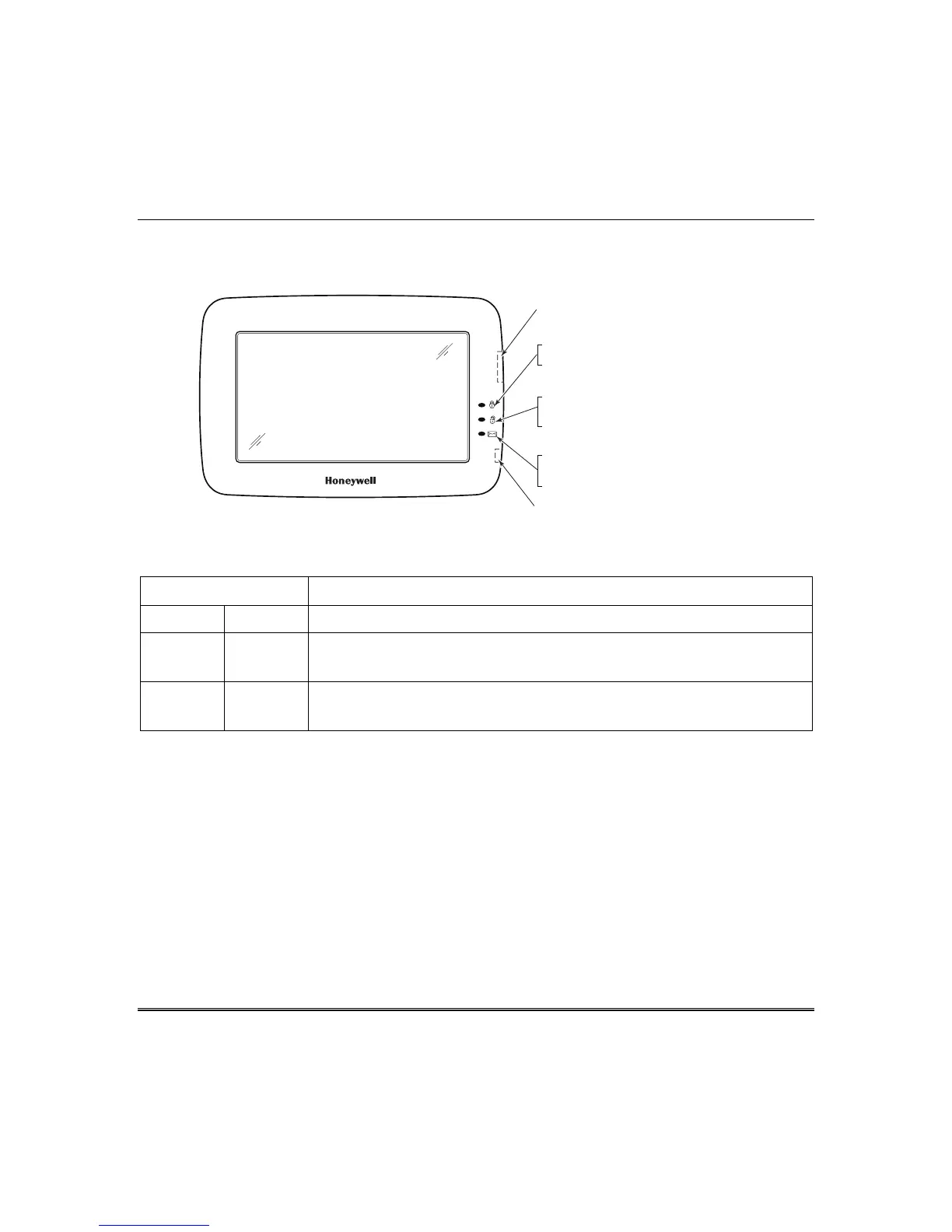

LED Operation
The Tuxedo has three LEDs as follows:
6280-001-V0
FLASHING – The system contains new
message(s) for the User.
OFF – No new messages.
RESET BUTTON
Press to reset keypad
ON – System is armed.
OFF – System is not armed.
ARMED (RED) LED
READY (GREEN) LED
ON – System is disarmed and ready to arm.
OFF – System is armed or disarmed but not
ready. If disarmed, faults or troubles are present.
MESSAGE (YELLOW) LED
SD/SDHC CARD Slot
If using Occupancy mode the LEDs are as follows:
LEDs FUNCTION
COLOR STATUS Automation (Occupancy) Mode
RED ON
Residential mode = system is set to AWAY or NIGHT.
Commercial mode = system is set to CLOSE or NIGHT.
GREEN ON Residential mode = system is set to HOME.
Commercial mode = system is set to OPEN.
Screen Blackout (EN50131 Display)
The Screen Blackout feature prevents unauthorized users from viewing the status of the Security
System by returning to the Home screen and turning off the Armed and Ready status LEDs.
When the EN50131 Display is turned ON:
• The keypad returns to the "Home" screen after 30 seconds; "Armed" and "Ready" LEDs turn OFF.
• The "To Homepage After" time setting changes to 30 seconds and the time is non-selectable.
• The “Auto Slideshow After” is preset to “1” minute and cannot be changed.
• The Security, Message and Lighting screen does not display system status until an authorized
user code is entered.
• The "Setup" menu does not display system status until an authorized user code is entered.
•
Videos cannot be played.
