Connecting with RS232 Serial Port
1. Turn off power to the terminal/computer.
2. Connect the appropriate interface cable to the scanner.
Note: For the scanner or base to work properly, you must have the correct cable for your type of terminal/computer.
3. Make sure the cables are secured in the wireways in the bottom of the base and that the base sits flat on a horizontal
surface.
4. Plug the serial connector into the serial port on your computer. Tighten the two screws to secure the connector to the
port.
5. Once the scanner or base has been fully connected, power up the computer.
The RS232 Serial Port defaults to 9600 baud, 8 data bits, no parity, and 1 stop bit.

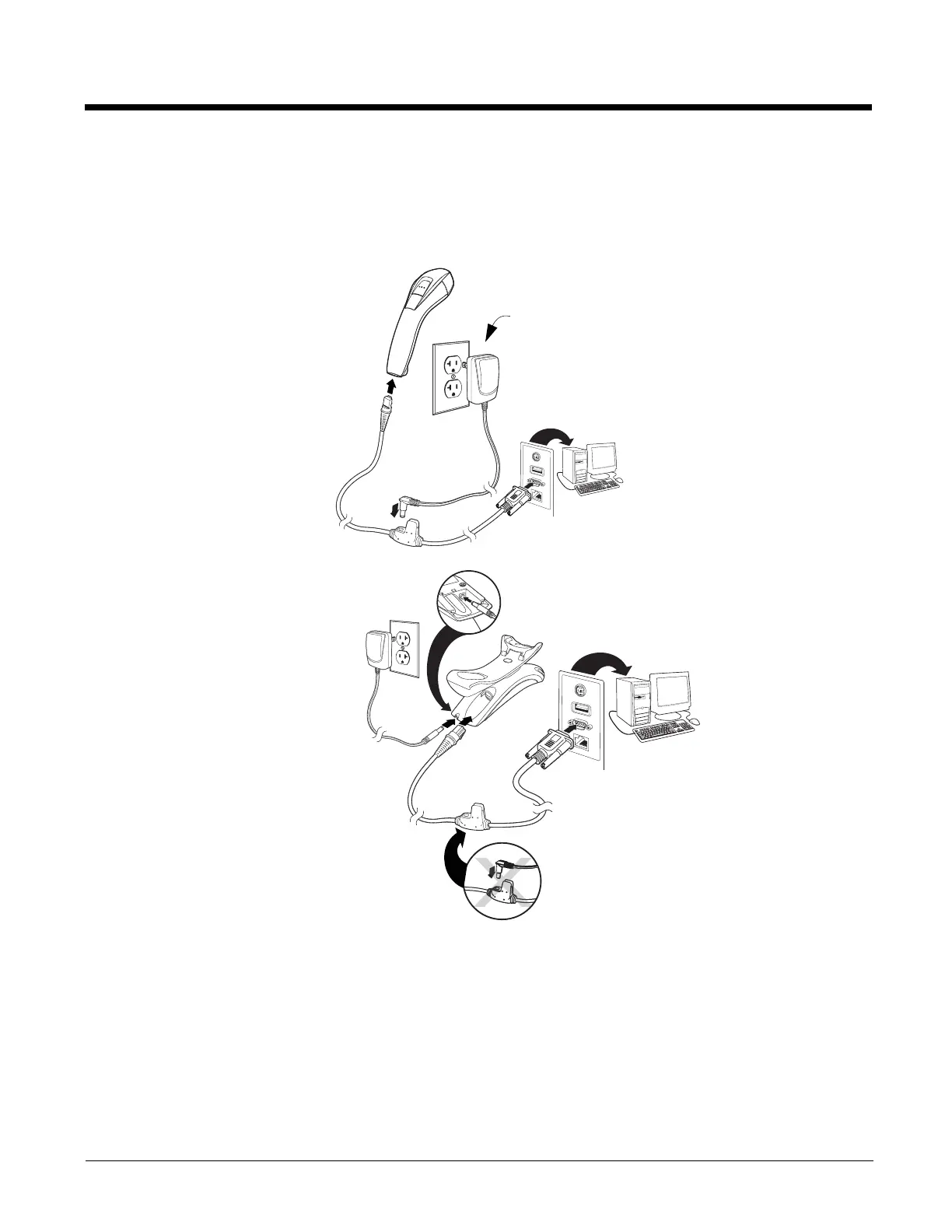

only if
power
supply is
included
Charge and
Communications
Base RS232
Serial Port
Connection:
