10 Xenon XP User Guide
Mount a CCB01-010BT/CCB01-010BT-BF Charge Base
Mount a CCB-H-010BT/CCB-H-010BT-BF Charge Base

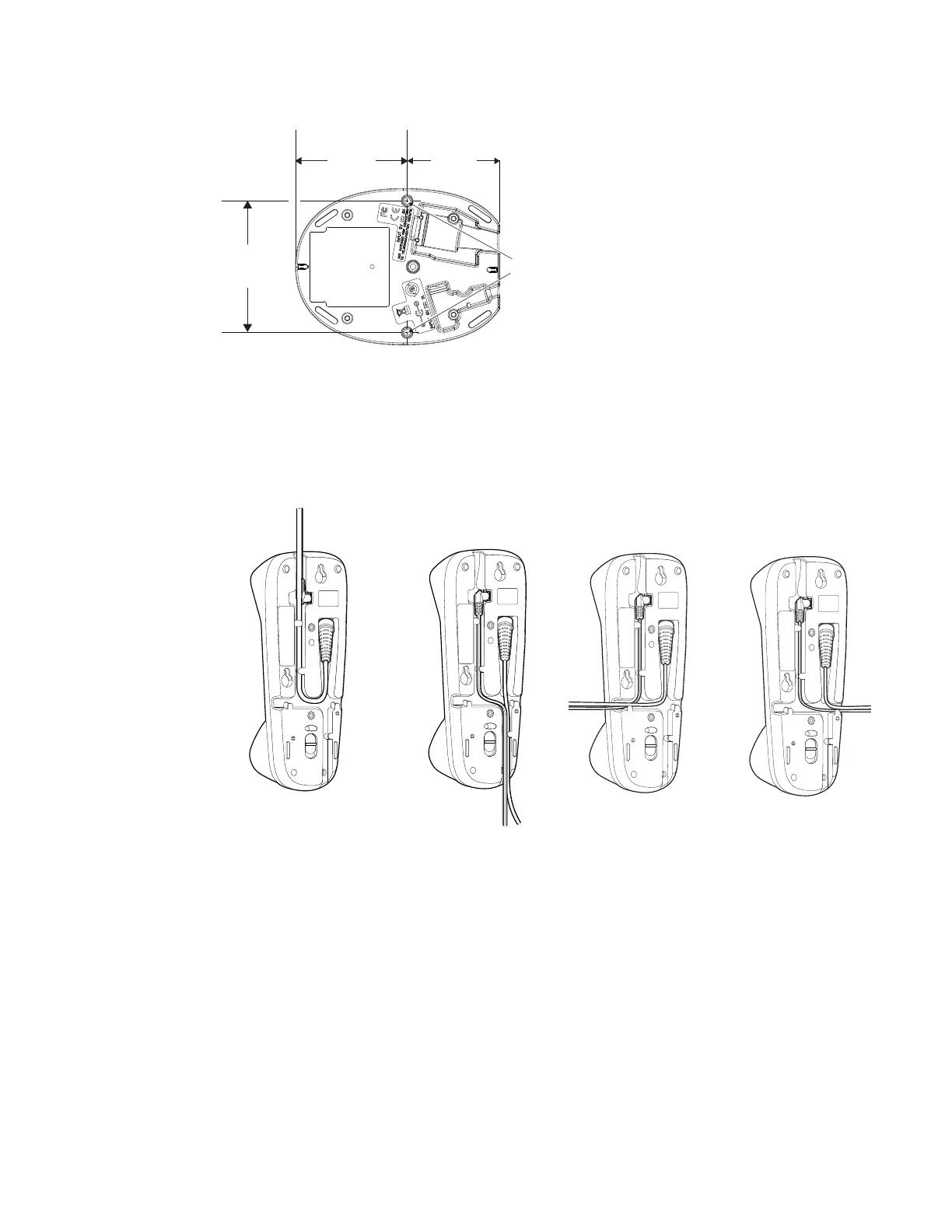

The CCB-H-010BT/CCB-H-010BT-BF Base can be mounted on either a horizontal
or vertical surface. Route the cables through the top, bottom, or sides of the base
and secure the cables in the wireways.
When mounted on a vertical surface, a locking system is used to secure the
scanner when it is in the stand. When mounted on a horizontal surface, the locking
mechanism should be set to unlocked (pushed down). When mounted on a vertical
surface, the locking mechanism should be set to locked (pushed up).
8x32 thread
x .39 in. (10mm) deep
2.36 in.
59.84mm
3.35 in.
85.09mm
2.8 in.
72.1mm
