Honeywell Xenon XP 1952g - Horizontal Mount

Xenon XP User Guide 11
Use 30mm screws, appropriate for the mounting surface material, to mount the
base securely.

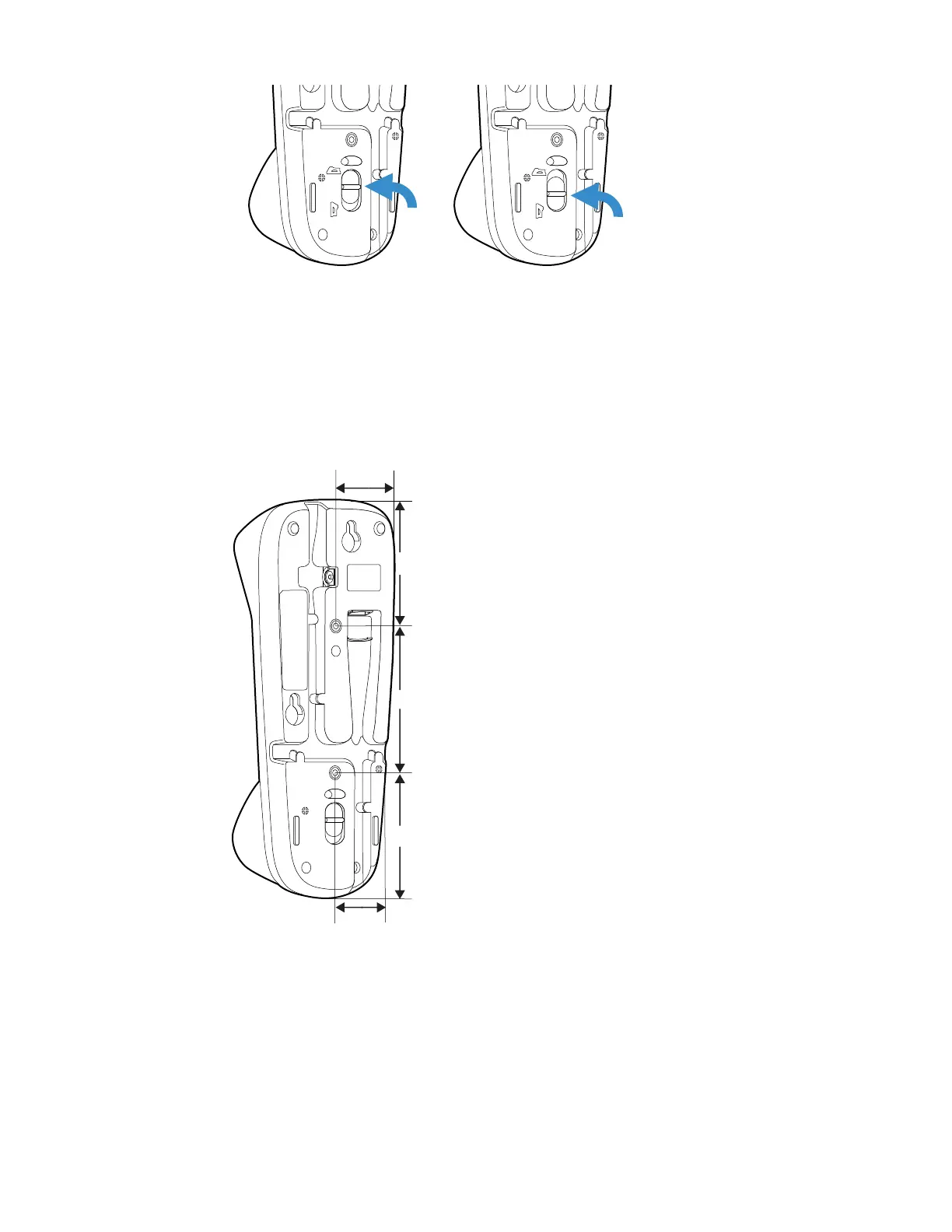

Horizontal Mount
Unlocked position for
horizontal mount
Locked position for
vertical mount
85.1mm (3.35")
72.37mm (2.85")
72.97mm (2.87")
43.97mm (1.73")
43.97mm (1.73")
