FAASTFLEX FAAST FLEX Product Guide
www.xtralis.com 4
2 Product Information
2.1 Detector Components

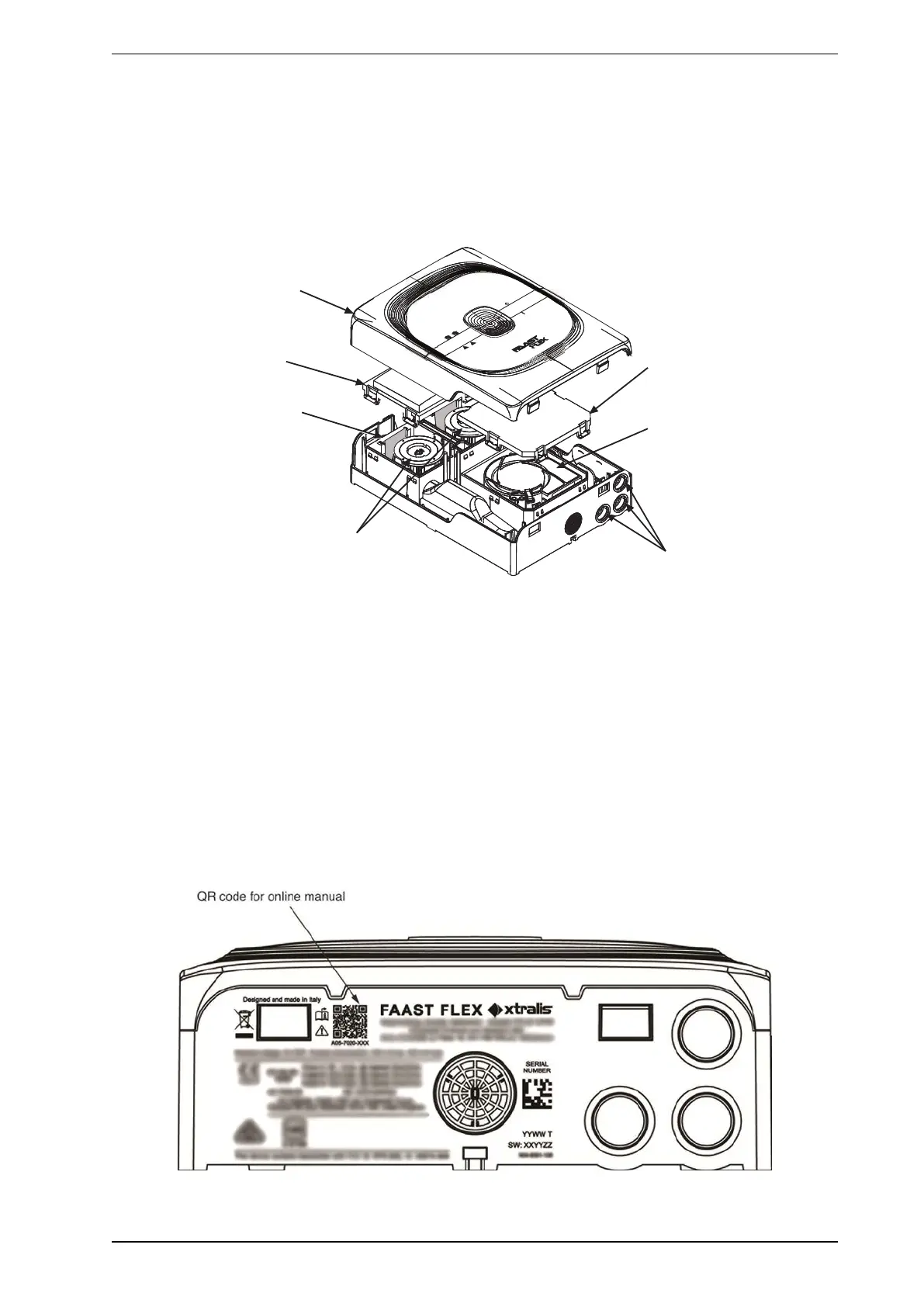

Figure2-1 shows the major components of the FAAST FLEX. The FAAST FLEX is available in 1 Channel and
2 Channel models. For simplicity, the double Channel version is shown in illustrations in this manual unless
there is an important difference between the two models.
COVER
ASPIRATOR
S
ENSORS
SENSOR
COVER
CABLE
P
ORTS
FILTER
SCREEN
ASPIRATOR
COVER
Figure2-1: Detector Components
2.2 General Information
Figure2-2 shows the information label on the FAAST FLEX. There is a QR code that can be scanned to
access the online manual, and a barcode that can be scanned to access the model and serial number.
Power Requirements
The device requires an external 24 VDC power supply. In order to meet EN54-20 standard, the aspirating
detector shall be supplied by a power supply complying with European Standard EN54-4. Operational Power
Supply range is 18-30V. The device monitors the power supply and when supply voltage drops below 21V the
device gives a LOW POWER alert (POWER LED shows steady RED). Moreover, the device has a brown-out
circuit, which operates nominally at 17V. In this condition the device switches to POWER OUT OF RANGE
state and activates fault relays. When the device is turned off by brown-out hardware circuit, the fault relays
remains activated.
Figure2-2: FAAST FLEX Product Information
